General Vehicle Lifting and Jacking

Jack and safety stand positions

Front end

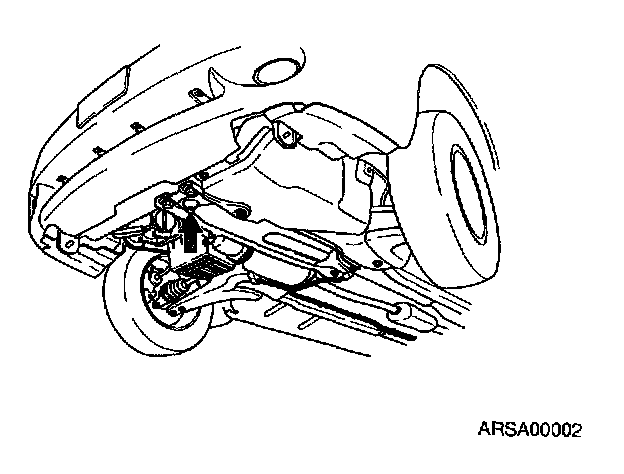

Jack position:
At the front subframe

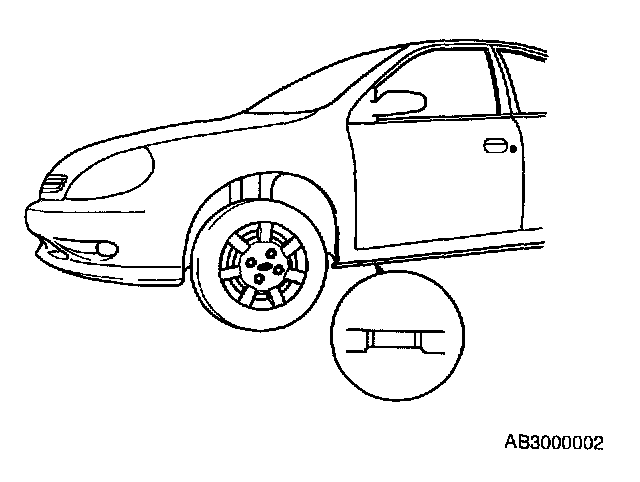

Safety stand positions:
On both sides of the side sills

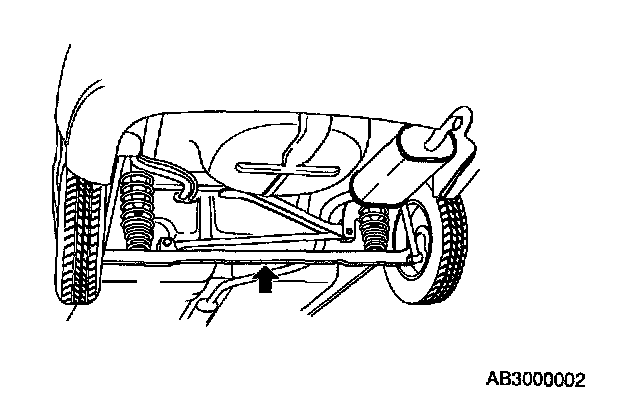

Rear end Jack position:
At the center of the rear crossmember

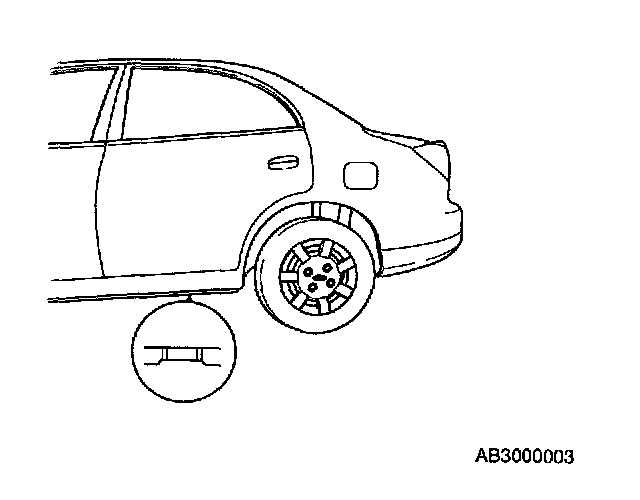

Safety stand positions:
On both sides of the side sills
