Rear Seat

4 DOOR

Removal

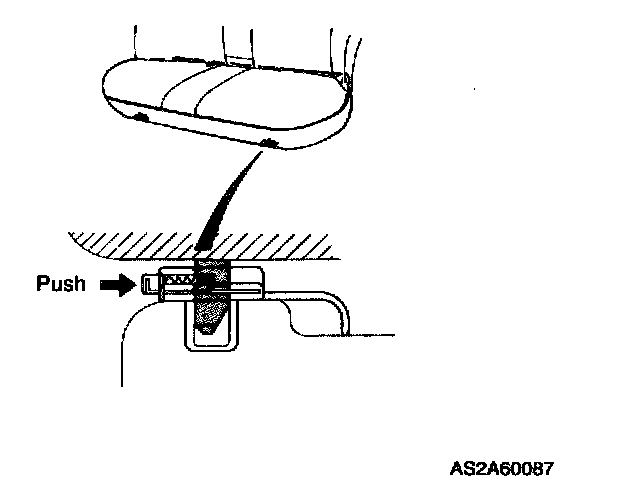

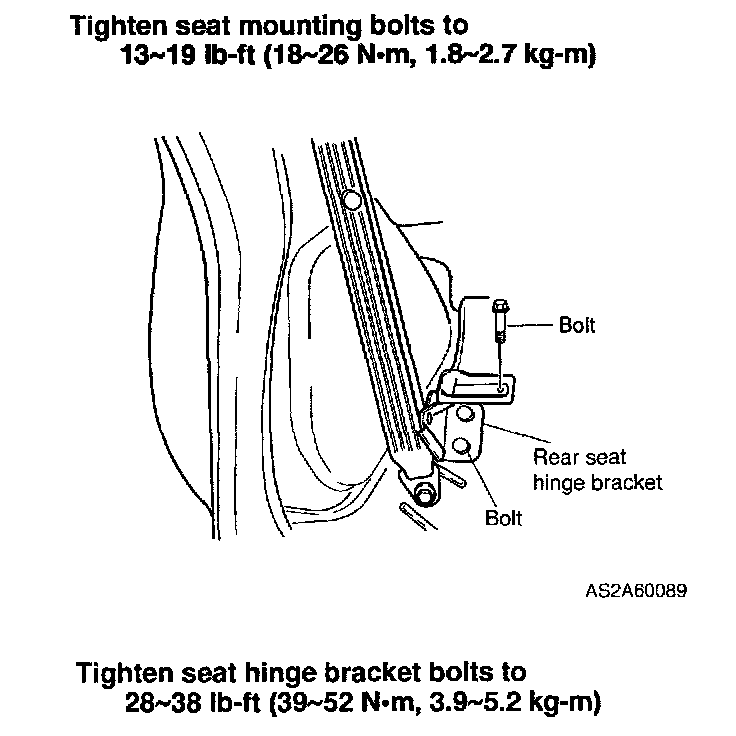

1. Push lock buttons as shown in figure to release cushion, then pull seat cushion out.

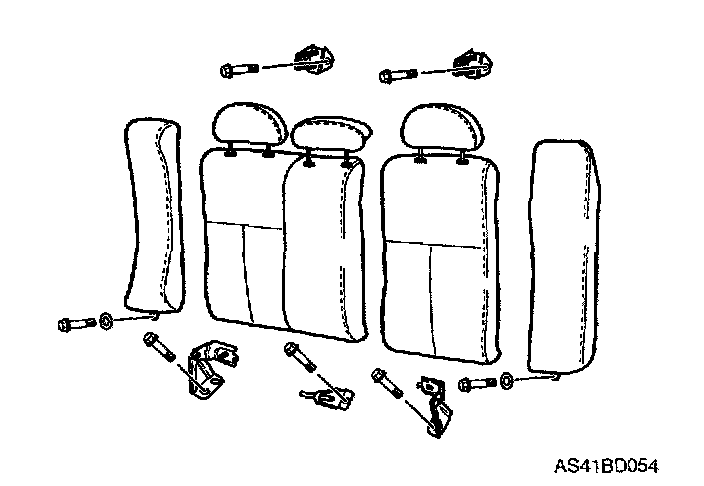

2. Remove one mounting bolt from left side bolster.




3. Remove left side bolster.
4. Push lock button and fold seatback.
5. Remove one mounting bolt from back side of left seatback.
6. Remove left seatback.




7. Repeat for right side.




Installation
Reverse removal procedures.

5 DOOR

Removal

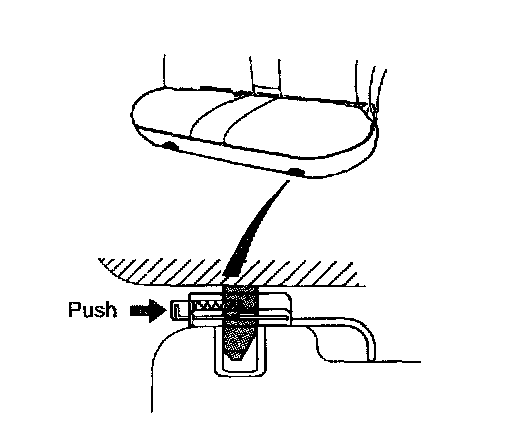

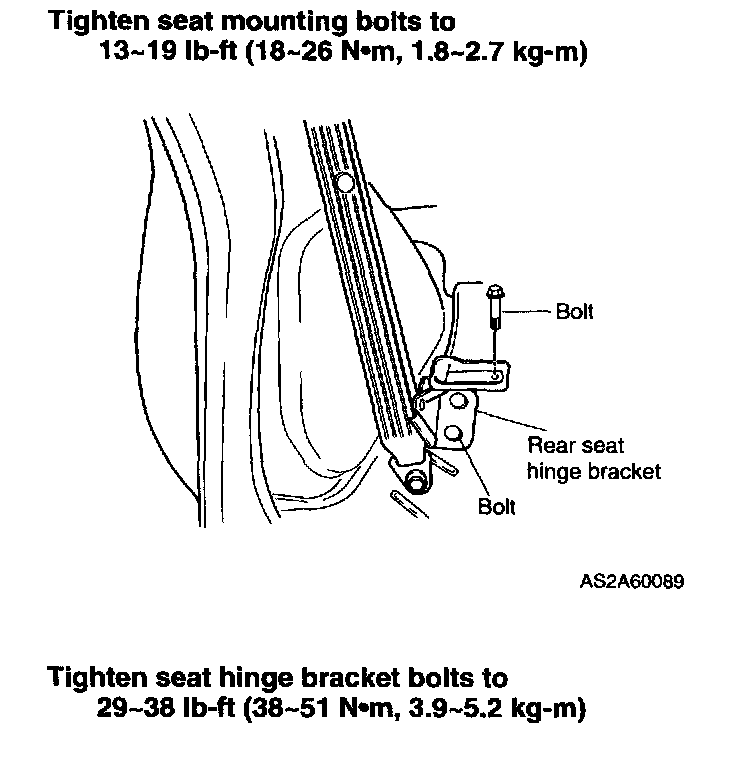

1. Push lock buttons as shown in figure to release cushion, then pull seat cushion out.

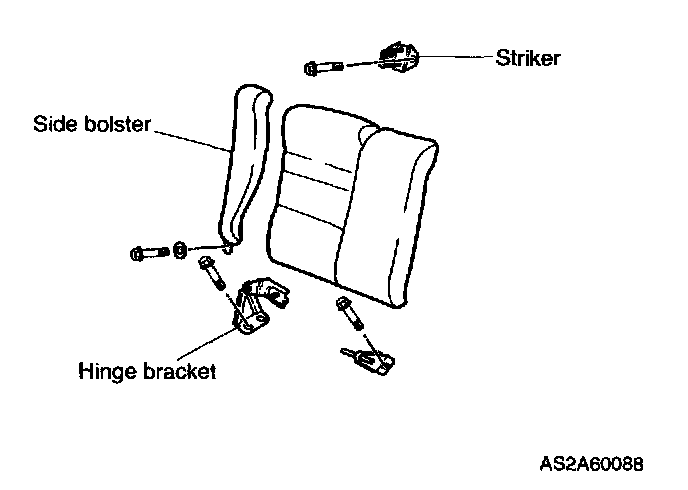

2. Remove one mounting bolt from left side bolster.




3. Remove left side bolster.


4. Push lock button and fold seatback.
5. Remove one mounting bolt from back side of left seatback.
6. Remove left seatback.




7. Repeat for right side.




Installation
Reverse removal procedures.
