Seats: Service and Repair

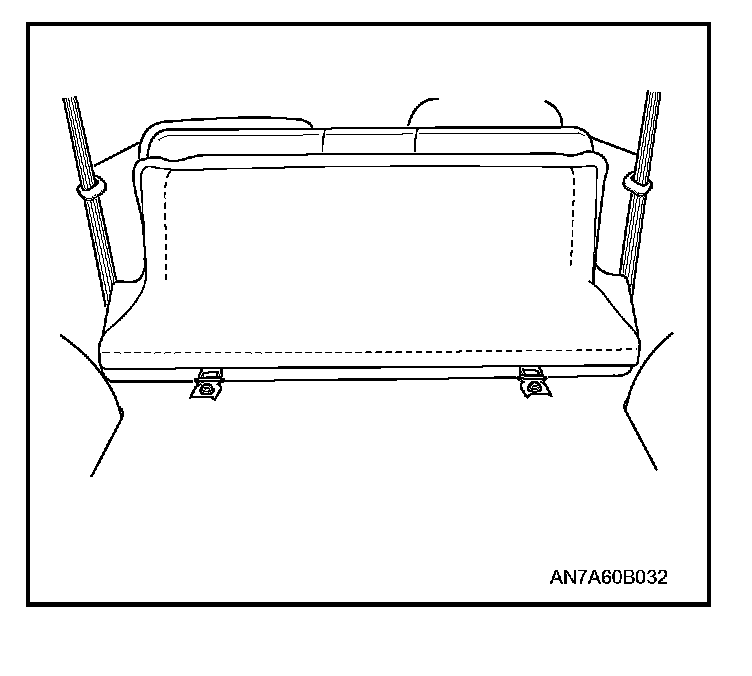

REAR SEAT / 2 DOOR

Removal

1. Slide the front seats forward(if not removed).
2. Remove two mounting bolts forward.
3. Pull the lock knobs and fold the rear seat down.
4. Rotate the seat forward.
5. Remove two mounting bolts backward.
6. Remove rear seat assembly through the back door.

Installation
- Install rear seat in the reverse order of removal.
