Control Assembly: Testing and Inspection

BUTTON LOGIC

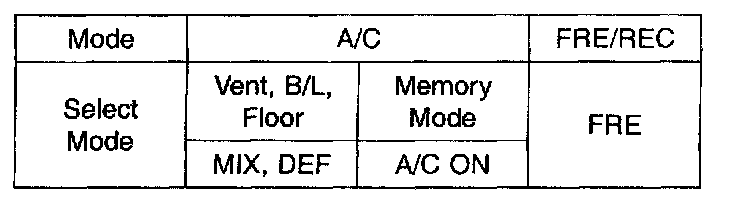

1. IG ON

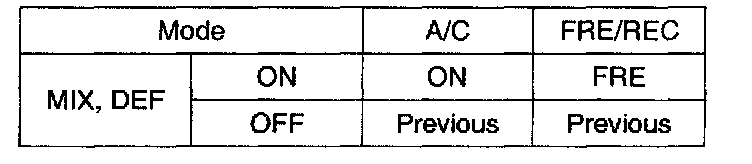

2. DEF Logic
- To be possible to select A/C on/off & FRE/REC at Mix/Def mode.
- To be impossible to enter mix/def logic again when start mix<->def.

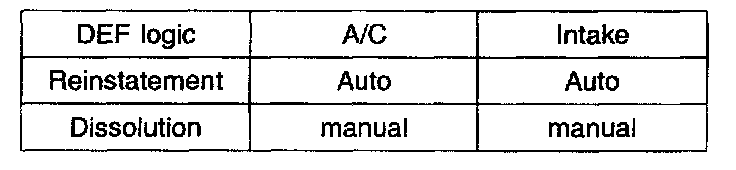

3. Dissolution & reinstatement of MIX/DEF LOGIC
1. Turn the blower switch off.
2. Select the mode switch to the DEF
3. Press the intake button more than 5 times within 3 seconds during pressing the A/C button
4. Intake button indicator blinks three times per 0.5 second
5. Complete dissolution & reinstatement of function.
6. A/C and intake controls a previous condition. when IG on.




7. Operating logic.
