Power Steering Fluid Leakage
Power steering fluid leakage1. Clean the outside of the steering gear, the bottom surfaces of the power steering pump, and all lines and fittings. Be sure all dirt, oil, and grease is removed from areas where leaks may exist.
2. Start engine.
3. Remember to turn steering wheel fully left and right to build fluid pressure.
4. Check for fluid leakage.
Notice:
a) To prevent damage, do not keep steering wheel fully turned for more than 15 seconds.

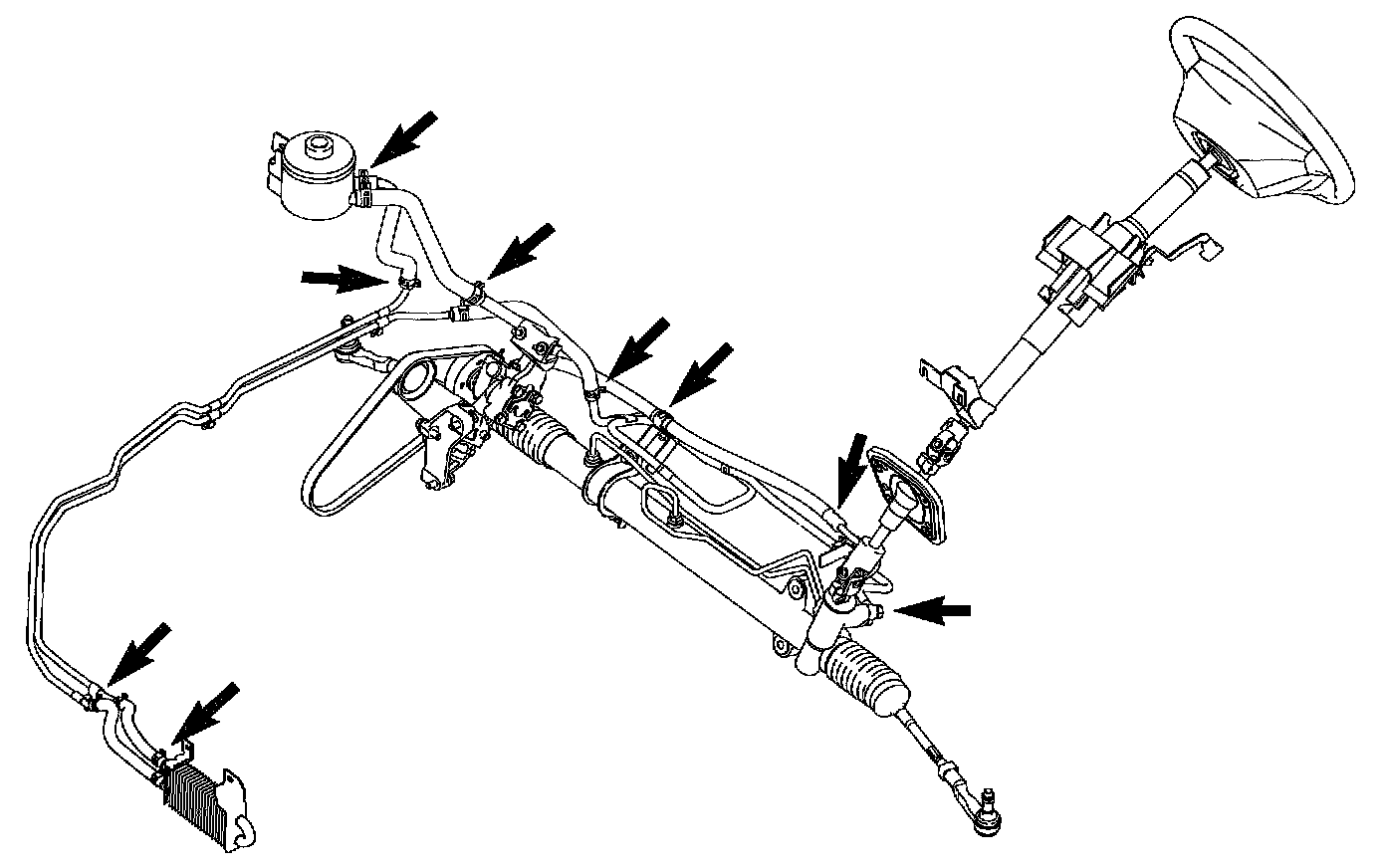

b) Points where fluid leakage might occur are indicated by arrows in figure.
