Solenoid Valve Checking
SOLENOID VALVE CHECKING 1.
Remove the valve body cover.
2.

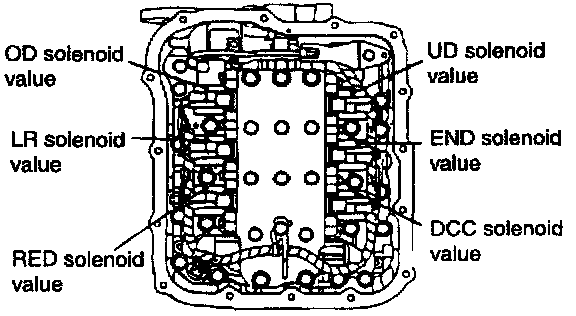

Disconnect the connectors of each solenoid valve.

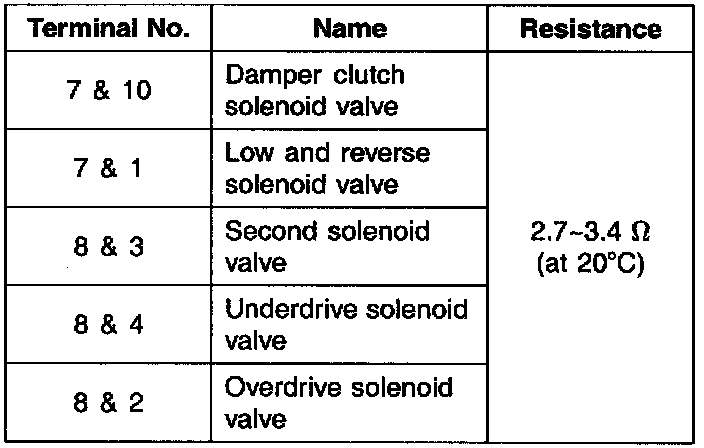

Standard value (at 20°C):
2.7 - 3.4 Ohms 3.
If the resistance is outside the standard value, replace the solenoid valve.
4.

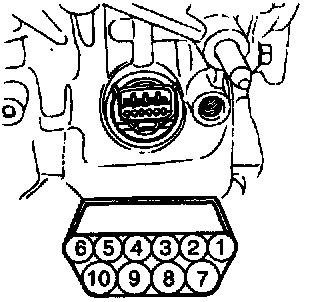

Measure the resistance of the solenoid valve.
