Removal and Replacement
Outside Rear View Mirror:
REMOVAL AND INSTALLATION 1.
Disconnect negative battery terminal.
2.
Remove door
frame inner cover.
3.

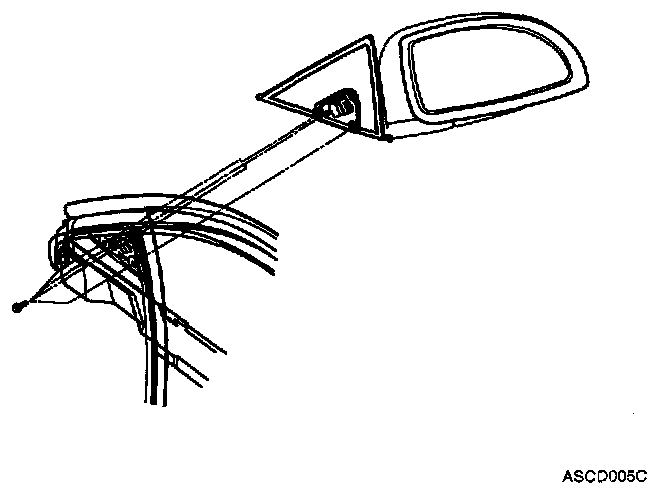

Remove outside rearview mirror.
1.
Remove outside rearview mirror screws(3).
Tightening torque:
7 - 11 N.m (0.7 - 1.1 Kg.m, 5.1 - 8.0 Ib.ft) 2.
Remove outside rearview mirror clip(1).
3.
Disconnect mirror connector.
4.
Install in reverse order of removal.
