Front Seat

Front Seat:

REMOVAL AND INSTALLATION

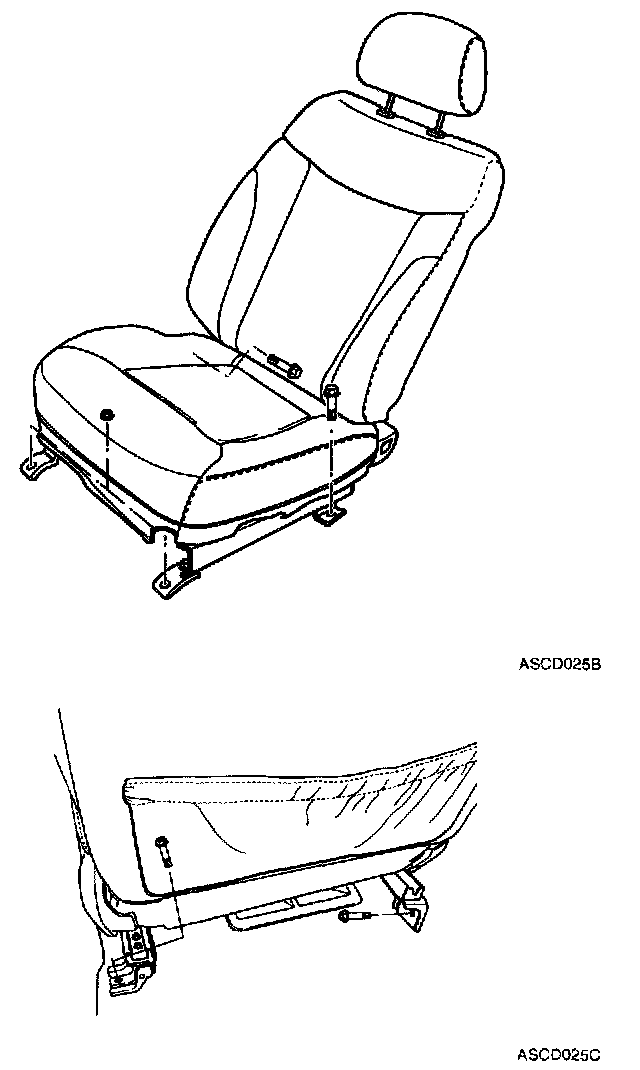

1. Remove seat bolts(2) and nuts(2).

Tightening torque:
45 - 551M - m (4.5 - 5.5 Kg.m, 32.5 - 39.8 Ib.ft)

2. Disconnect seat connector.
3. Install in reverse order of removal.
