Removal

FRONT DISC BRAKE
REMOVAL

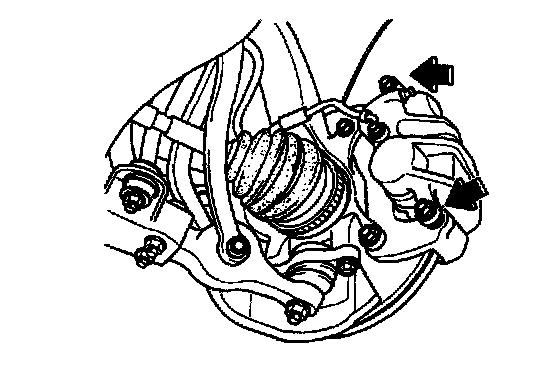

1. Remove the guide rod bolt, lift the caliper assembly up and suspend it with a wire.

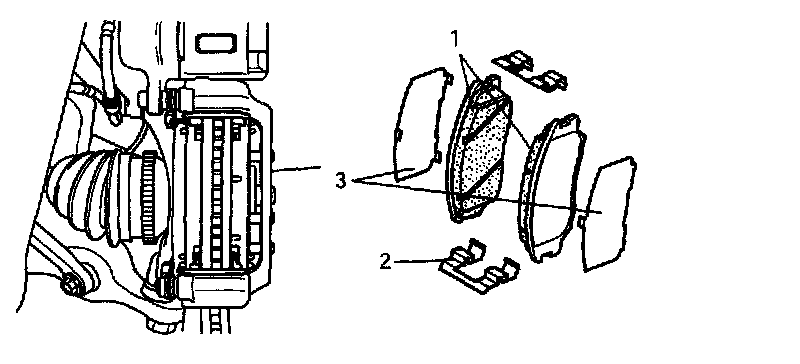

2. Remove the following parts from the caliper carrier.
1) Pad and wear sensor assembly
2) Pad spring
3) Outer shim
