Front Brake Disc Runout Check
FRONT BRAKE DISC RUNOUT CHECK 1.

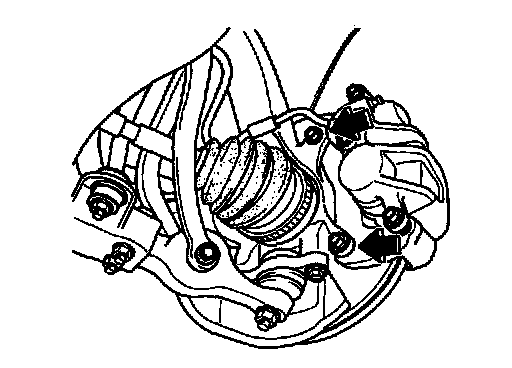

Remove the caliper assembly to the knuckle and suspend with a wire.
Tightening torque:
69 - 85 Nm (6.9 - 8.5 kg-m, 49 - 61 ft. lbs.) NOTE: Do not remove the brake hose.
2.

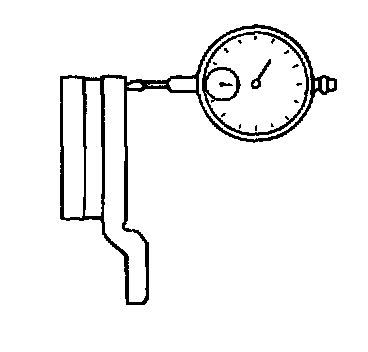

Place a dial gauge about
5 mm (0.2 inch) from the outer circumference of the brake disc, and measure the run out of the disc.
Brake disc run out
Limit:
0.03 mm (0.0012 inch) or less
