Engine Control Module

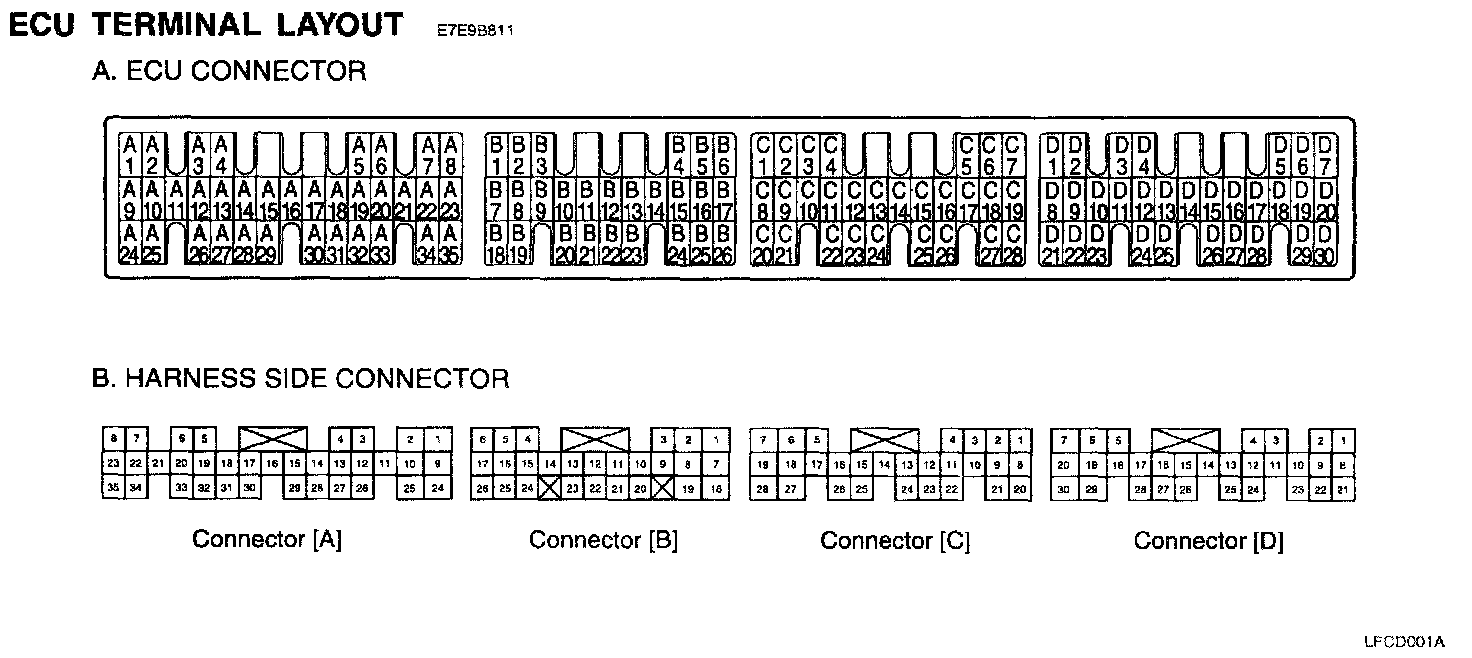

ECU TERMINAL LAYOUTECU Terminal Layout:
1.
ECU CONNECTOR
2.
ECU TERMINAL FUNCTION
Connector A - (A1 - A17):

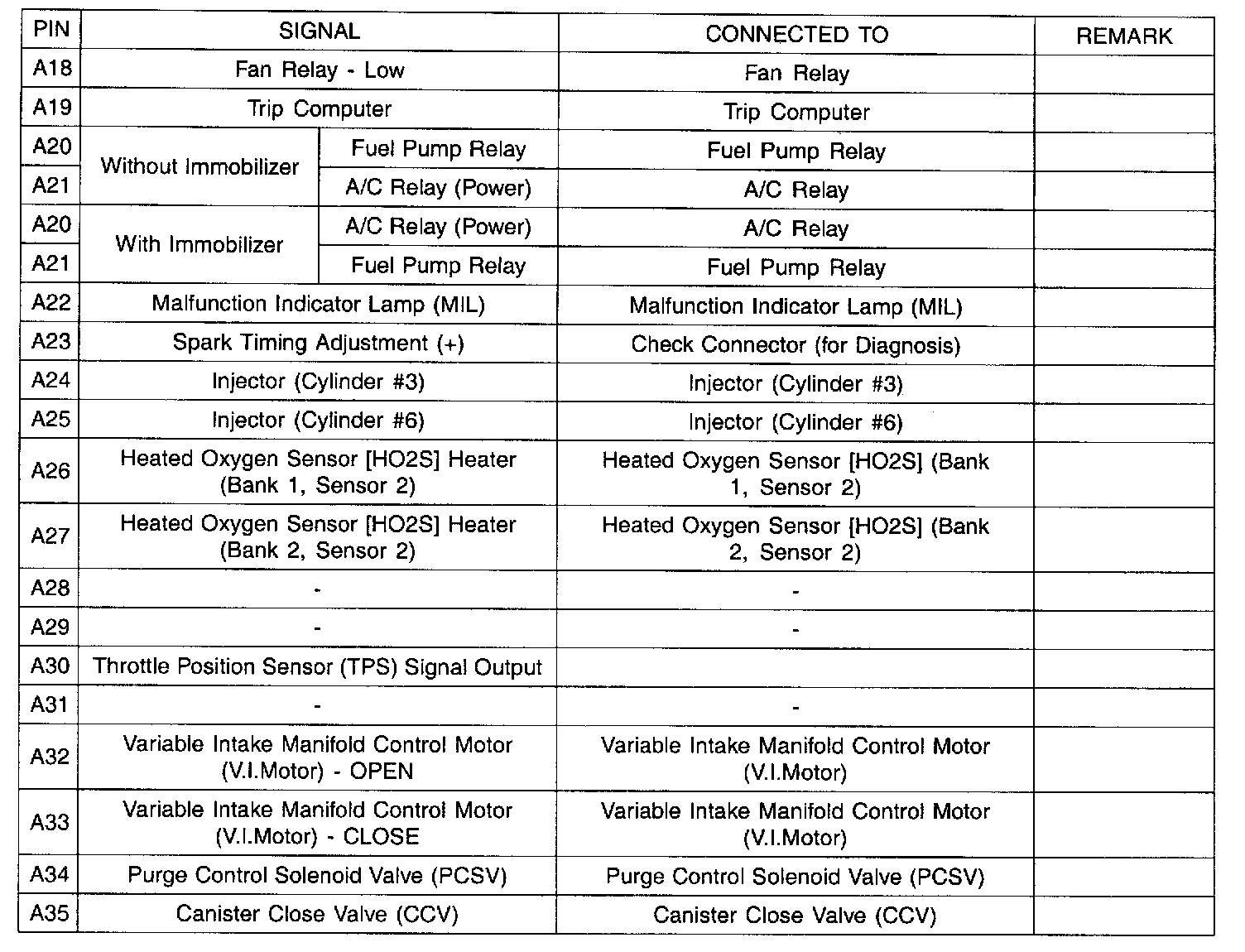

Connector A - (A18 - A35):

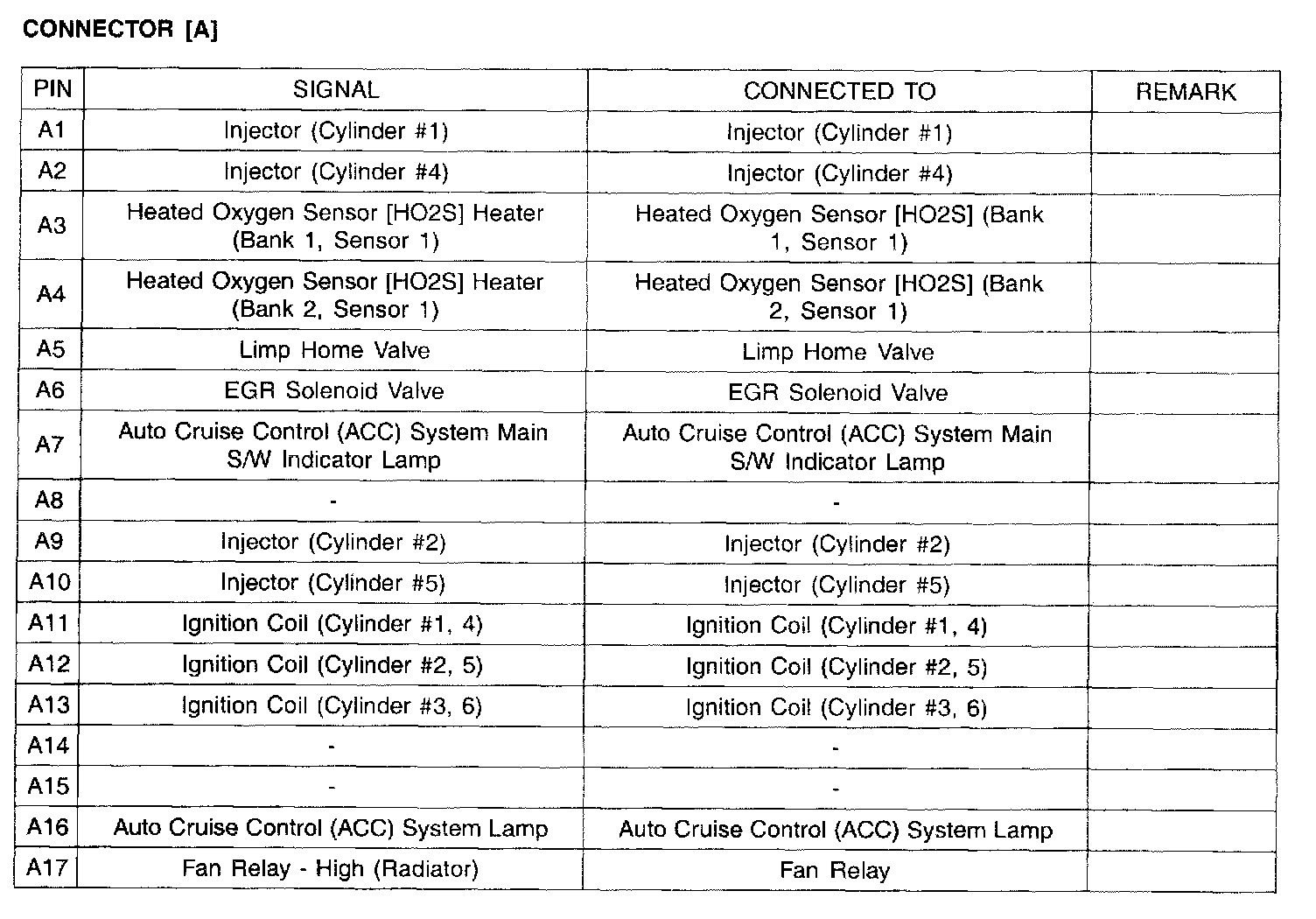

CONNECTOR [A]
Connector B - (B1 - B12):

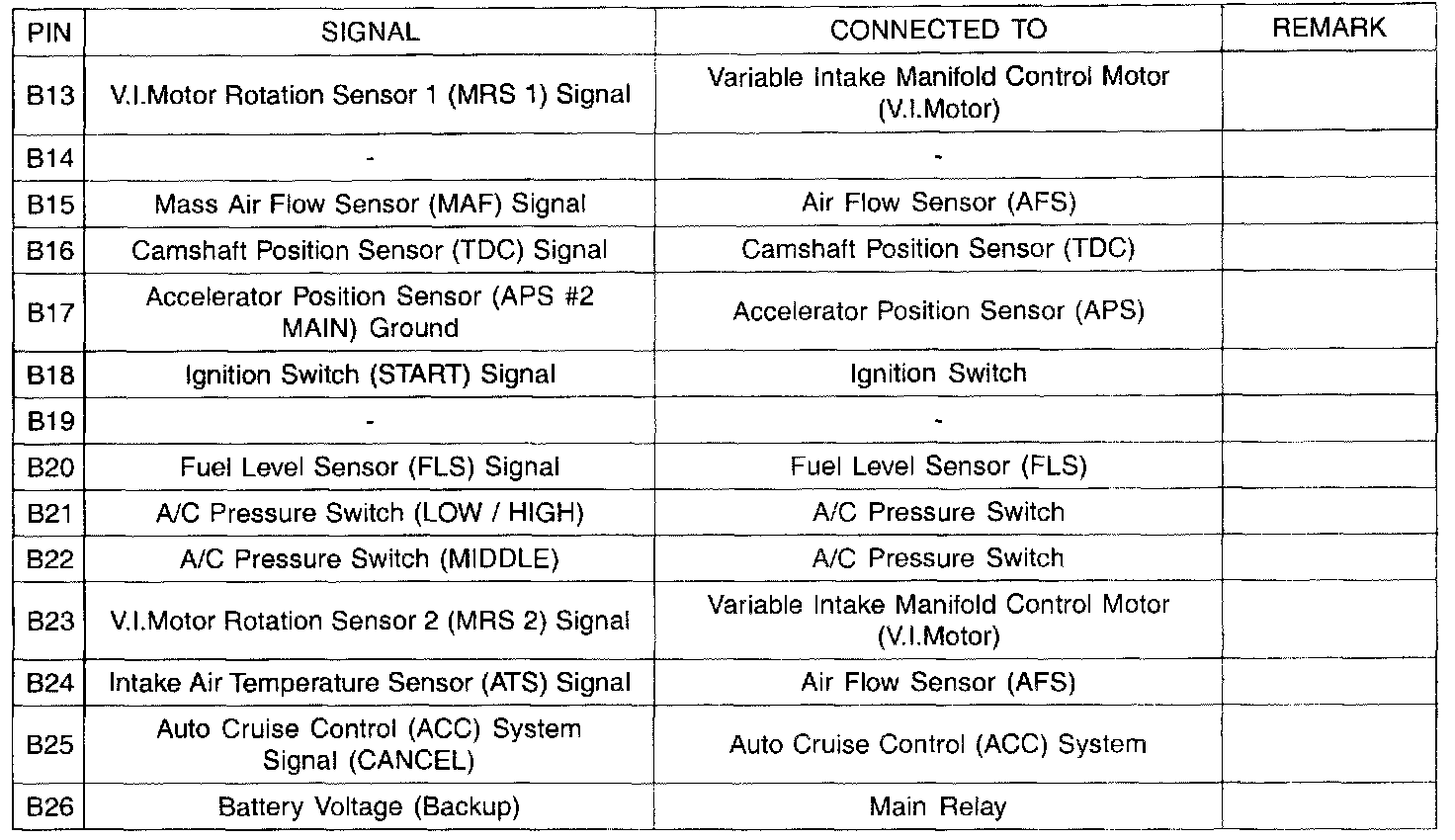

Connector B - (B13 - B26):

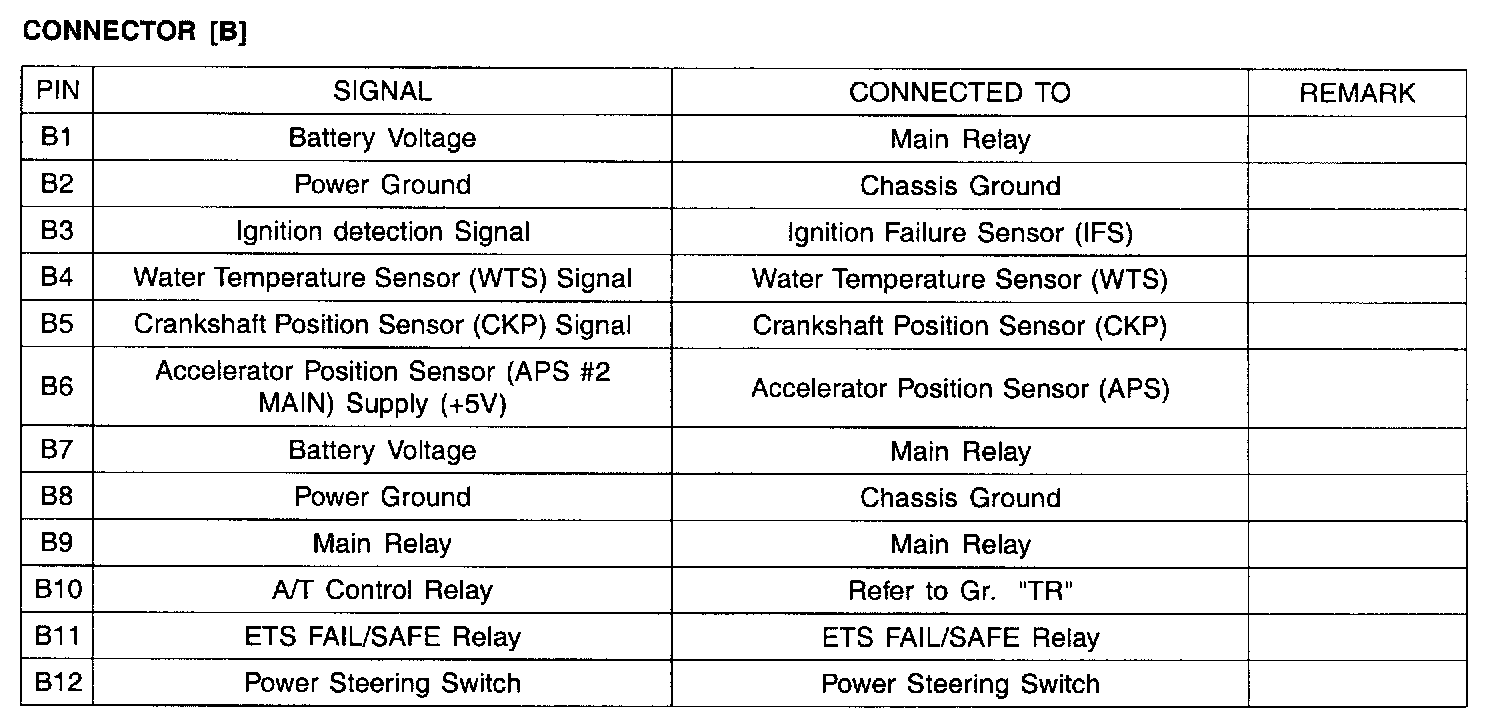

CONNECTOR [B]

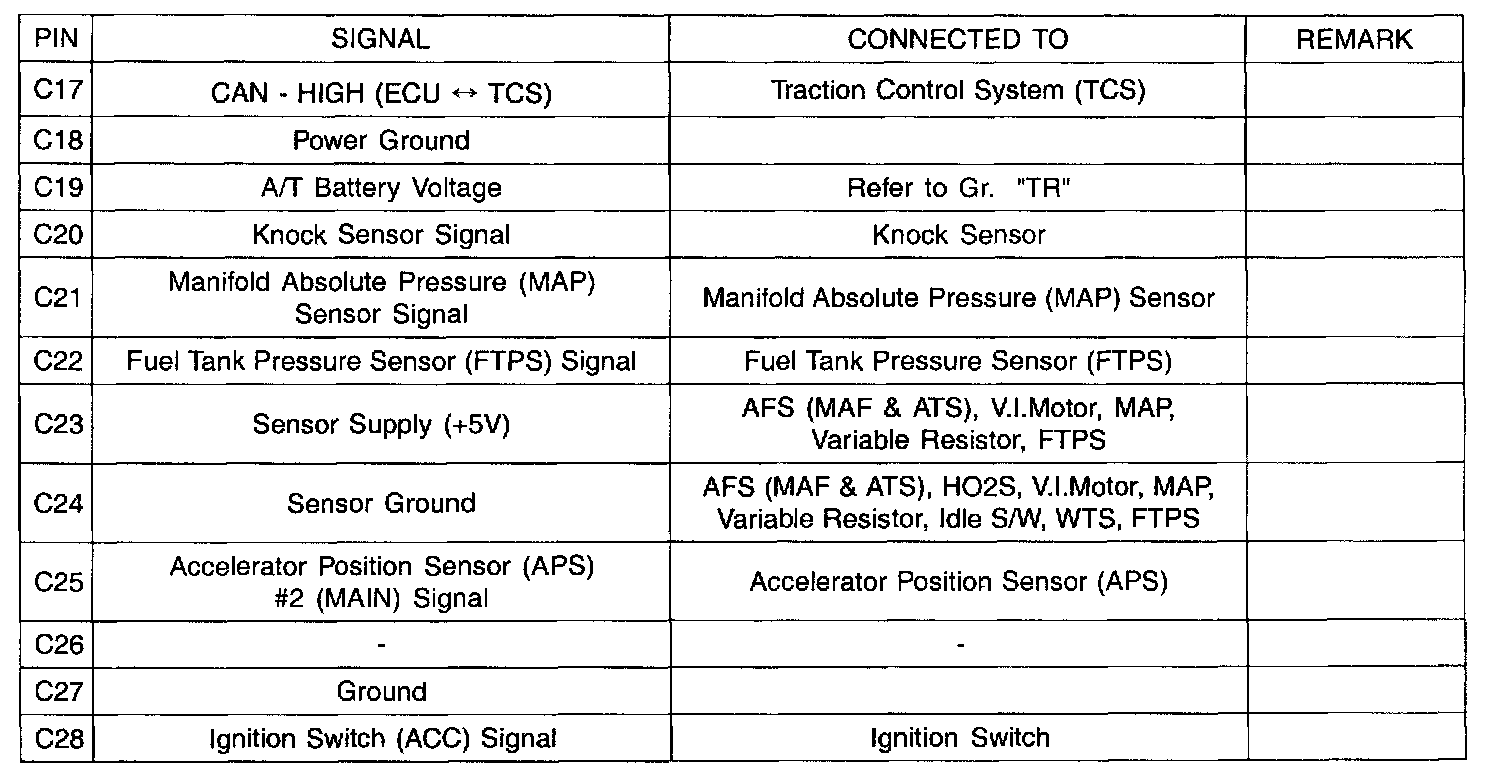

Connector C - (C1 - C16):
Connector C - (C17 - C28):

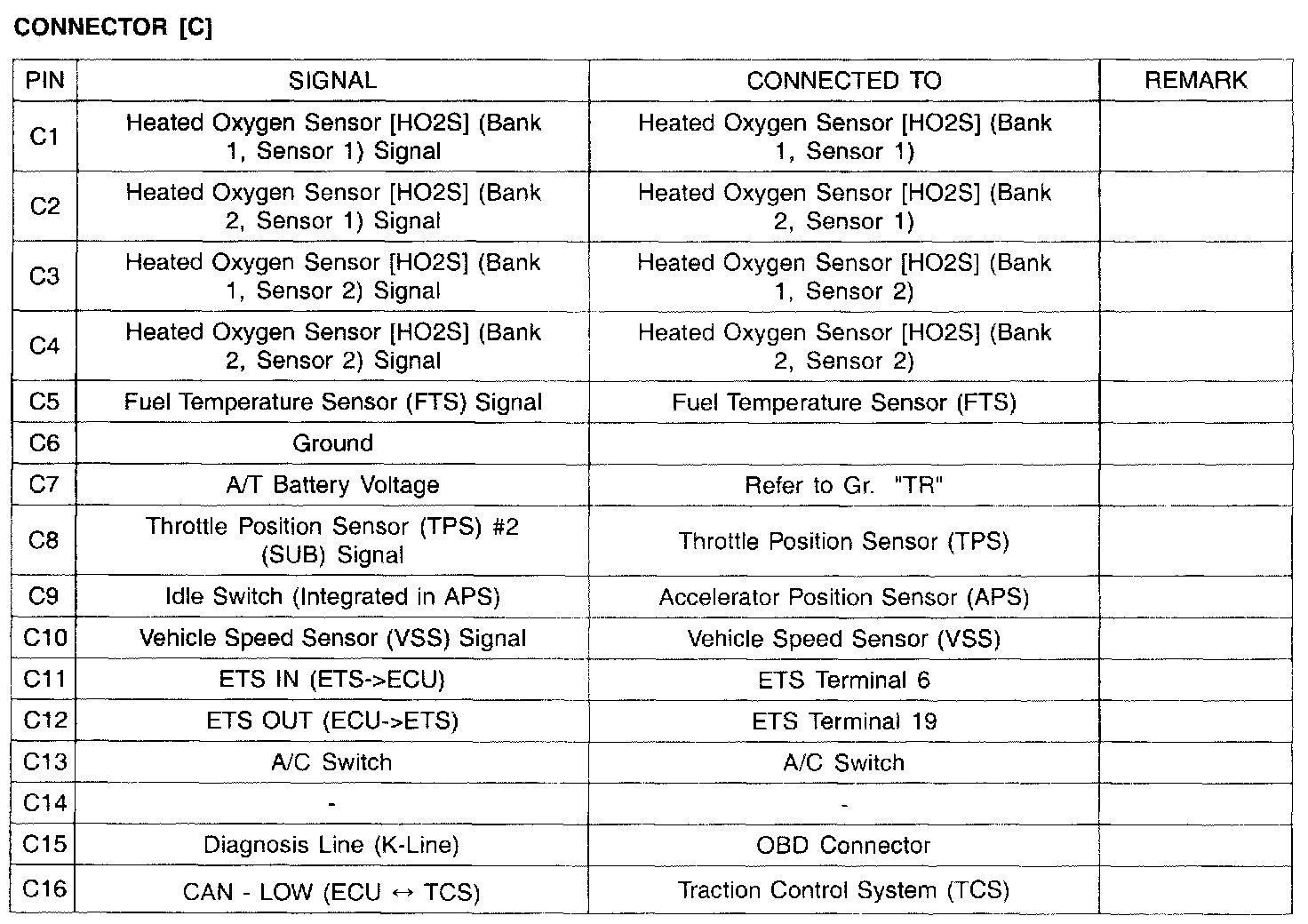

CONNECTOR [C]
NOTE: CONNECTOR [D]: TCU Connector.
