Backup Lamp: Service and Repair

REMOVAL AND INSTALLATION

1. Remove the battery negative(-) terminal.

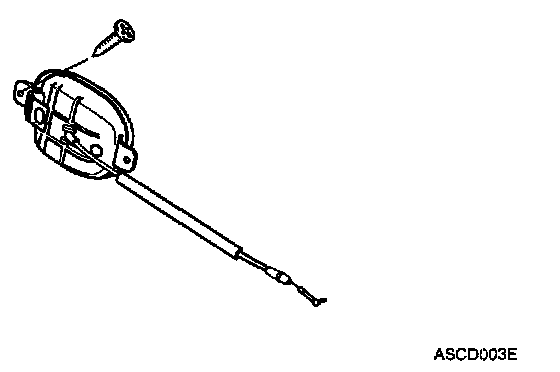

2. Loosen the screws(2) of trunk lid inner handle.




3. Remove the rod of trunk lid inner handle, and then remove the trunk lid inner handle.

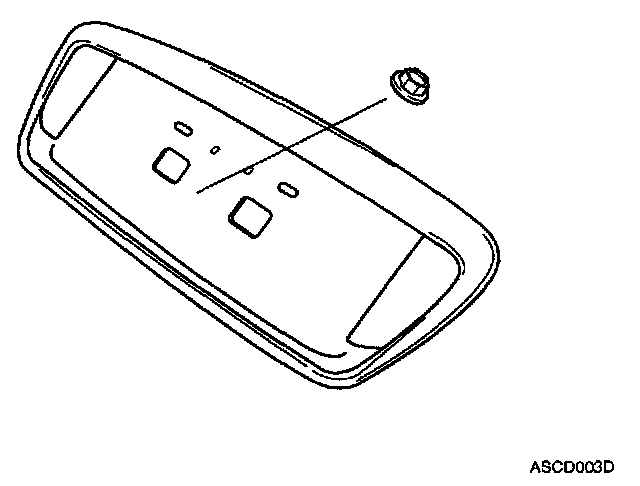

4. Loosen the nuts(11) of trunk lid license plate.




5. Disconnect the connector of trunk lid license lamp, and then remove the trunk lid license plate panel.

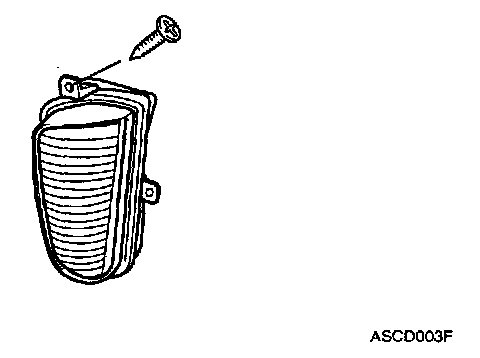

6. Loosen the screws(3) of back up lamp.




7. Remove the back up lamp from the license plate panel of trunk lid.

8. Installation is reverse of removal.

NOTE: If only the bulb replace, replace the bulb after removing the trunk trim.
