EGR Solenoid Valve
EGR SOLENOID VALVEThe EGR solenoid valve is a duty control type solenoid valve, which controls
EGR valve operating negative pressure to the
throttle body port.
Circuit Diagram (EGR Solenoid Valve):
Harness Connector:
Troubleshooting Procedure:
Ussing Hi-Scan (PRO):

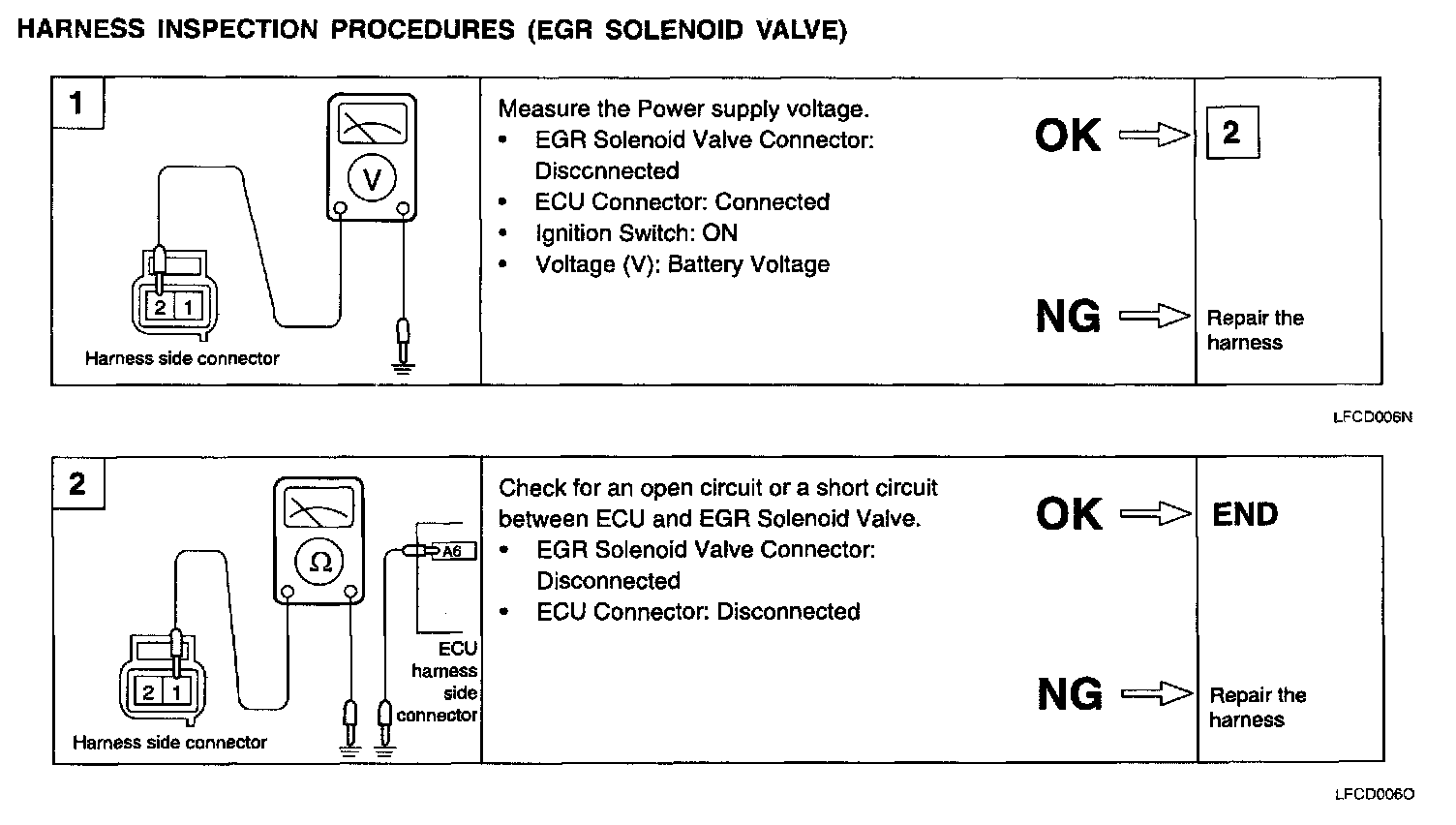

EGR SOLENOID VALVE INSPECTIONHarness Inspection Procedures (EGR Solenoid Valve):
