EGR Port Vacuum Check
EGR PORT VACUUM CHECK 1.

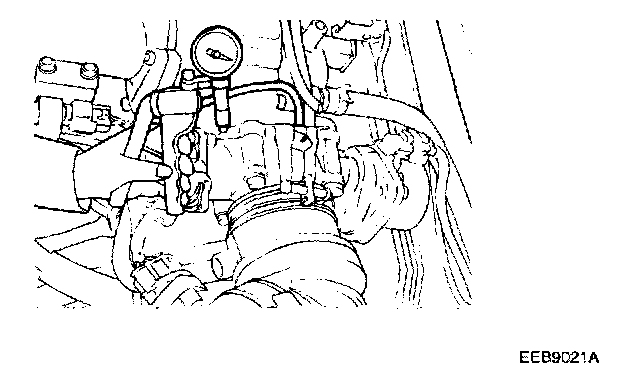

Disconnect the vacuum hose from the
throttle body EGR vacuum nipple and connect a hand vacuum pump to the nipple.
2.

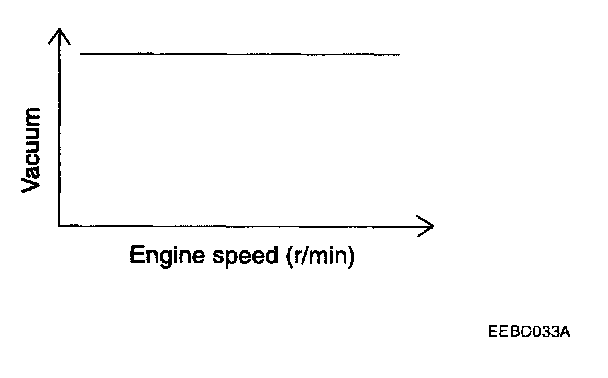

Start the engine and check to see that, after raising the engine speed by racing the engine, vacuum remains fairly constant.
