Engine Controls - EGR Inspection Procedure Correction

SOURCE: Kia PitStop

TITLE: Correction of EGR Solenoid Valve Inspection Procedure

APPLIES TO: 2004 Amanti

SERVICE TIP:

2004 Amanti Service Manual (Page EC- 23)

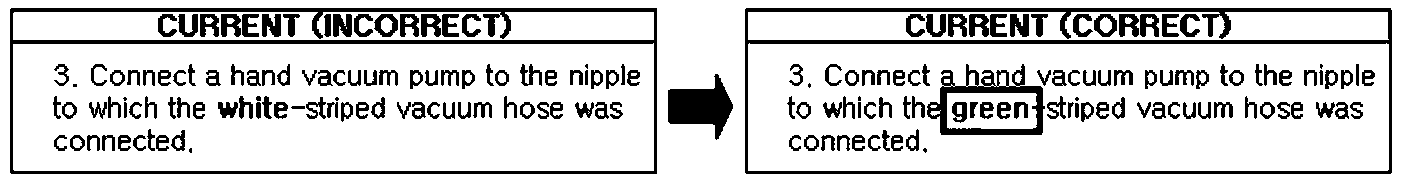

Step 3

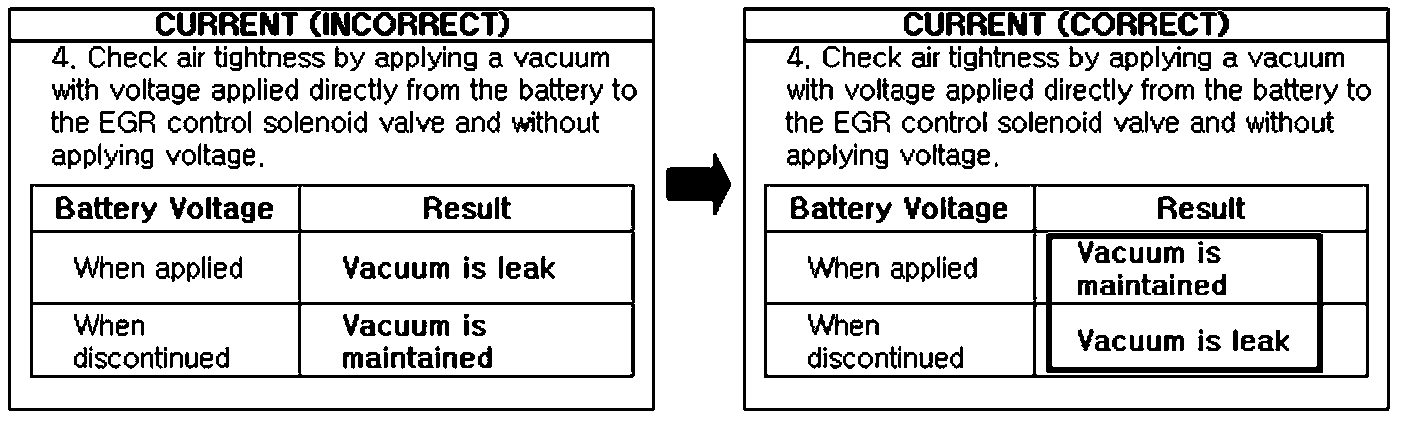

Step 4

The inspection procedure of Amanti EGR (exhaust gas recirculation) solenoid valve was written incorrectly in the Amanti 2004 Service Manual. Refer to this information when performing the EGR inspection.
