Valve Body

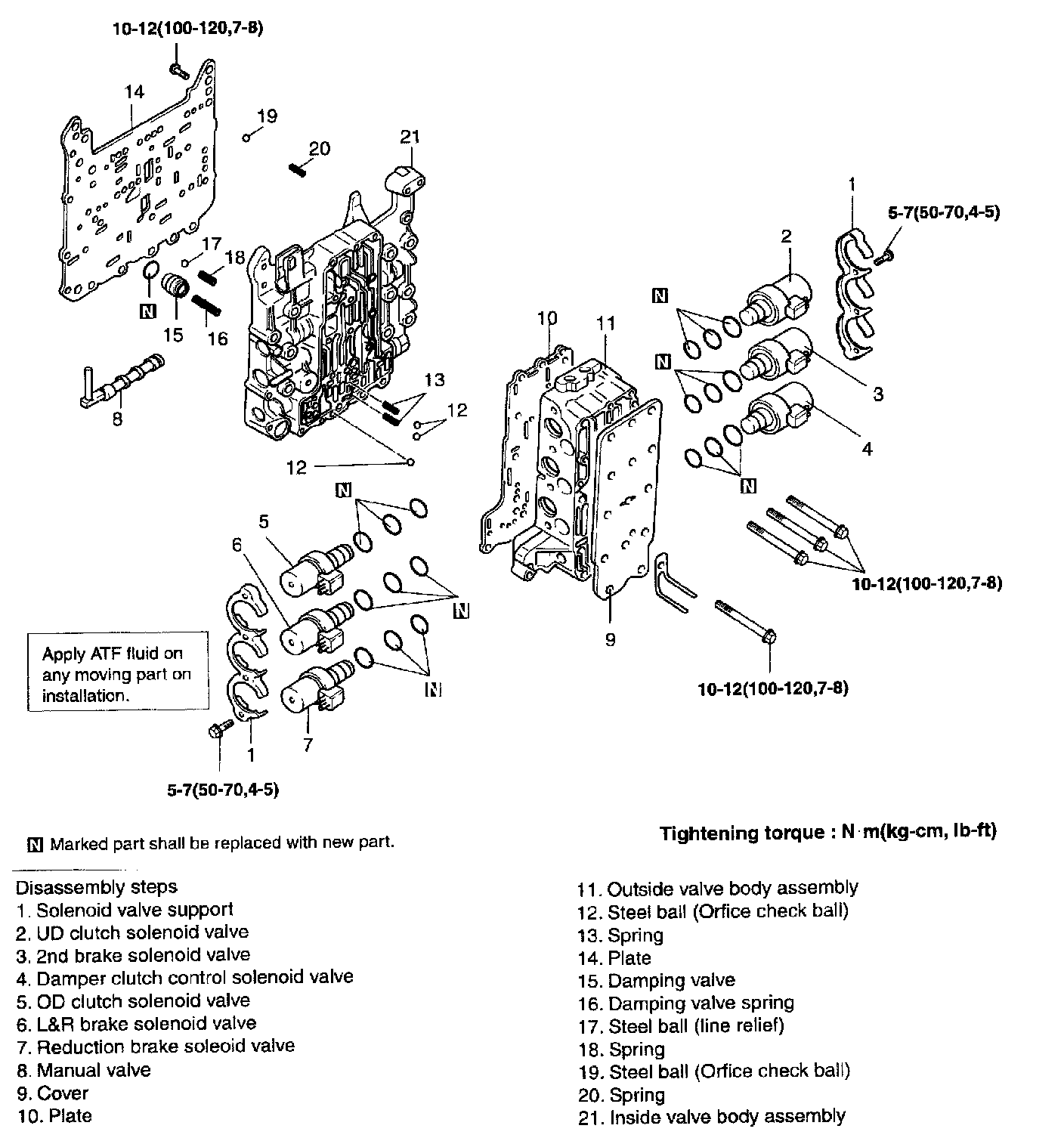

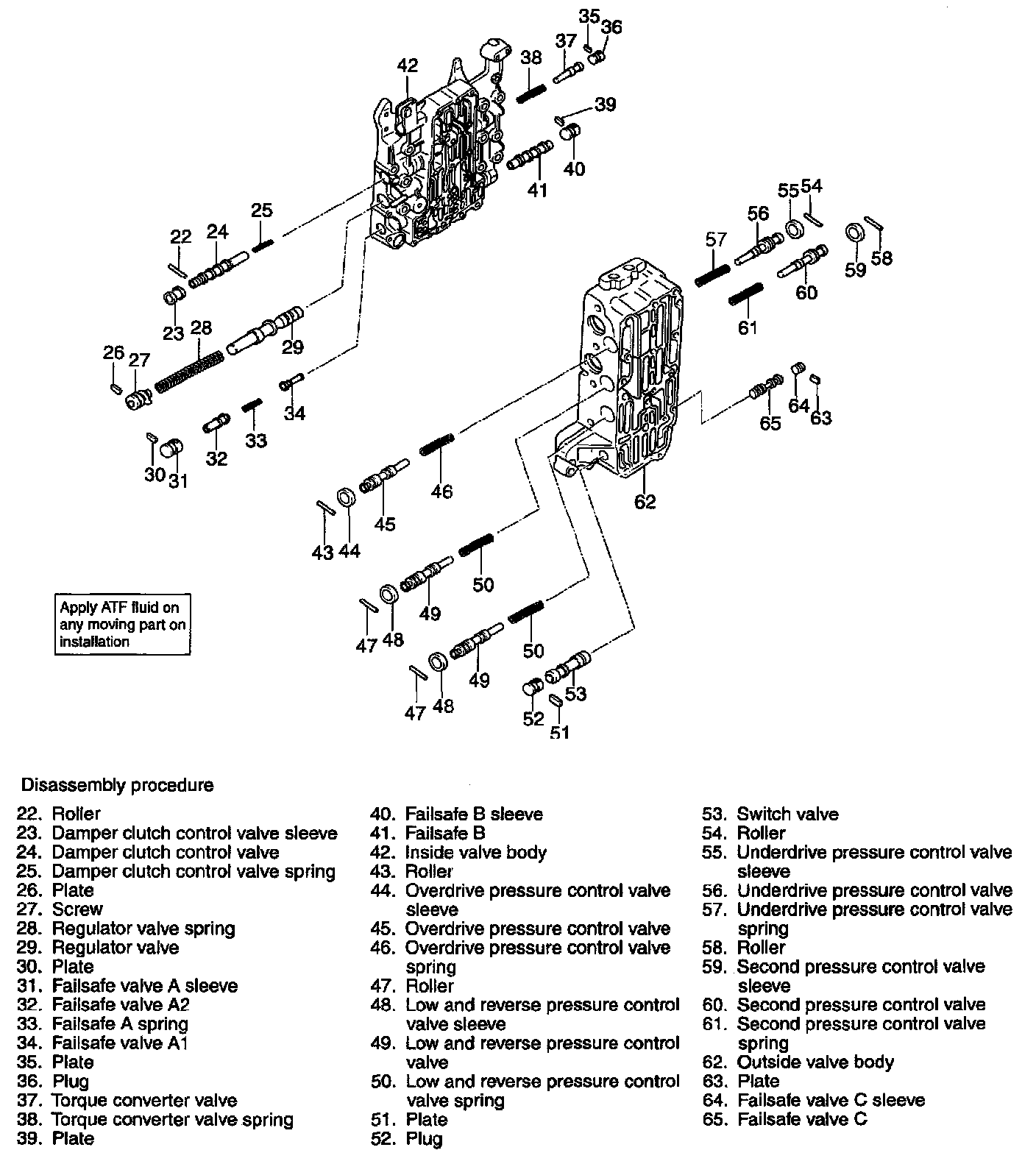

VALVE BODY COMPONENTS(A) COMPONENTS(B) DISASSEMBLY 1.
Remove each solenoid valve.
Mark each installation point with white paint or so.
REASSEMBLY 1.
Install the spring/steel ball/damping valve/damping
2.
Install the spring/steel ball.
3.
Install each solenoid valve.
1)
Apply ATF or white Vaseline on the O-ring and assemble it caring not to damage it.
2)
Remove the marking made in disassembly and install them.
