Enhanced Testing

P0106 - Manifold Absolute Pressure Circuit Range/Performance






Function

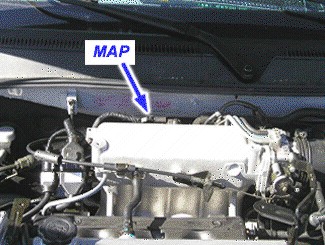

The Manifold Absolute Pressure (MAP) sensor measures the change of pressure in the intake manifold. The pressure of intake manifold is changed as variable engine running condition and converted into voltage and that is monitored by the PCM.

DTC Description
If MAP sensor output voltage is lower than 1.8 V or higher than 4.2 V, the PCM determines that a fault exists and a DTC is stored.

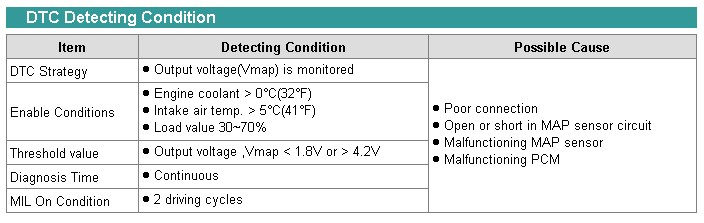

Detecting Condition

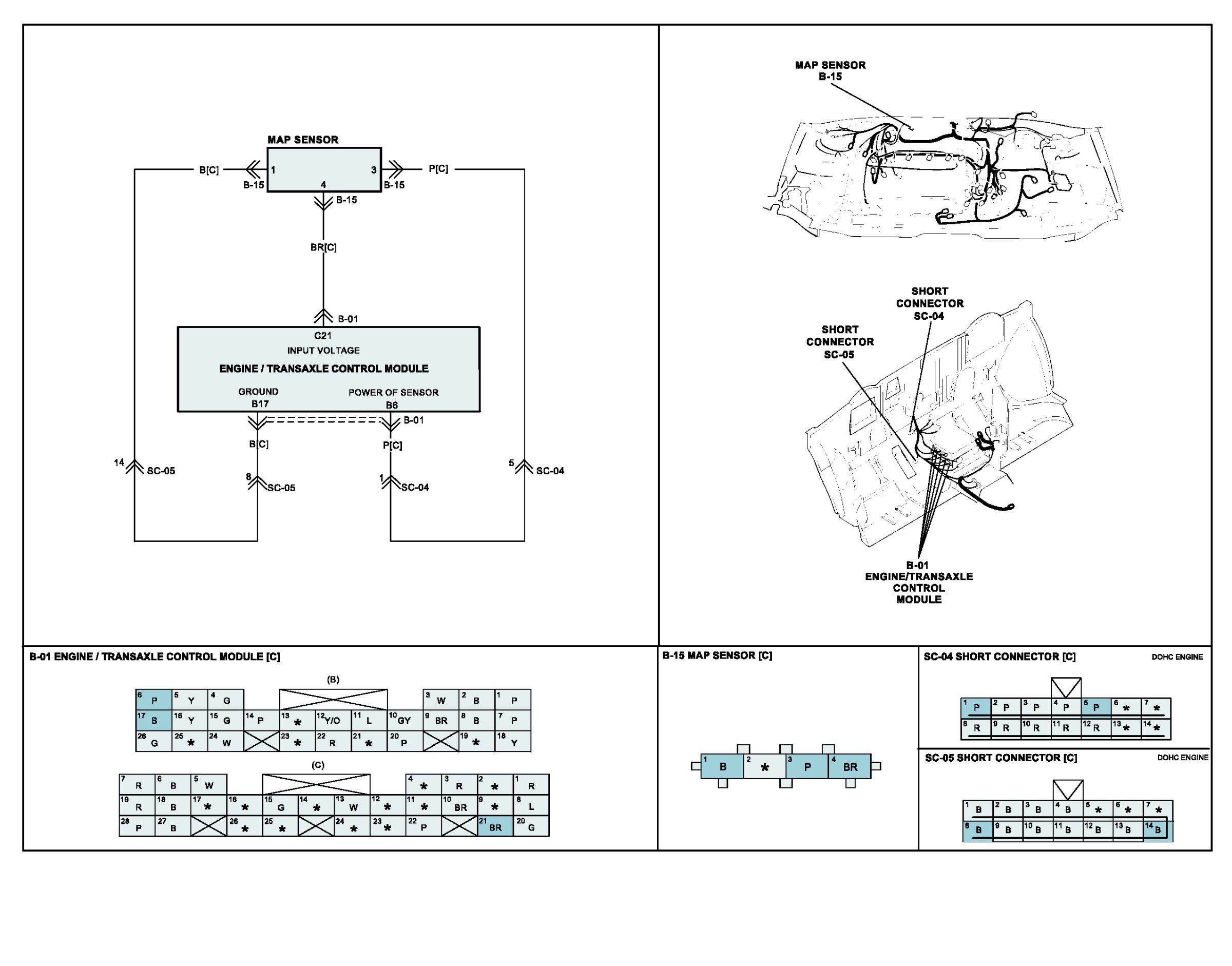

Wiring Schematic
