Enhanced Testing

P0301 - Cylinder 1 Misfire Detected






General Description
Misfires can be caused by lack of combustion in a cylinder due to absence of spark, poor fuel metering, poor compression, or many other causes. Even a small number of misfires may result in excessive exhaust emissions due to the unburned mixture. Increased misfire rates cause damage to the catalytic converter. The ECM monitors the crankshaft speed variation to determine if any misfiring generated. The ECM identifies the specific cylinder in which the misfire has occurred and counts individual misfire events by monitoring changes in the crankshaft rotation for each cylinder. A random misfire indicates two or more cylinders are misfiring.

DTC Description
If misfire occurs in cylinder #1, the ECM determines that a fault exists and a DTC is stored.

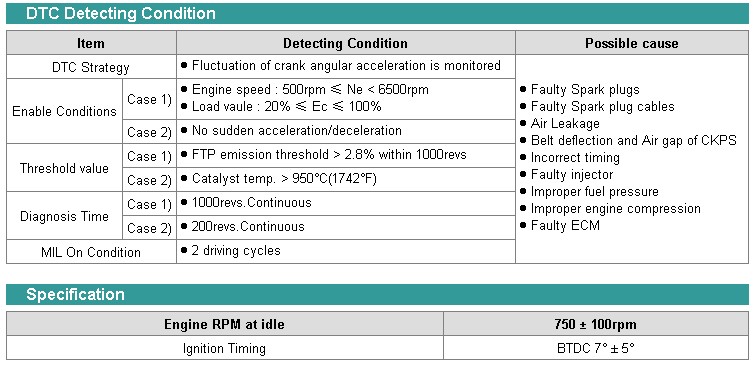

Detecting Condition and Specifications

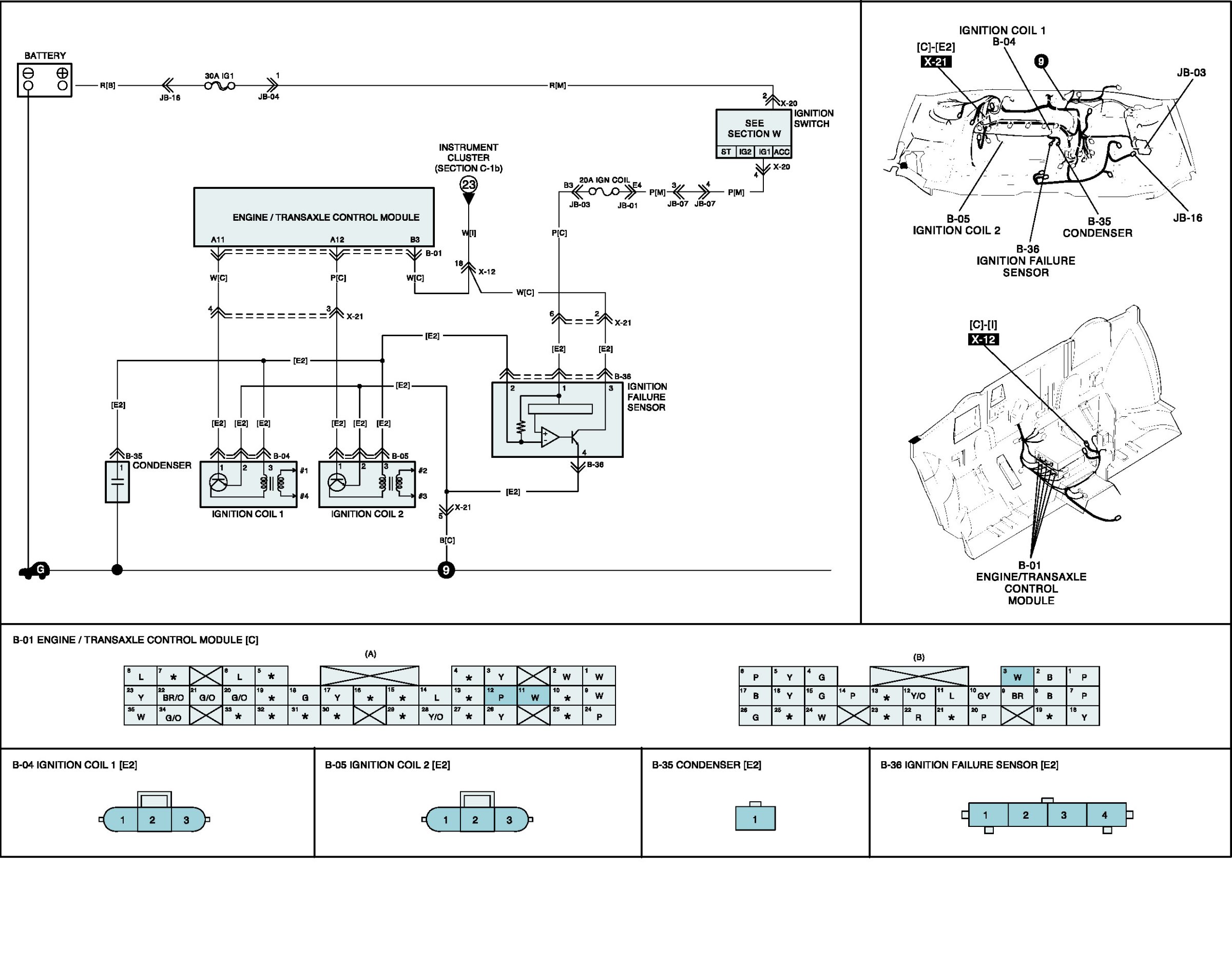

Wiring Schematic
