Front

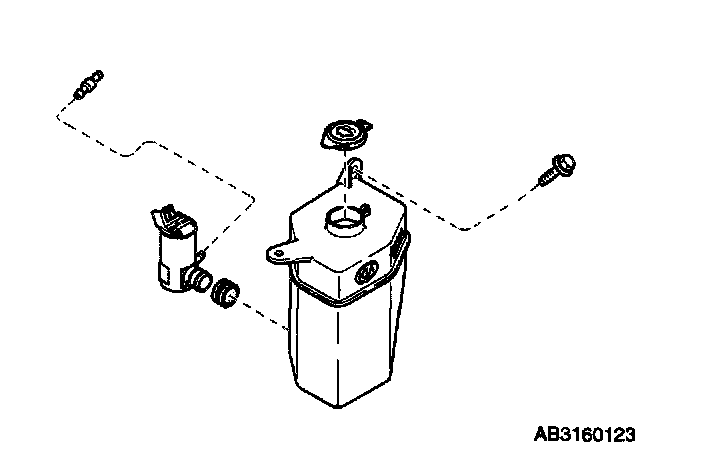

Removal 1.
Disconnect negative battery cable.
2.
Remove two bolts on washer tank.
3.
Disconnect washer motor harness connector.
4.
Remove hose connector at washer motor.
5.
Remove washer motor and washer tank.
6.
Drain washer tank and then separate washer motor from washer tank.
InstallationReverse removal procedure.
