Shifter A/T: Service and Repair

SHIFT LEVER

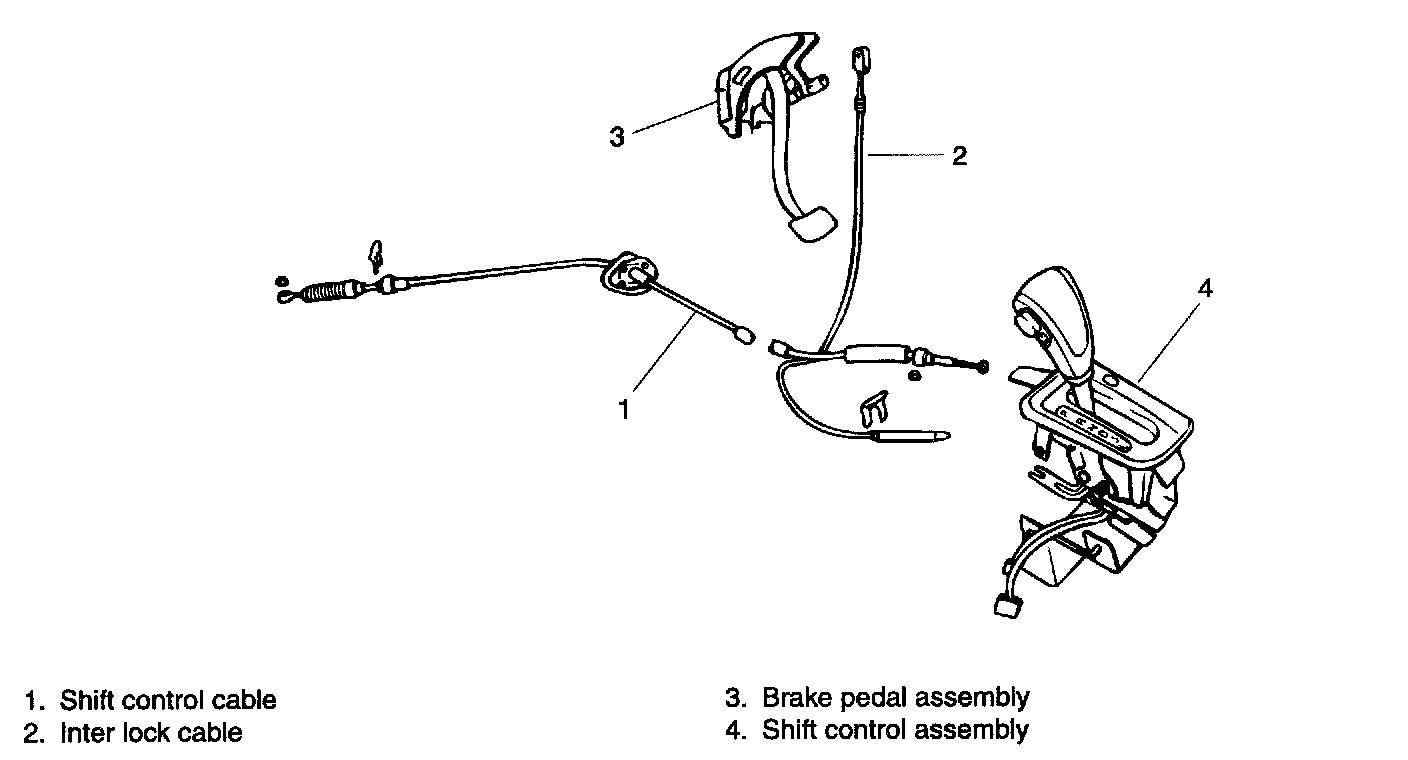

AUTOMATIC TRANSAXLE SHIFT CONTROL
REMOVAL

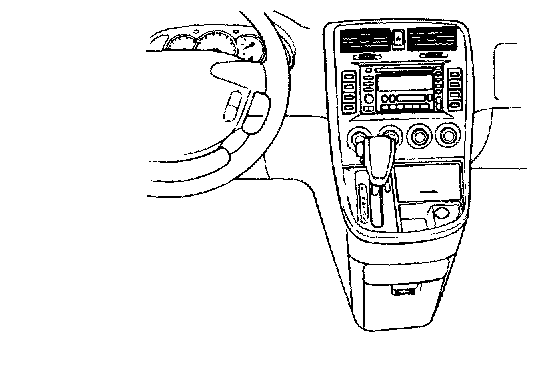

1. Remove the audio cover plate.





2. Remove the center console.

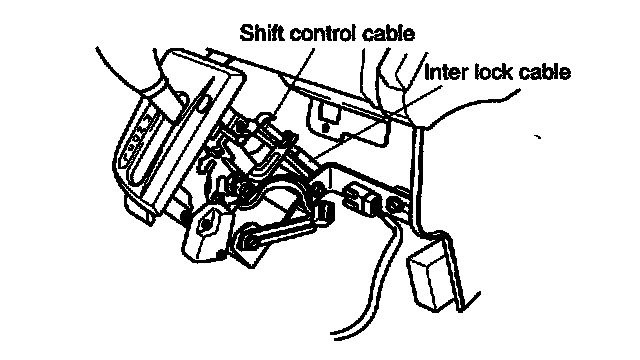

3. Remove the shift control cable.





4. Remove the inter lock cable.
5. Disconnect the harness connector.

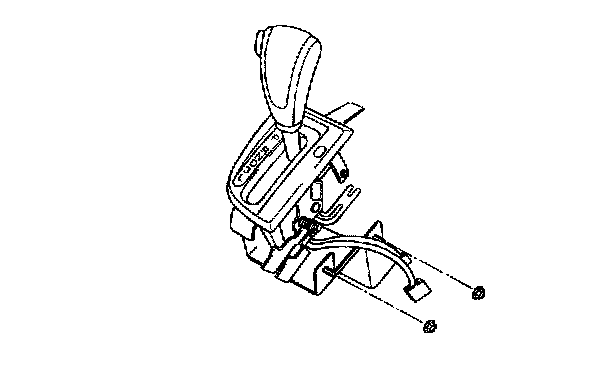

6. Remove the selector lever assembly.

INSTALLATION

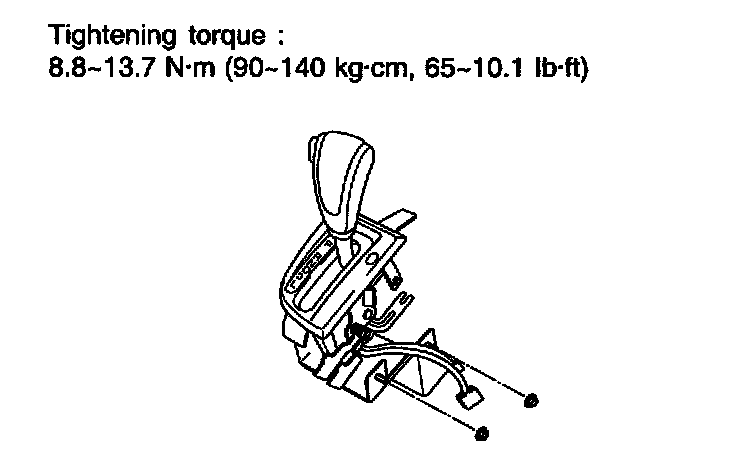

1. Install the selector lever assembly with tightening torque.
2. Install the inter lock cable.
3. Install the shift control cable.
4. Connect the harness connector.





5. After installing the inter lock cable, move the selector lever to T" and press the brake pedal to check the inter lock cable operation.
