Exhaust System: Service and Repair

EXHAUST MANIFOLD





COMPONENTS

REMOVAL

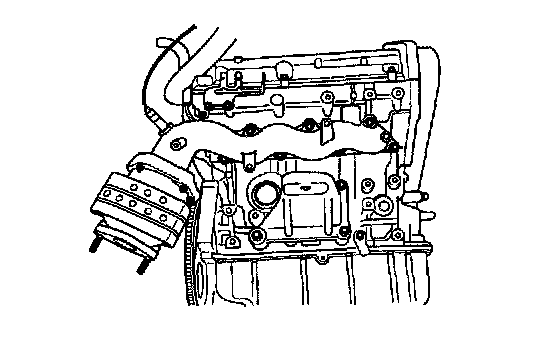

1. Remove the heat protector.





2. Remove the exhaust manifold.
3. Remove the exhaust manifold gasket.

INSPECTION
1. Check for damage or cracks.





2. Using a straight edge and feeler gauge, check for distortion on the cylinder head matching surface.
Standard value: 0.15 mm (0.006 inch) or less
Service limit: 0.3 mm (0.012 inch) or less

INSTALLATION





1. Install the exhaust manifold with gasket.
Tightening torque 26.5 - 32.4 Nm (270 - 330 kg-cm, 19.5 - 23.9 ft. lbs.)

NOTE: Do not reuse an exhaust manifold gasket.

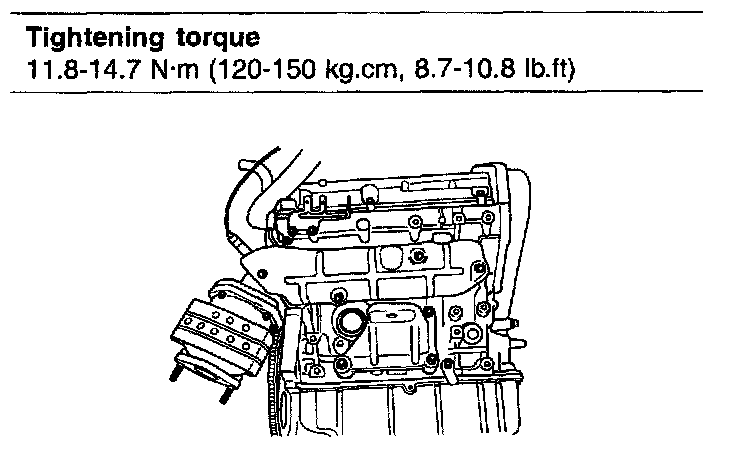

2. Install the heat protector.
Tightening torque 11.8 - 14.7 Nm (120 - 150 kg-cm, 8.7 - 10.8 ft. lbs.)
