Automatic Transmission/Transaxle: Description and Operation

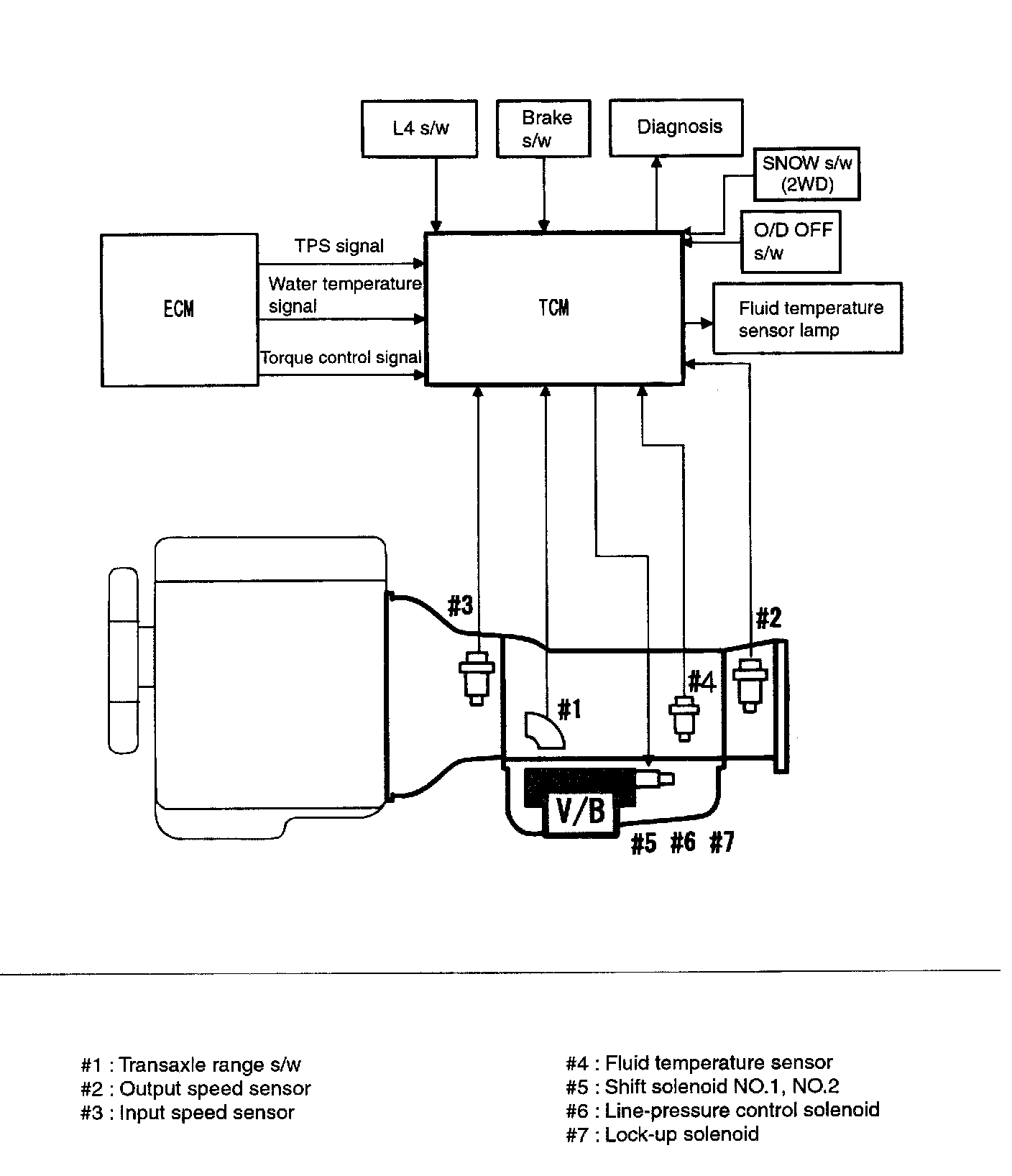

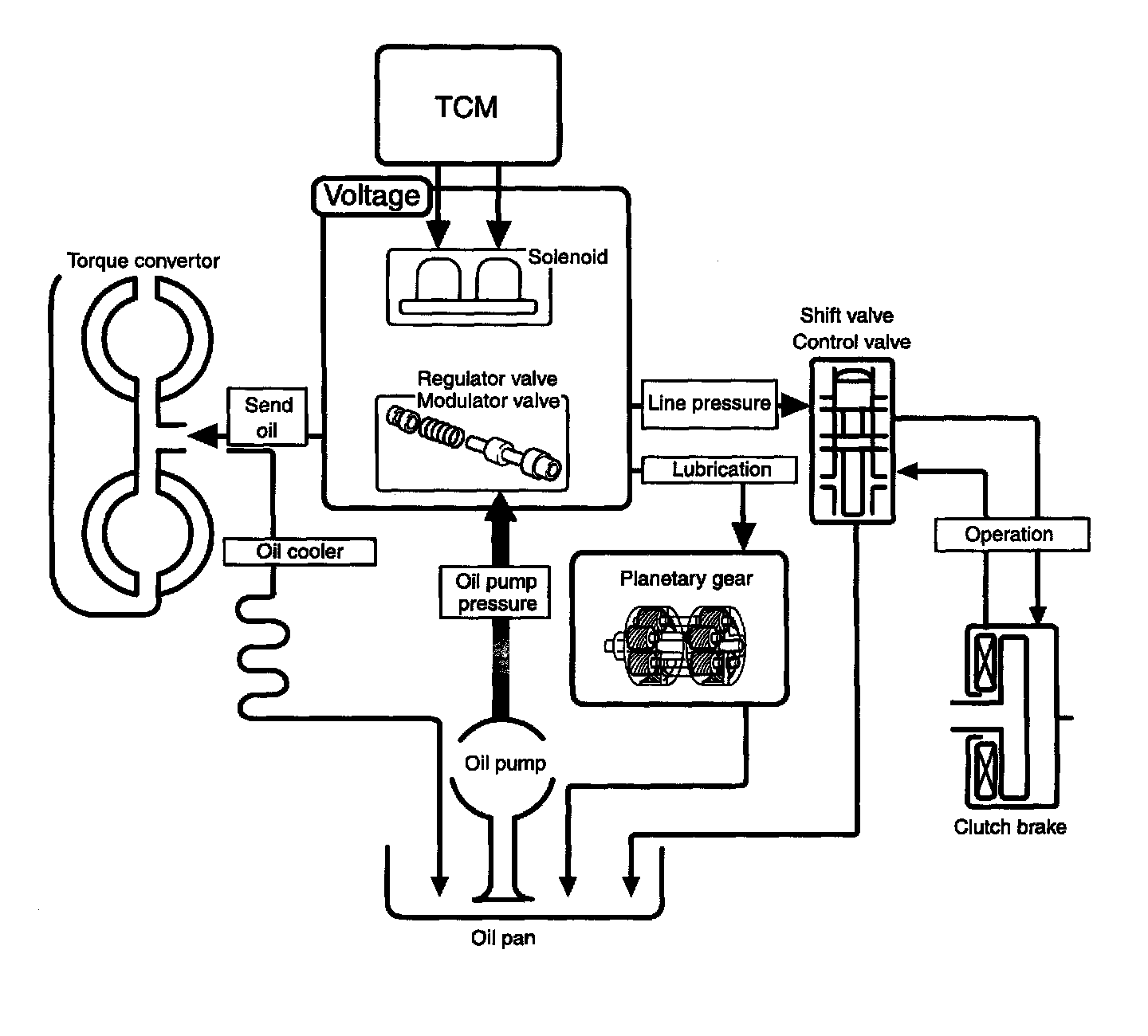

SYSTEM DIAGRAM HYDRAULIC CONTROL SYSTEM Based on the hydraulic created by the oil pump,
TCM sends signals to solenoid and hydraulic control system governs the hydraulic pressure acting on the torque converter, planetary gear, clutches and brakes in accordance with the vehicle driving conditions.
