Output Shaft

OUTPUT SHAFT

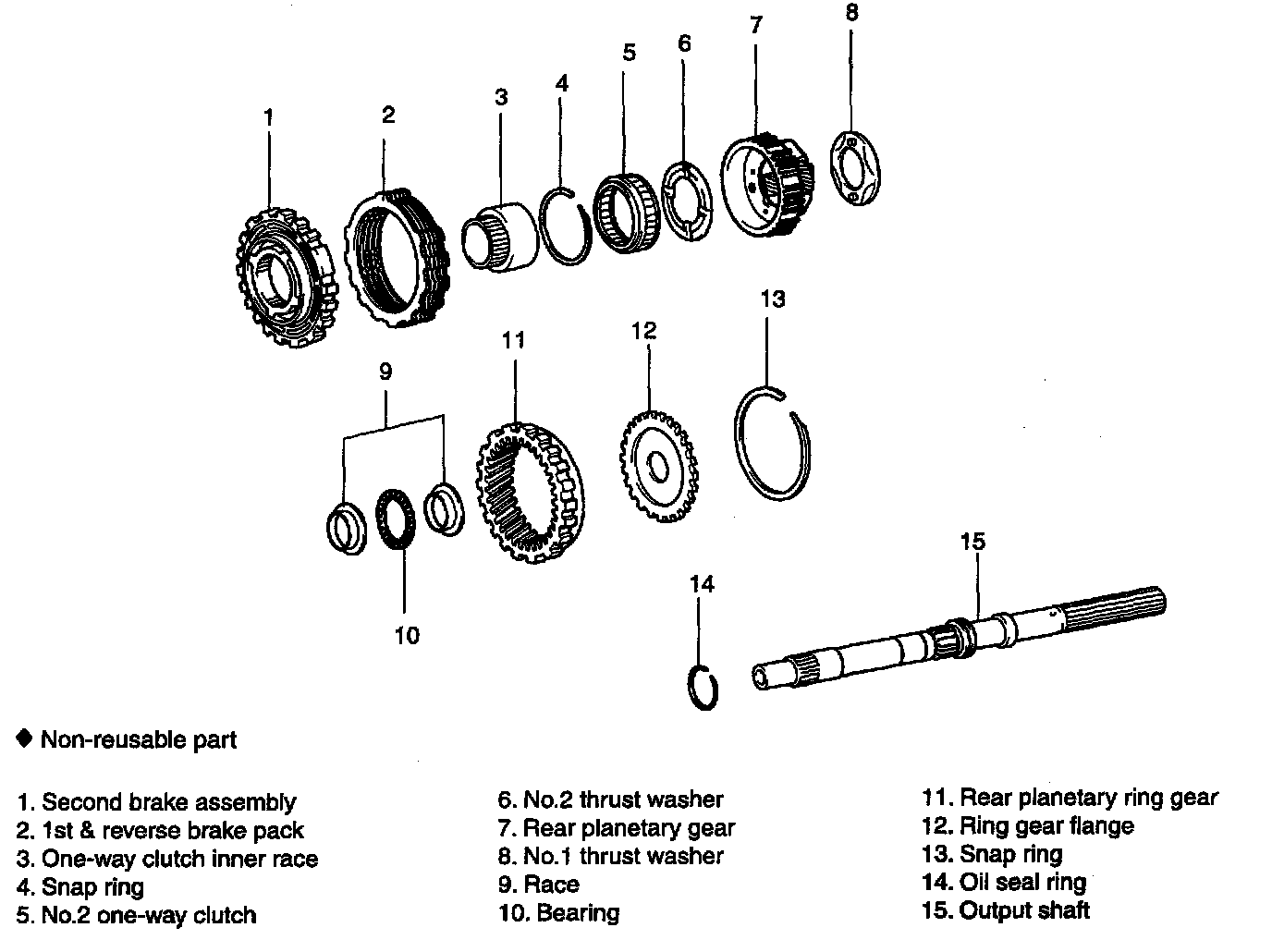

COMPONENTS

DISASSEMBLY





1. Remove the second brake assembly from the output shaft.





2. Remove the output shaft from the rear planetary gear.





3. Remove the oil seal from the output shaft.





4. Remove first and reverse brake discs, plates and flange.





5. Remove rear planetary gear from rear planetary ring gear.





6. Hold the planetary gear and turn the one-way clutch inner race. The one-way clutch inner race should turn freely counterclockwise and should lock clockwise.





7. Remove the one-way clutch inner race from the rear planetary gear.





8. Remove the snap ring with a screwdriver.





9. Remove the No. 2 one-way clutch with retainers from the planetary gear.





10. Remove No. 2 and No. 1 thrust washers.





11. Remove races and bearing from rear planetary ring gear.





12. Remove the snap ring.





13. Remove the ring gear flange.

REASSEMBLY





1. Install the race and the bearing.





2. Install the No. 2 one-way clutch.
