Antenna: Service and Repair
4 DOORAntenna mount
Removal
1. Remove antenna mast by unscrewing antenna mast from mount.
2. Remove bezel nut from antenna.

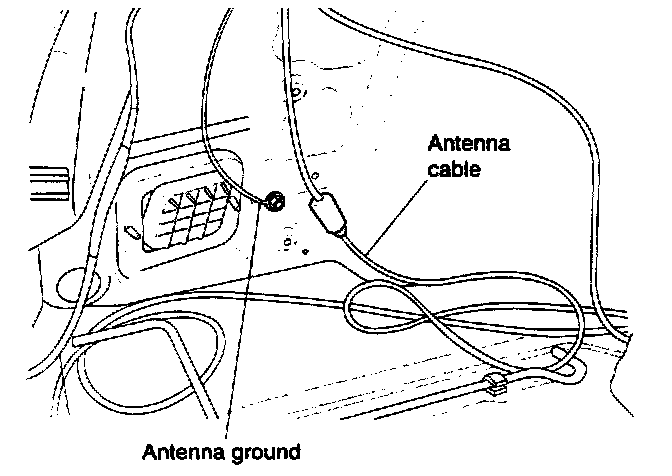

3. Disconnect antenna cable from antenna.
4. Remove one nut from antenna mount support.
5. Remove antenna mount from bottom.
Installation
1. Install antenna mount.
2. Connect antenna cable connector to antenna.
3. Install bezel nut.
4. Install antenna mast.
5 DOOR
Antenna Mount
Removal
1. Remove antenna mast by unscrewing antenna mast from mount.
2. Remove bezel nut from antenna.
3. Disconnect antenna cable from antenna.
4. Remove one nut from antenna mount support.
5. Remove antenna mount from bottom.
Installation
1. Install antenna mount.
Tighten antenna mount support bolt to 70 - 104 lb.in (8 - 12 N.m, 80 - 120 kg.cm)
2. Connect antenna cable connector to antenna.
3. Install bezel nut.
Tighten bezel nut to 26 - 44 lb.in (3 - 5 N.m, 30 - 50 kg.cm)
4. Install antenna mast.
Tighten antenna mast to 17 - 26 lb.in (2 - 3 N.m, 20 - 30 kg.cm)
