Upper Trim
4 DOORRemoval

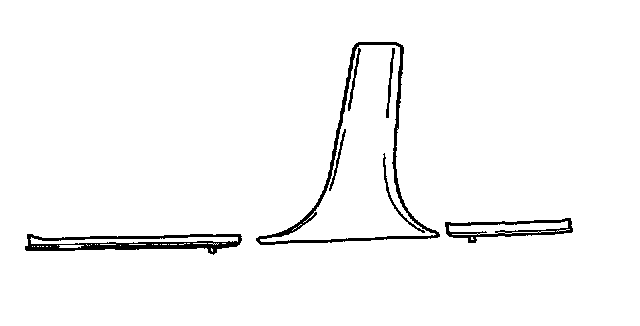

1. Remove front and rear scuff plate. Refer to "Front Rear scuff plate".
2. Unfasten B-pillar lower trim with a trim removal tool.
3. Remove B-pillar lower trim.

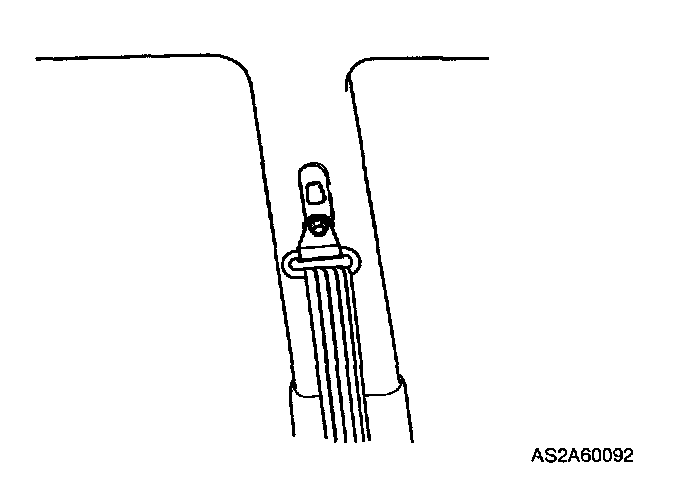

4. Remove upper mounting bolt from safety belt anchor.

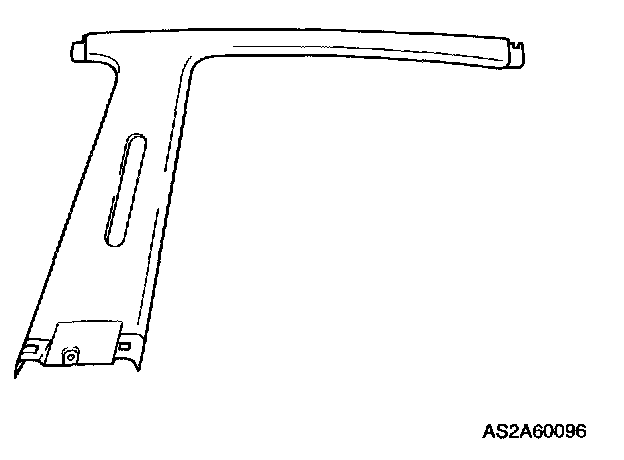

5. Remove one screw from B-pillar upper trim.
6. Remove B-pillar upper trim with a trim removal tool.
Installation
1. Position B-pillar upper trim
2. Install one screw.
3. Install safety belt anchor:
a. Install one bolt on safety belt anchor.
Tighten mounting bracket bolt to 28 - 58 lb.ft (39 - 80 N.m, 3.9 - 8.0 kg.m)
b. Fasten safety belt.
4. Position B-pillar lower trim.
5. Press B-pillar lower trim.
5 DOOR
Removal

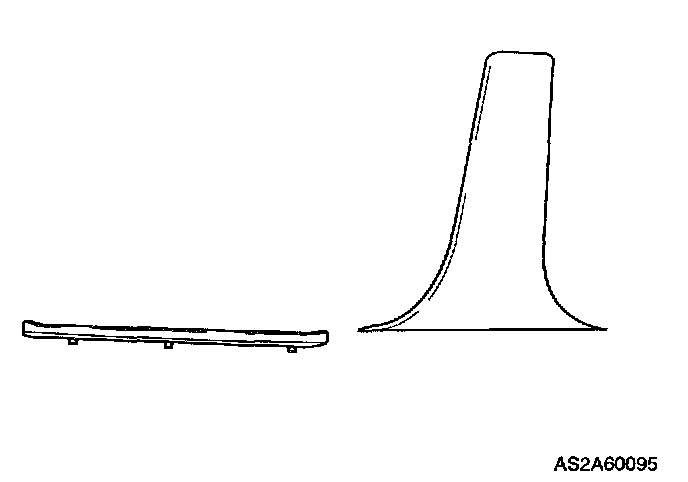

1. Unfasten B-pillar lower trim with a trim removal tool.
2. Remove B-pillar lower trim.
3. Remove safety belt anchor bolt.
a. Unfasten safety belt.
b. Remove one bolt.
4. Remove one screw from B-pillar upper trim.
5. Remove B-pillar upper trim with a trim removal tool.
Installation
1. Position B-pillar upper trim.
2. Install one screw.
3. Install safety belt anchor:
a. Install one bolt on seat belt anchor.
Tighten one bolt to 29 - 58 lb.ft (38 - 78 N.m, 3.9 - 8.0 kg.m)
b. Fasten safety belt.
4. Position B-pillar lower trim.
5. Press B-pillar lower trim in to fasten clips.
