H-1a - Automatic Transaxle Control System
H-1a - Automatic Transaxle Control System

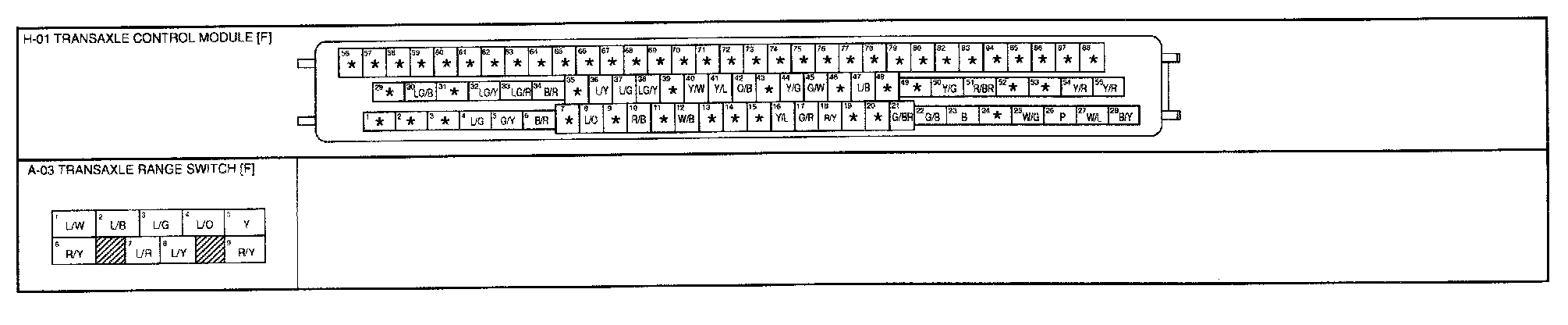

H-1a - Automatic Transaxle Control System Connectors:
