Courtesy Lamp

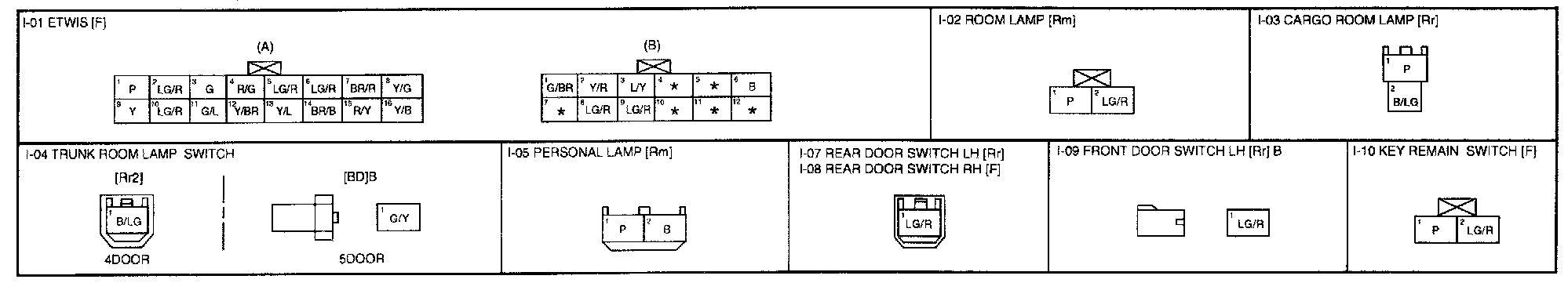

I-1a - Electrical Time & Warning Indication Systems (ETWIS), Room Lamps Connectors:

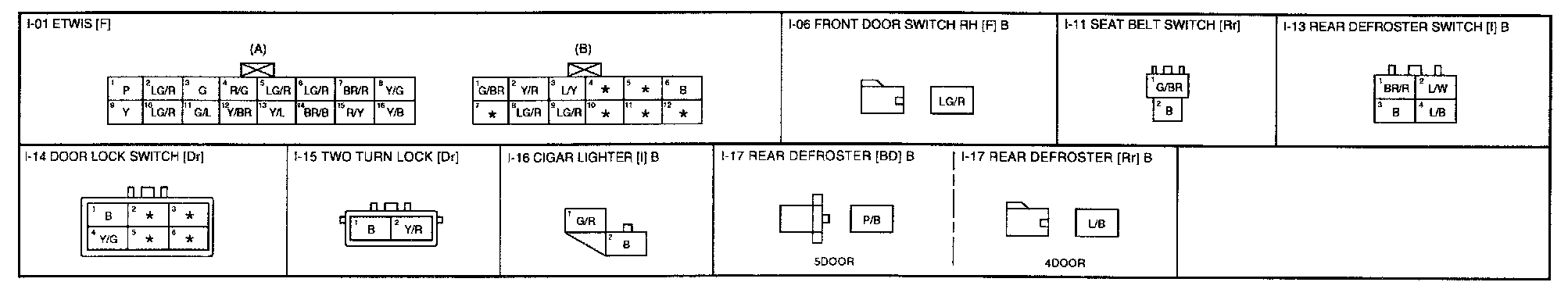

I-1b - Electrical Time & Warning Indication System(ETWIS), Cigar Lighter, Rear Defroster Connectors:
