Antilock Brakes / Traction Control Systems

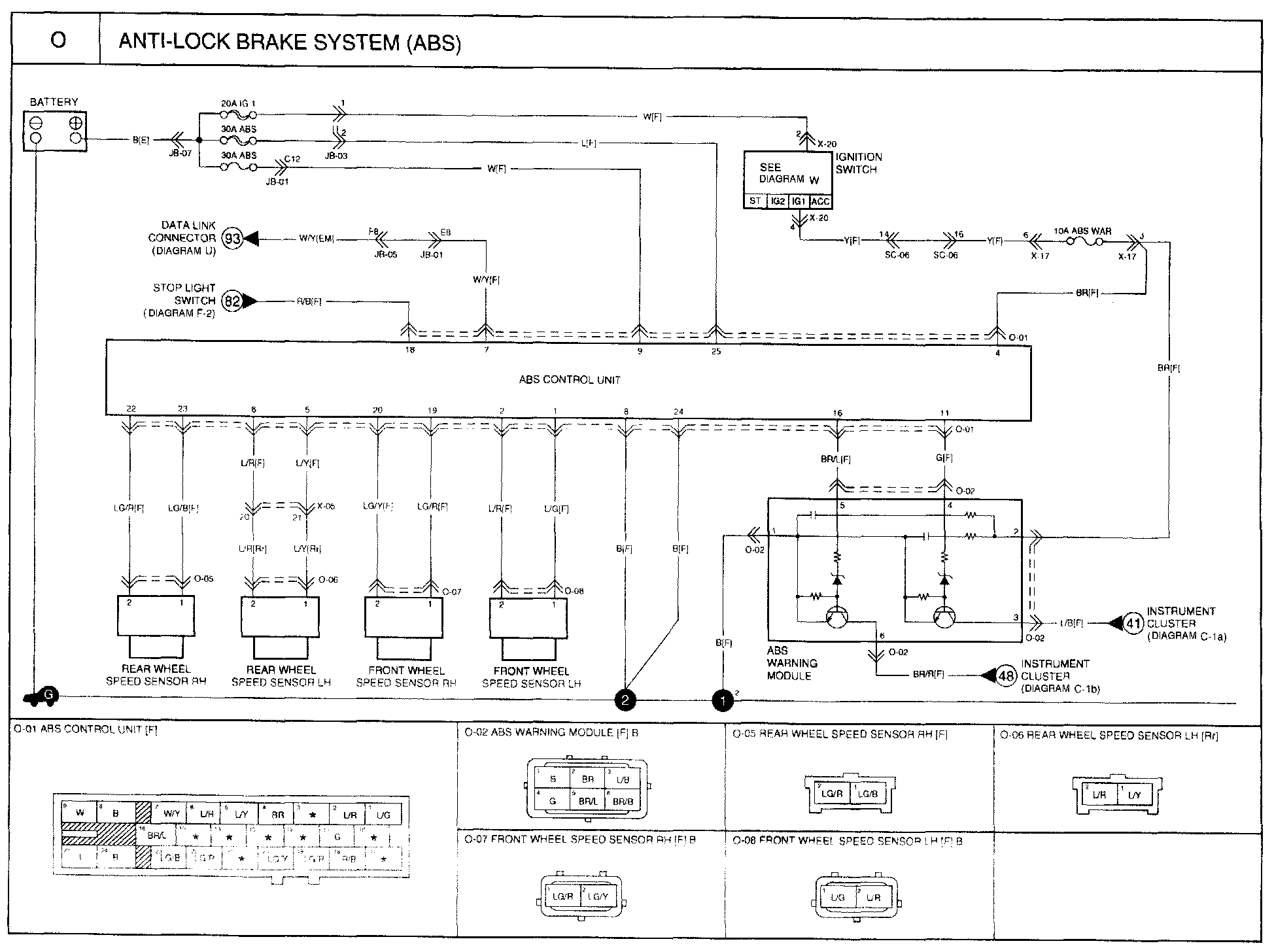

Diagram O:
Routing View O:

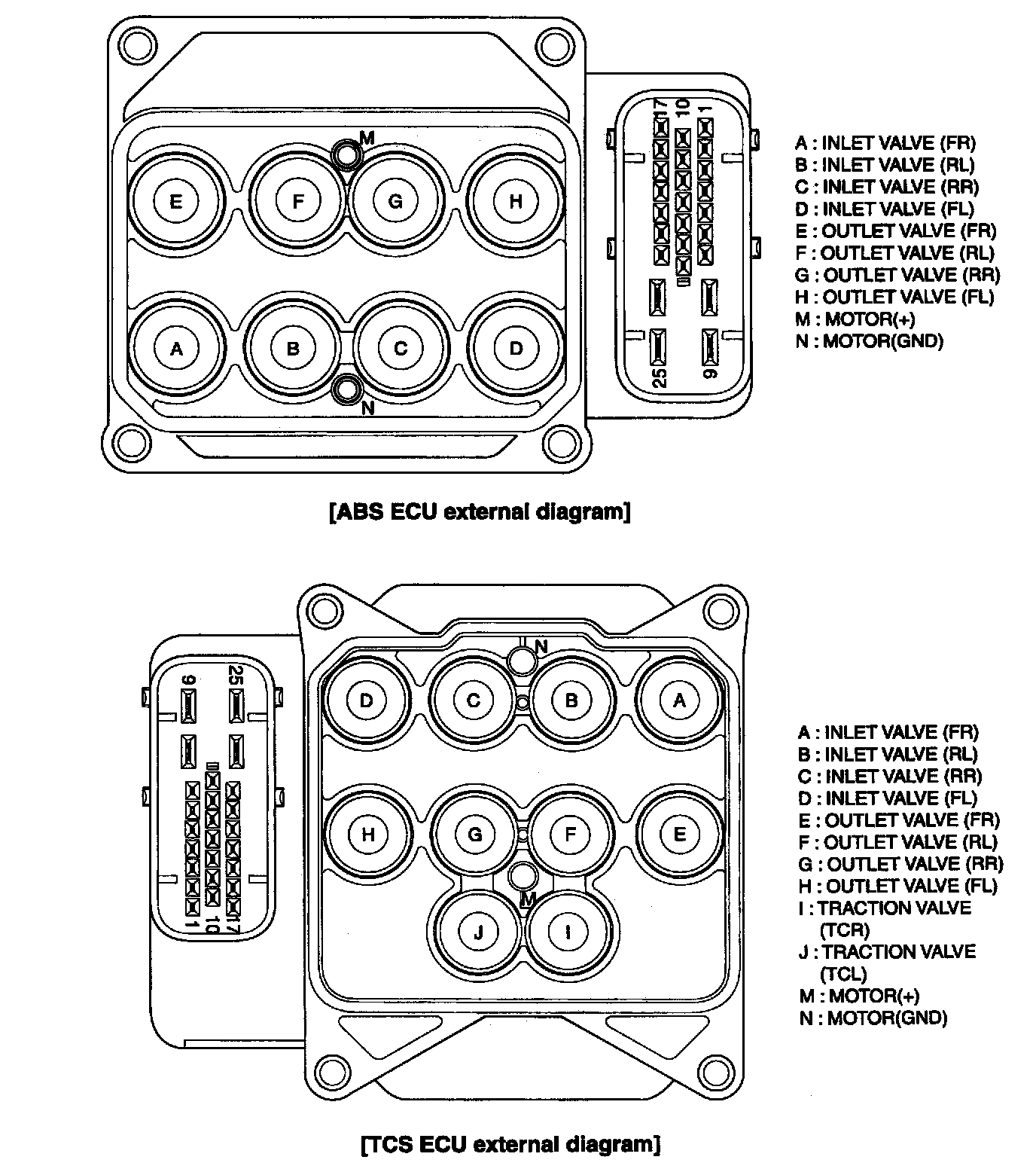

Hecu External Diagram:

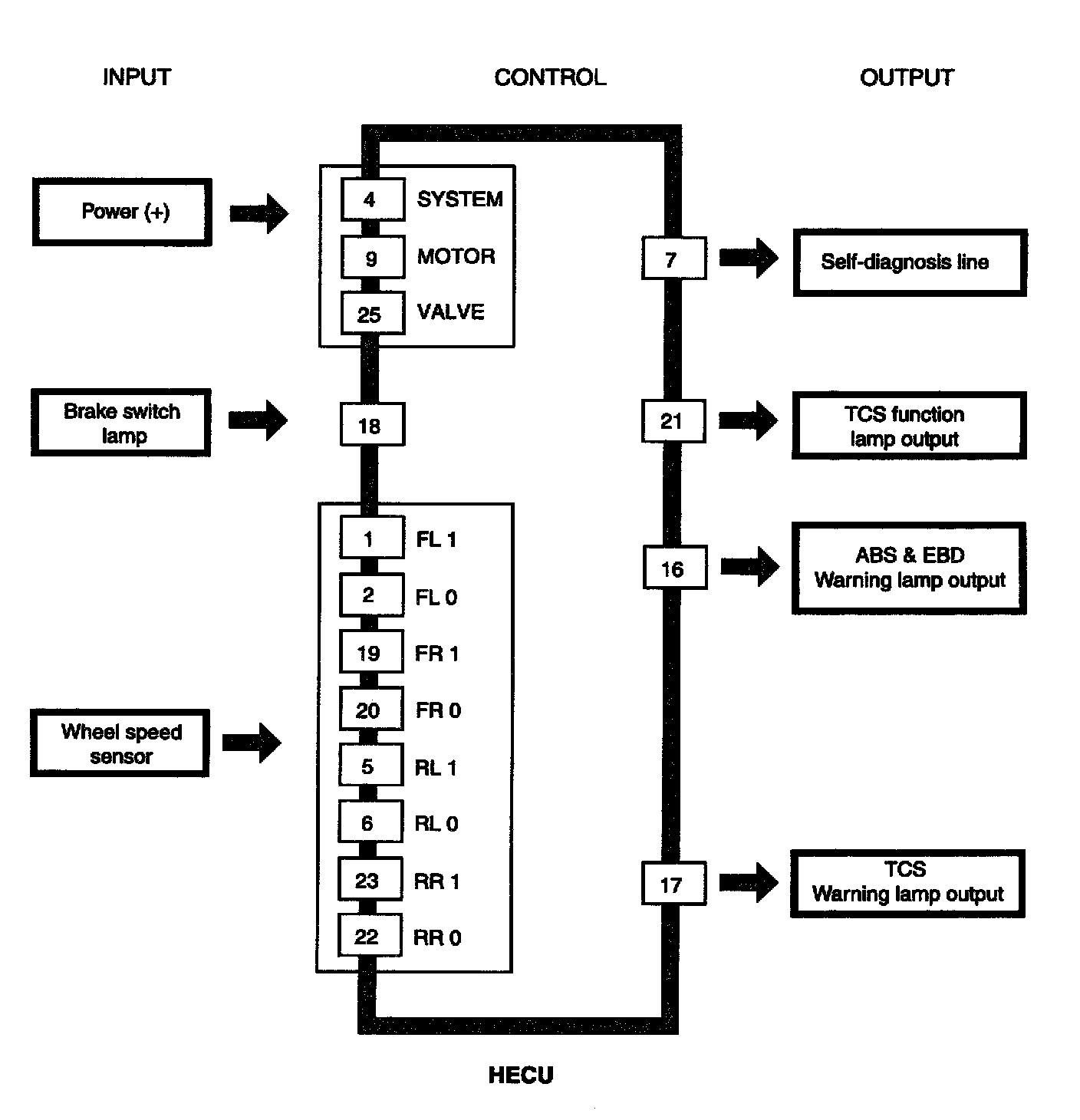

INPUT/OUTPUT BLOCK DIAGRAM:

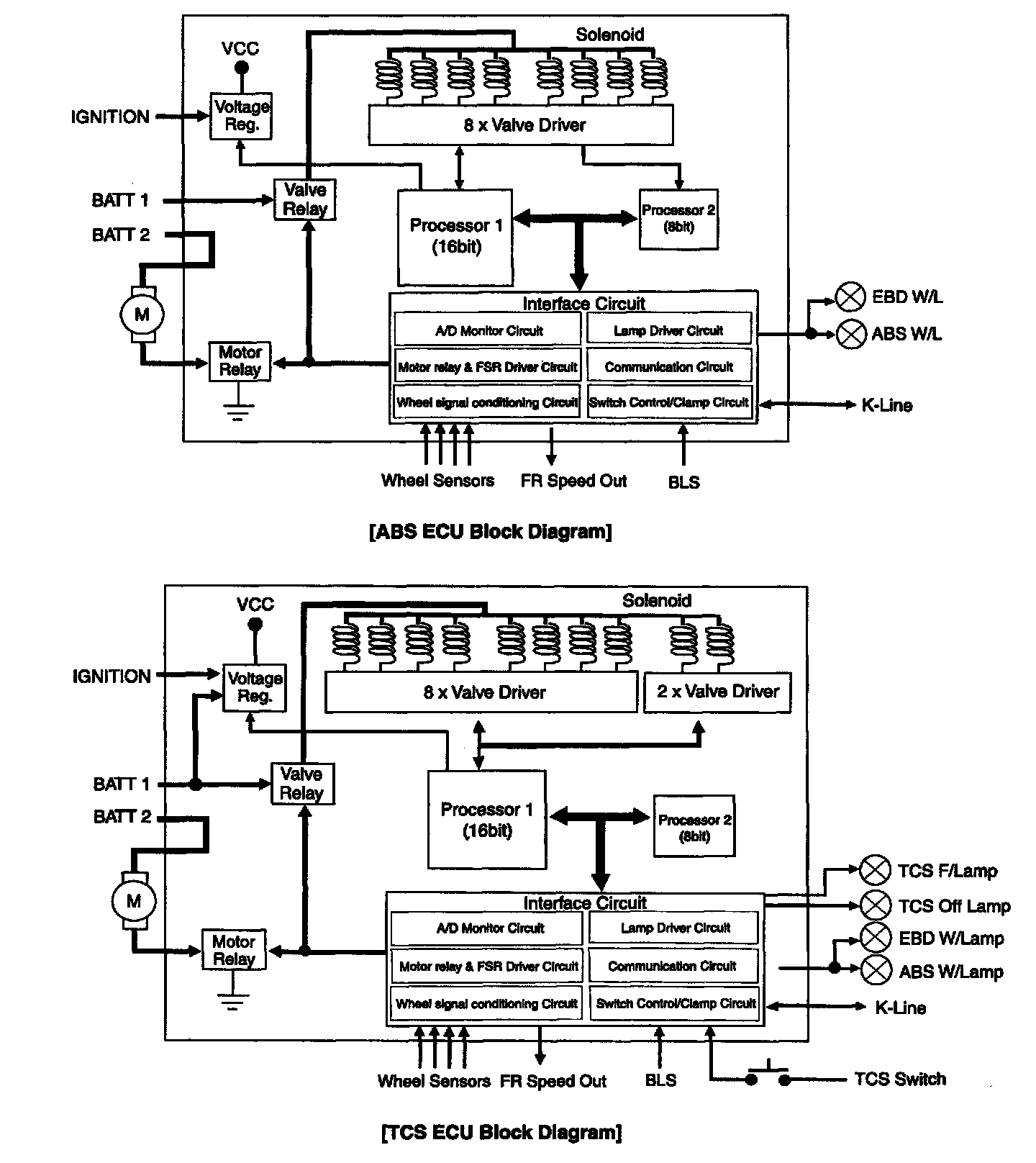

ABS ECU BLOCK DIAGRAM:

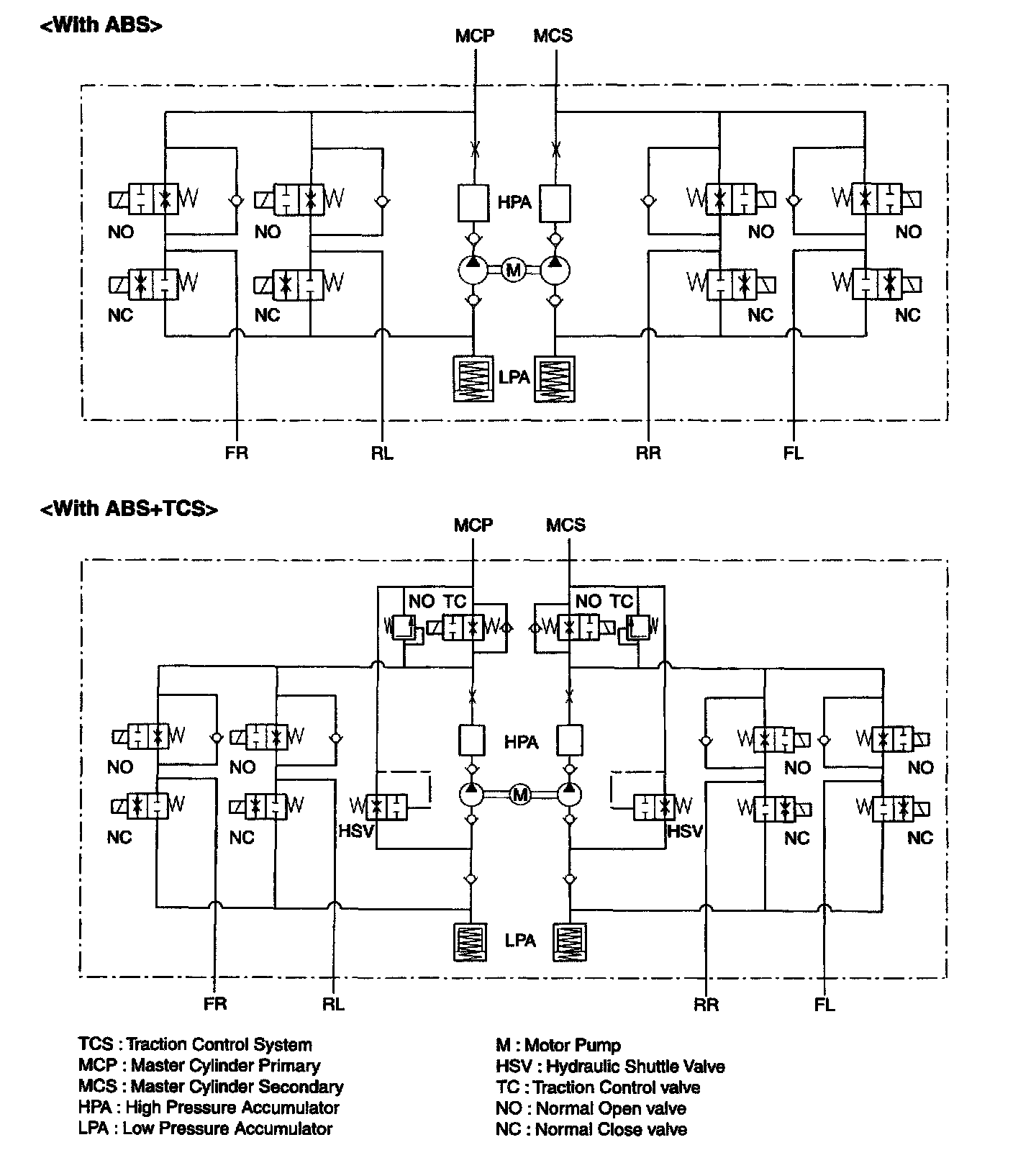

HYDRAULIC SYSTEM DIAGRAM:

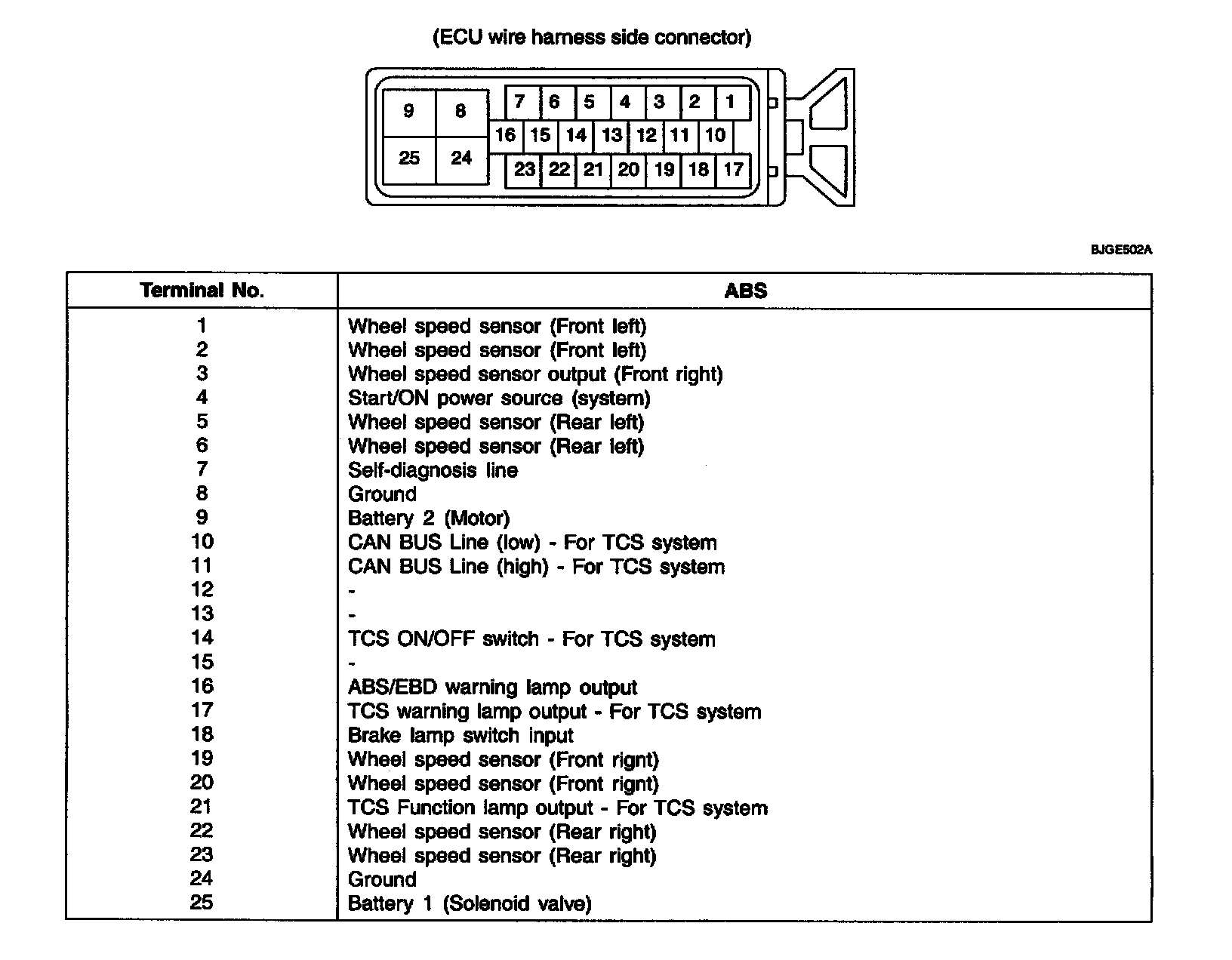

HECU CONNECTOR INPUT/OUTPUT:
CIRCUIT DIAGRAM:
Diagrams: Other diagrams referred to by name within these diagrams can be found at
Diagrams by Diagram Name.
