Horn, Stop Lights, Back-Up Lights

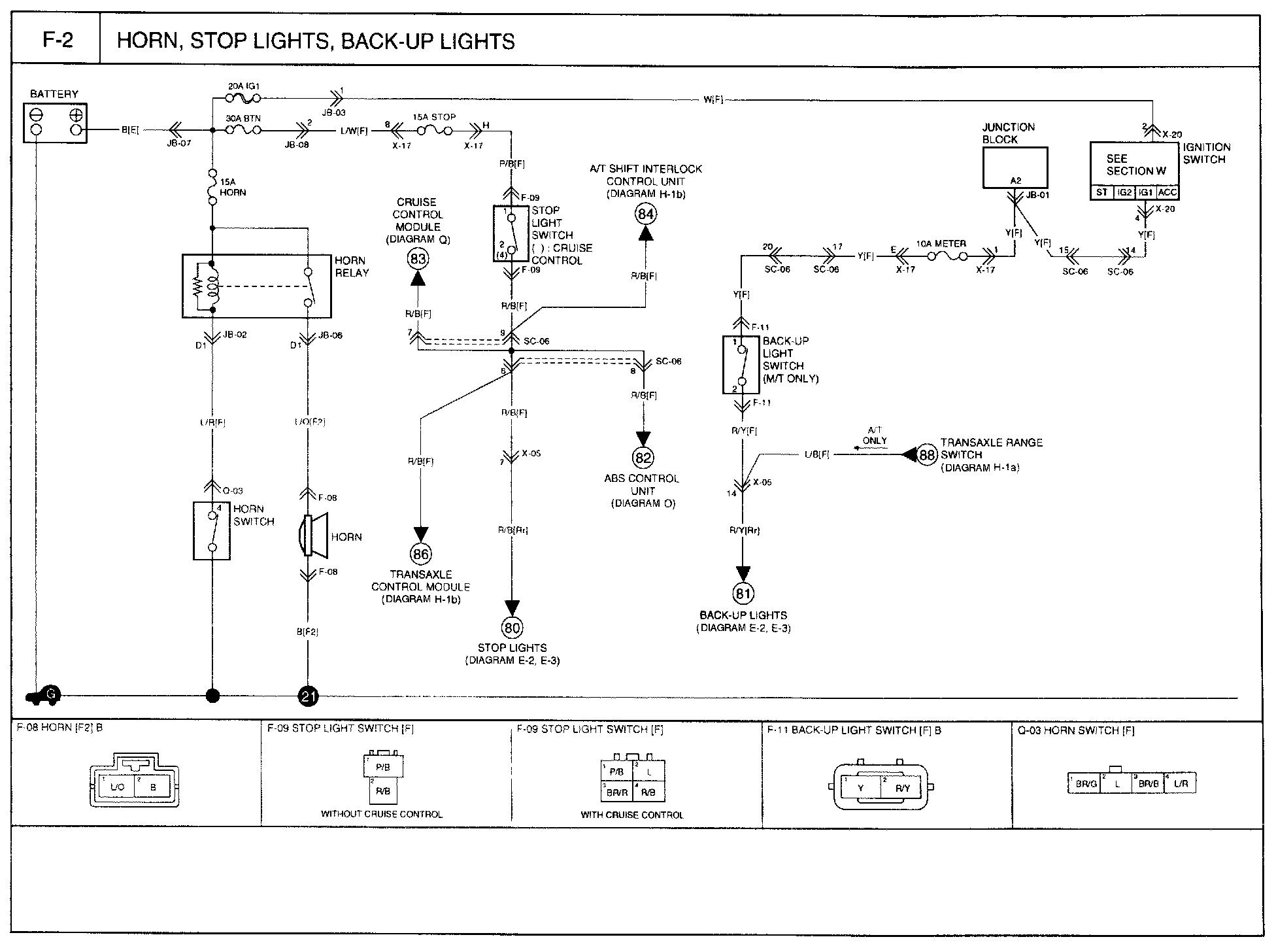

Diagram F-2:

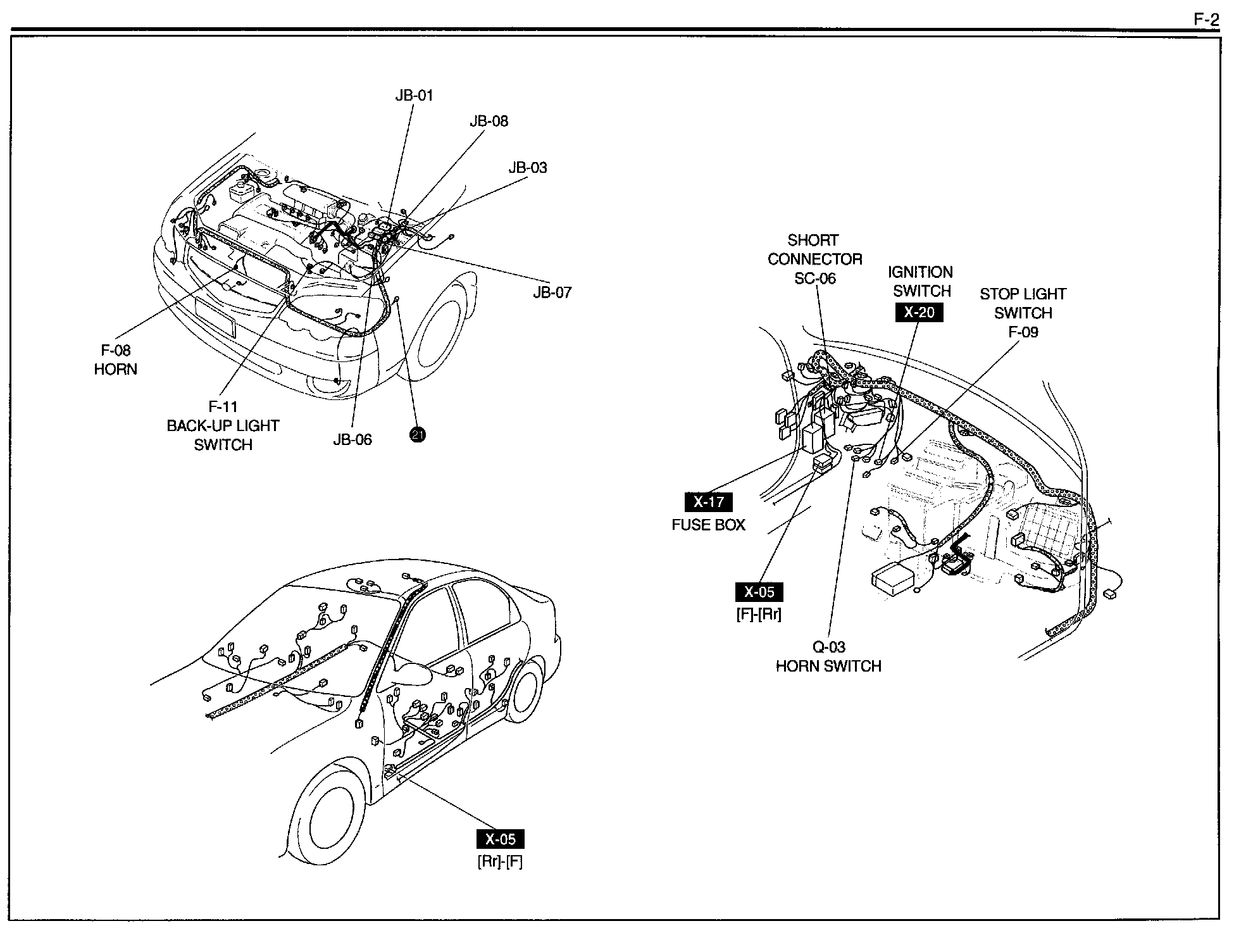

Routing View F-2:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
