Diagram B-1d
Diagram B-1d

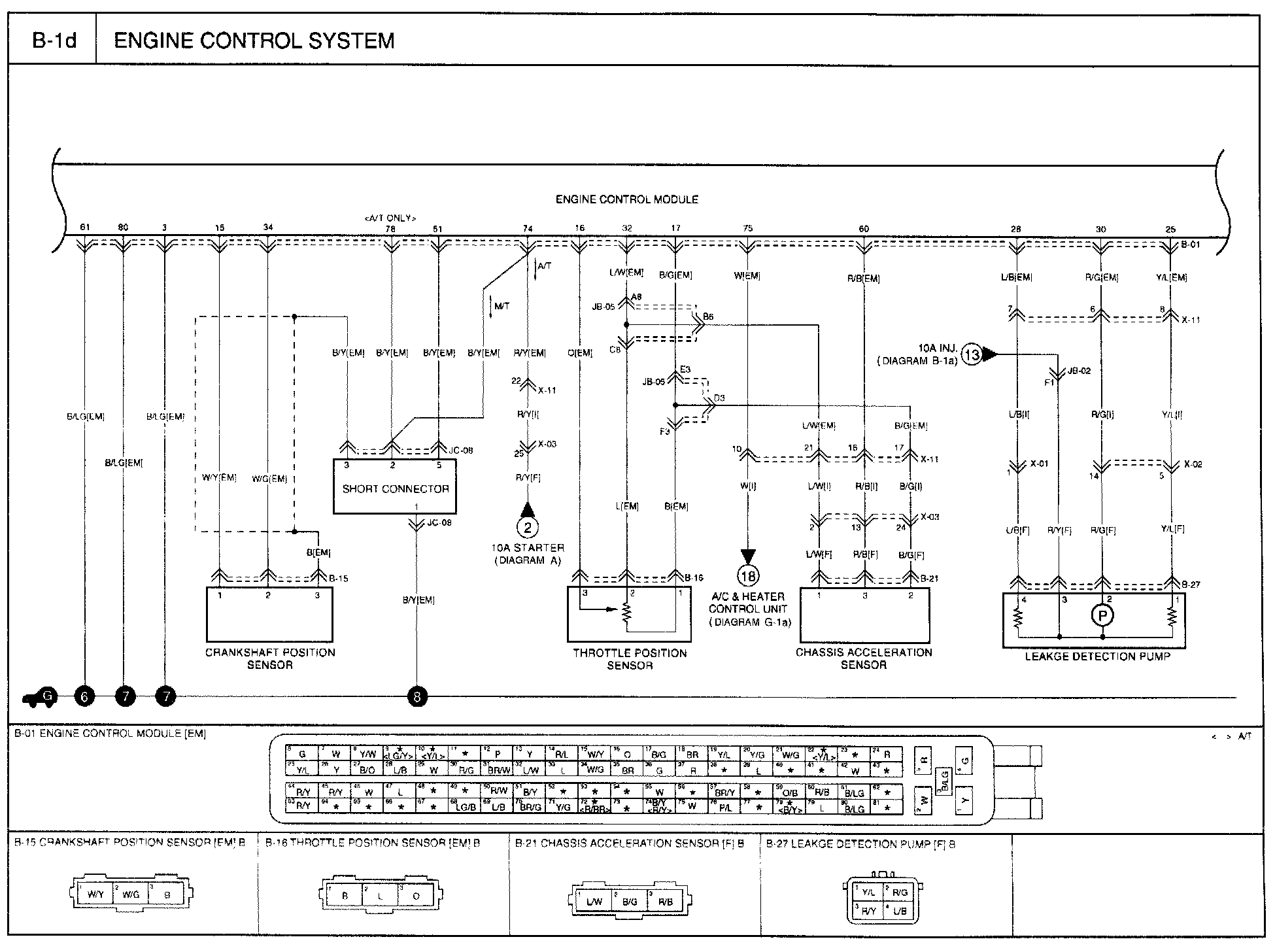

Diagram B-1d:

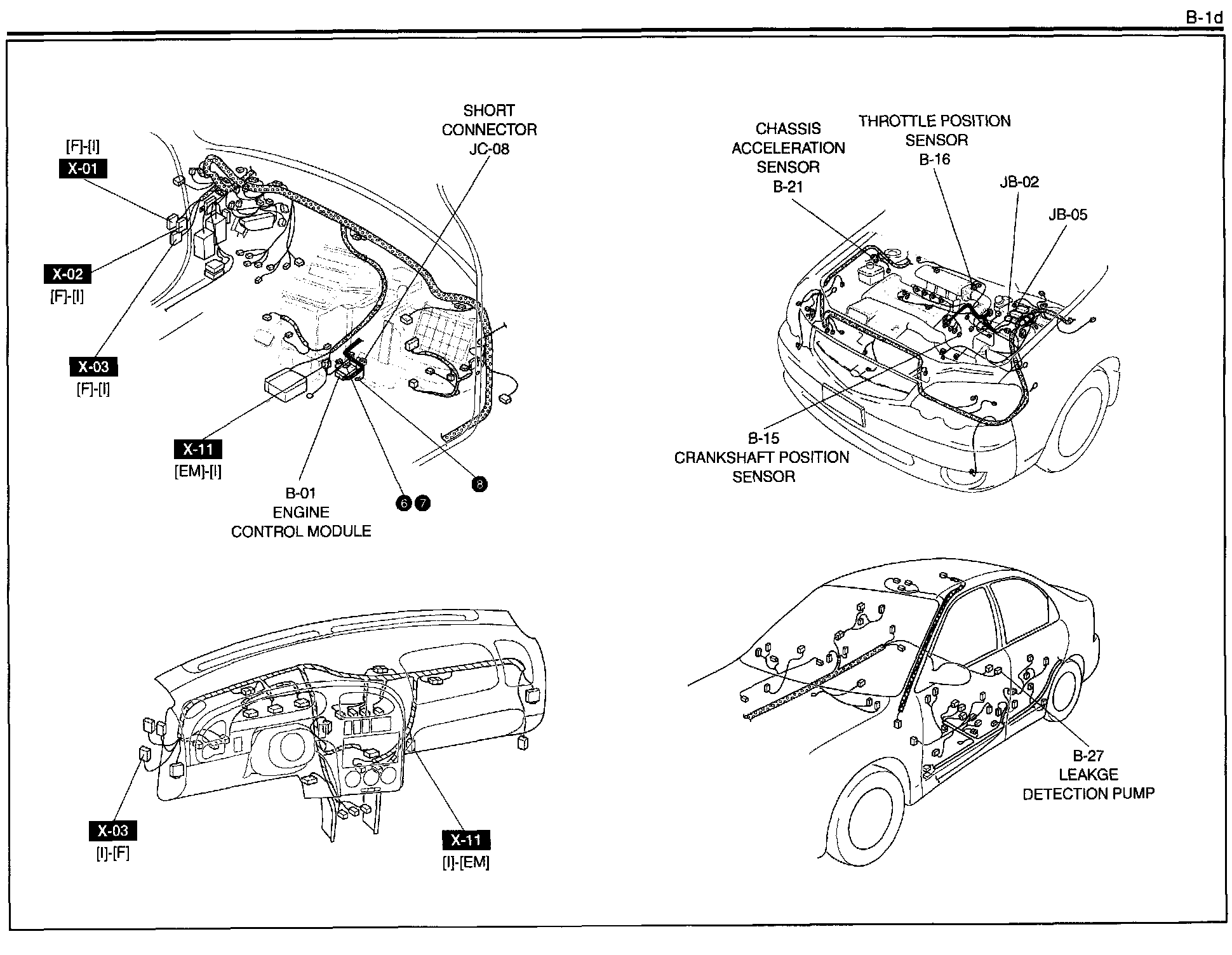

Routing View B-1d:
Next Diagram
Diagram B-1e
Previous Diagram
Diagram B-1c
Diagrams
: Other diagrams referred to by name within these diagrams can be found at
