Seat Temperature Element

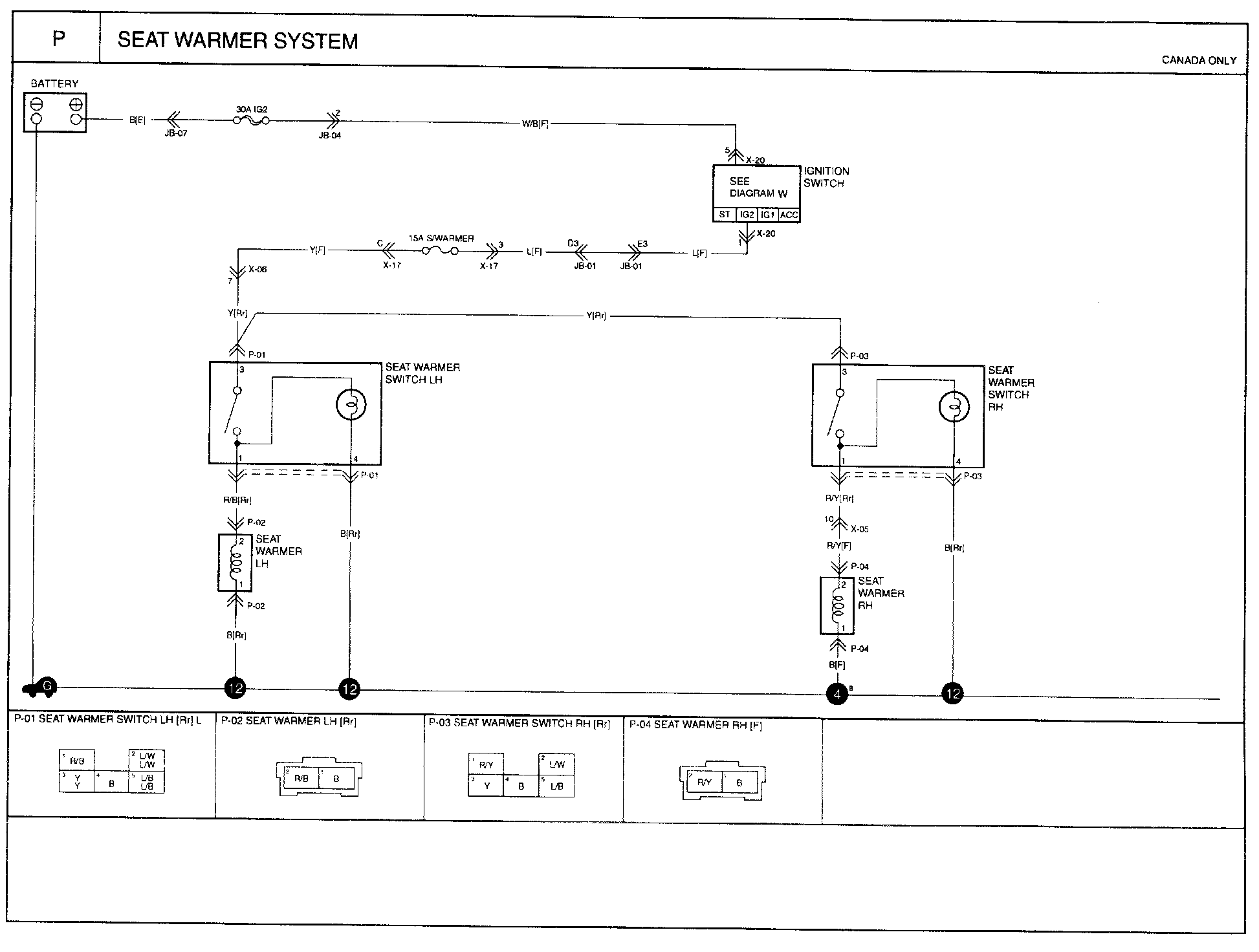

Diagram P:

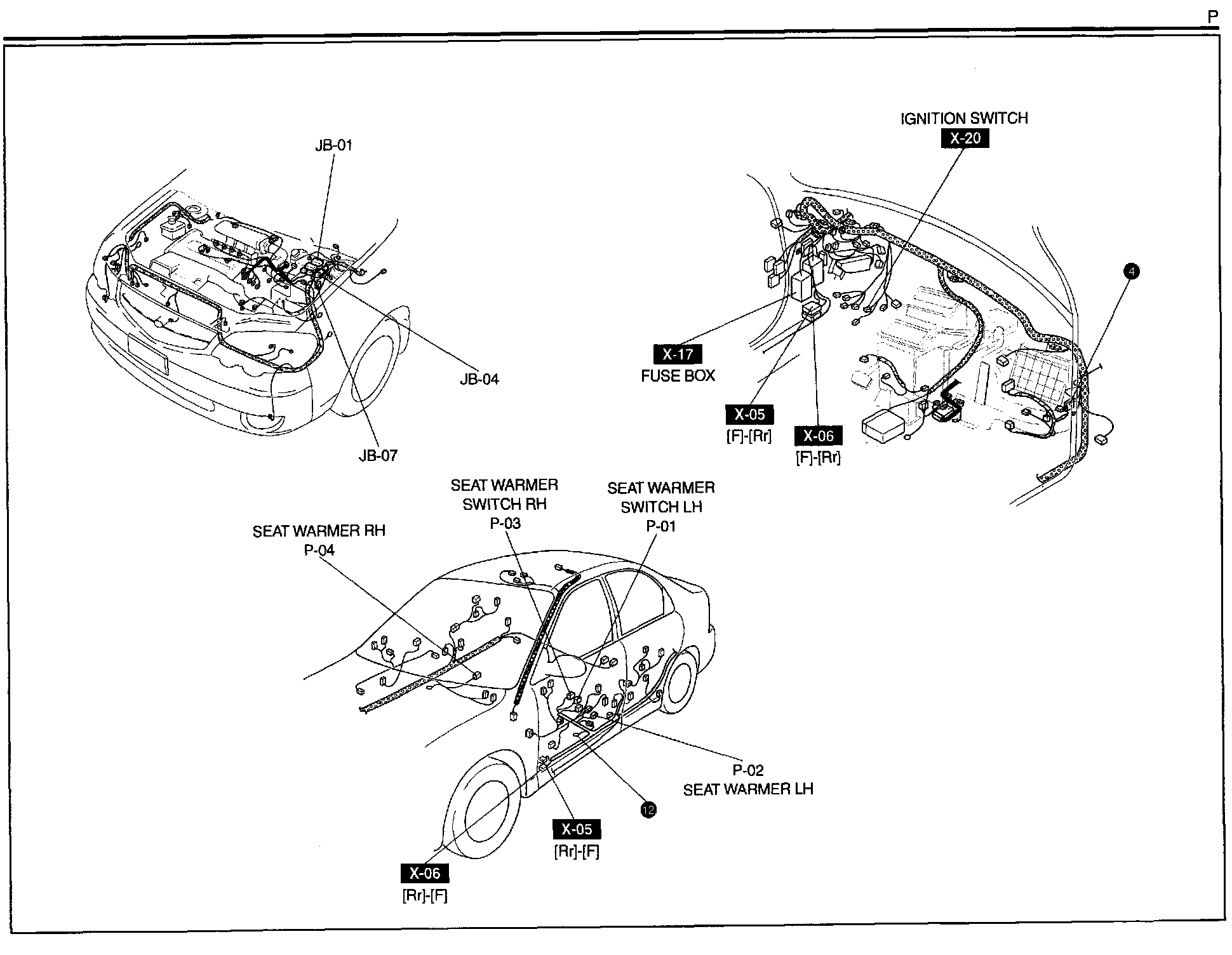

Routing View P:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
