Engine - Coolant Temperature Sensor/Switch: Service and Repair
Engine coolant temperature sensorRemoval

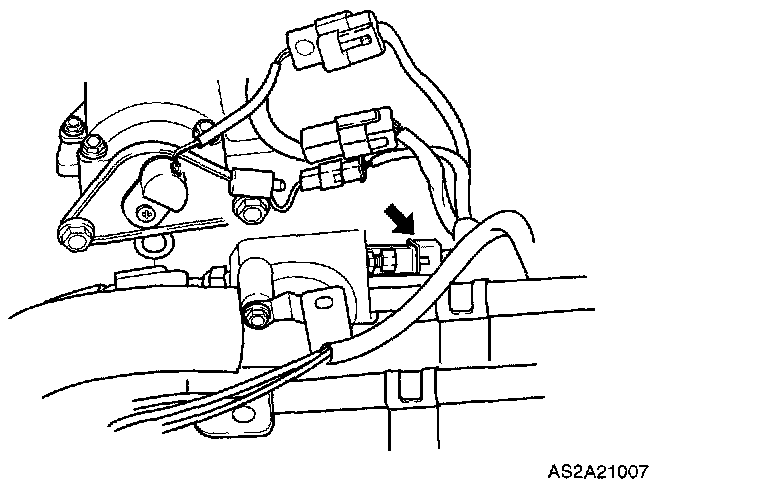

NOTE: Engine coolant temperature sensor is located near thermostat.
1. Disconnect engine coolant temperature sensor connector.
2. Remove engine coolant temperature sensor.
Installation

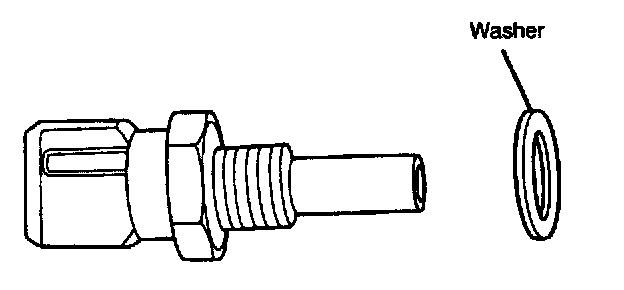

1. Install a new washer and engine coolant temperature sensor onto engine.
Tightening Torque: 18 - 22 lb-ft (25 - 29 N.m, 2.5 - 2.9 kg-m)
2. Connect engine coolant temperature sensor connector.
3. Start engine and check for coolant leakage.
