Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
2004
>>
Spectra L4-1.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Locations
>>
Connector Locations
>>

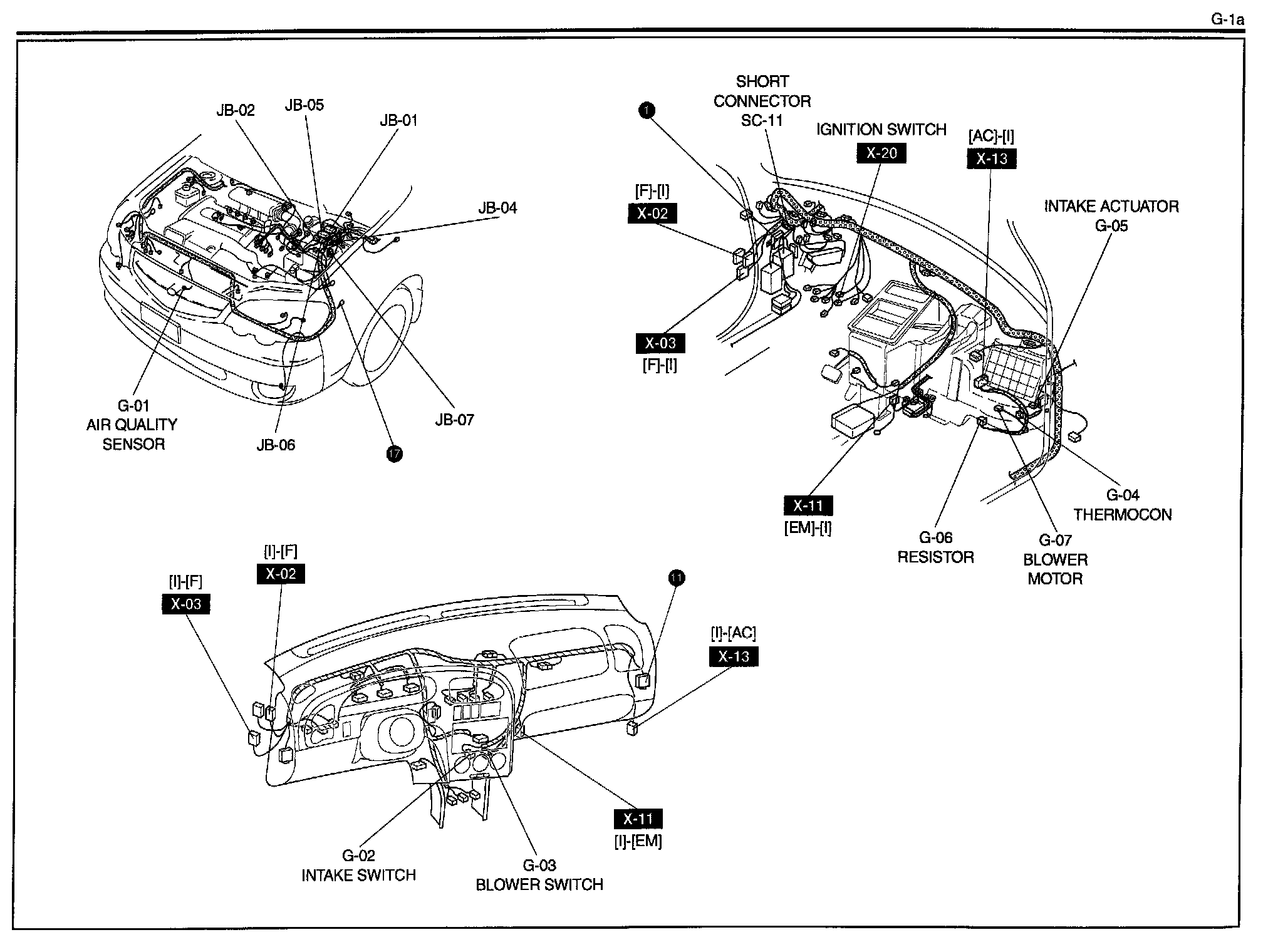

G-1a - Heater & Air Conditioner System
G-1a - Heater & Air Conditioner System
G-1a - Heater & Air Conditioner System Harness / Connectors Symbols:
