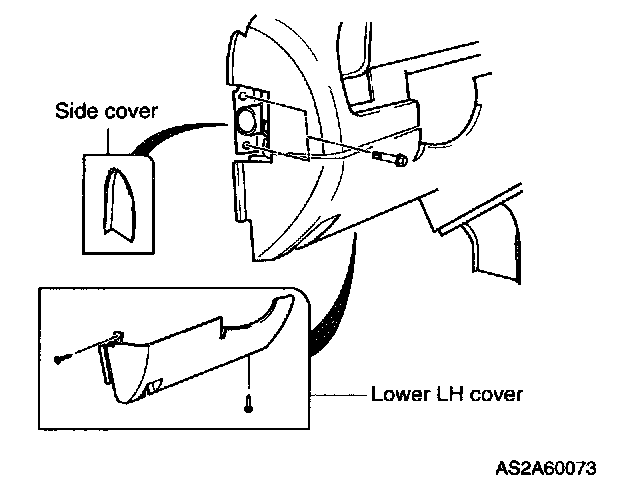

Lower LH Cover

Removal
1. Remove hood release handle. Refer to "Hood Release Handle".




2. Remove three mounting screws.


Installation
1. Mount lower LH cover in instrument panel.
2. Install three mounting screws.
3. Install hood release handle.


Inspection
Inspect for signs of any damage or wear and replace as necessary.
