Bezel/Lens

Removal

Note:
a. Do not touch face of a gauge or back of lens with fingers. It will leave a permanent fingerprint.
b. Use care in removing instrument from instrument cluster case. Make sure instruments are face-up when separating bezel/lens from cluster case.

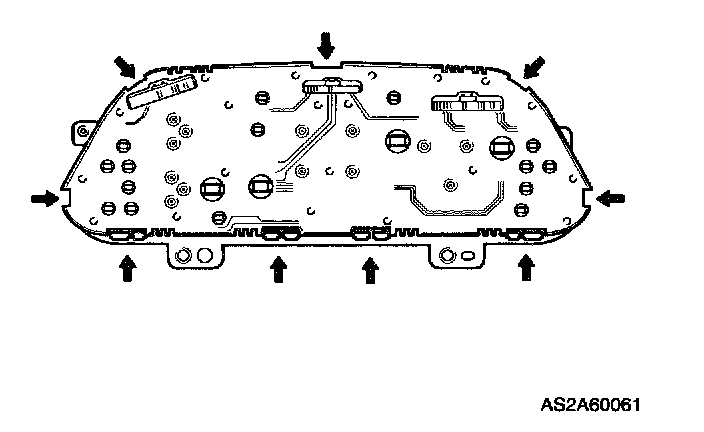

1. With instrument cluster bezel/lens downward on a soft, clean shop cloth, press on each of bezel tabs going out around unit while using pressure between bezel/lens and cluster.

Do not remove bezel/lens. Make sure each tab is not in a locked position in its mating slot.

2. Place instrument cluster case on its back, bezel/lens facing up, and carefully pull bezel/lens away from cluster case.

Installation
Install in reverse order of removal.
