Back-Up, License,Tail,Stop,Position, and High Mount Stop Lights

Diagram E-2:

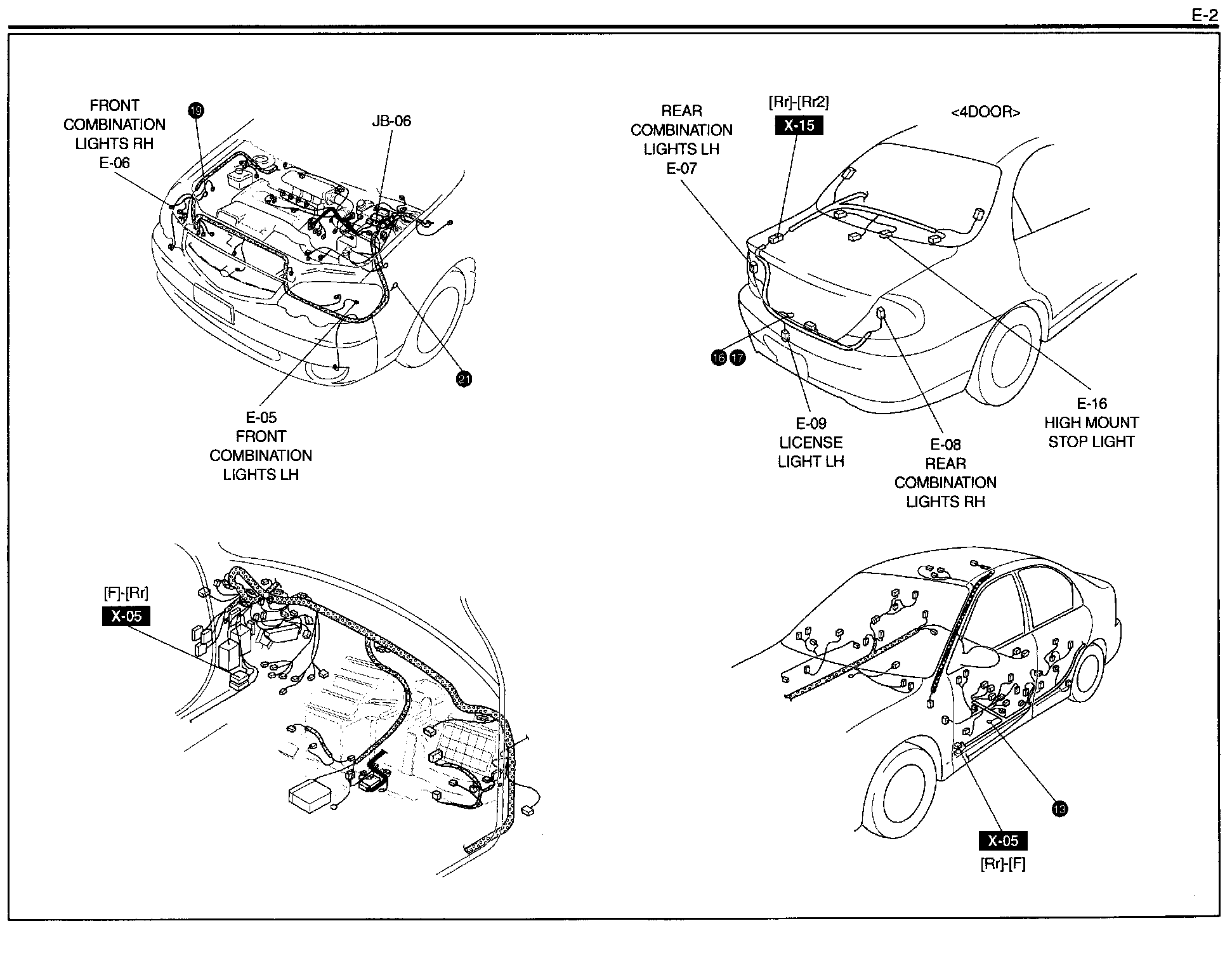

Routing View E-2:






Diagram E-3:

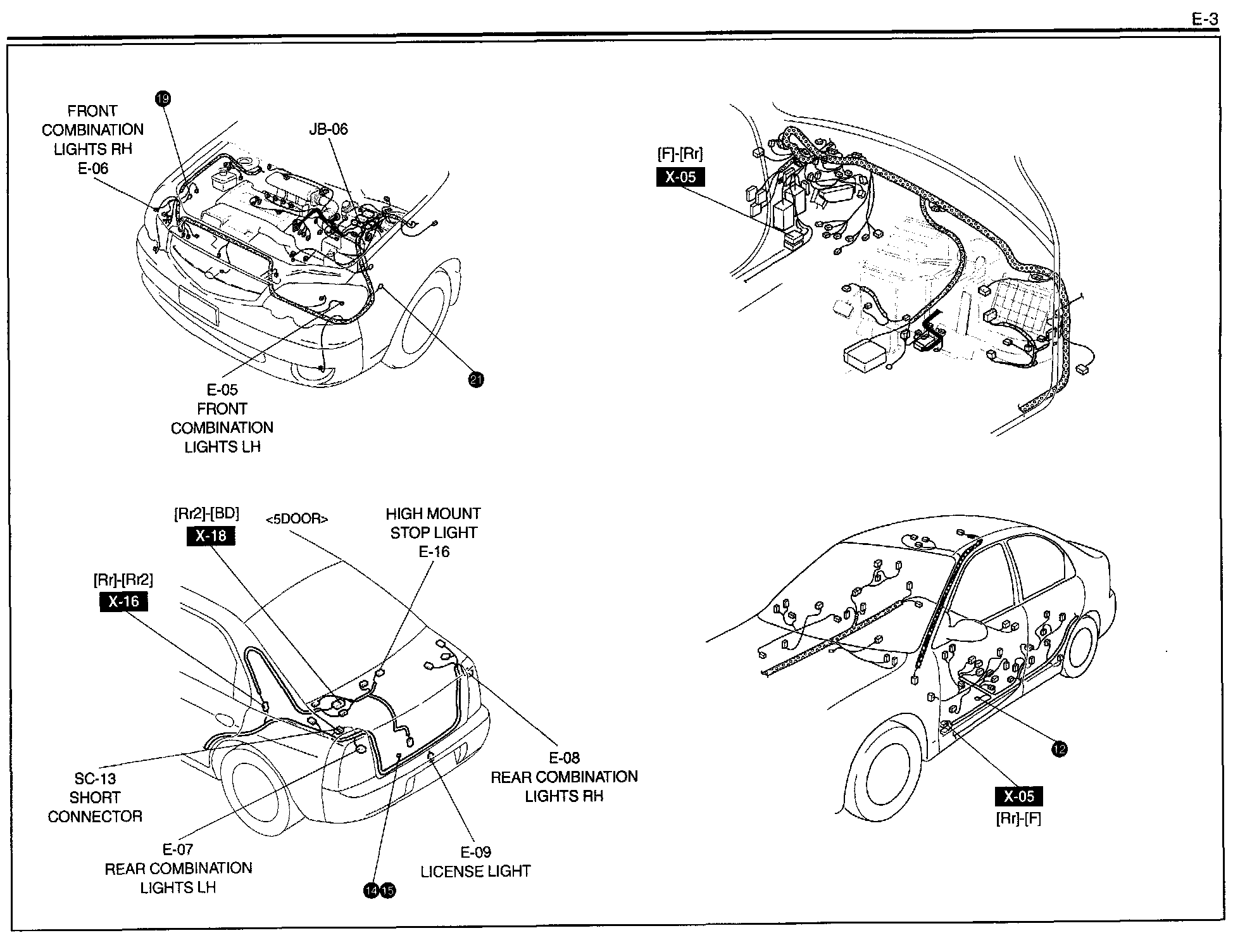

Routing View E-3:







Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
