Hazard Warning Lamps: Service and Repair

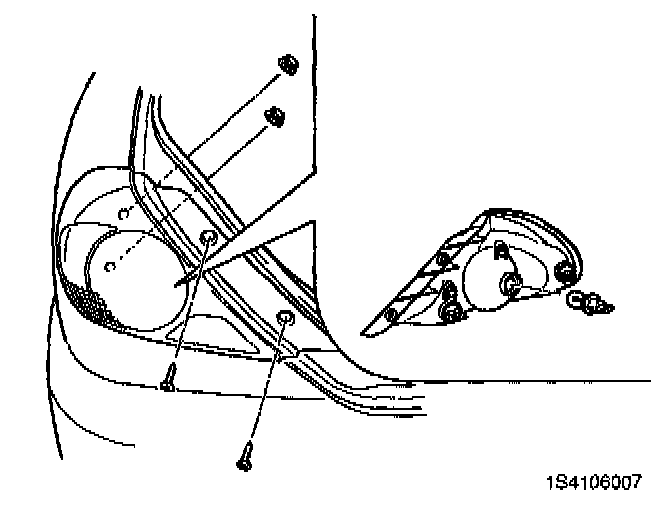

4 DOOR

Rear combination light assembly

Removal
1. Disconnect negative battery cable.
2. Disconnect electrical connector.




3. Remove two screws and two nuts attaching rear combination light assembly to vehicle.
4. Remove light assembly.

Installation
1. Position light assembly on vehicle with studs through mounting holes on vehicle.




2. Install two screws and two nuts on rear combination light.
3. Connect electrical connector.
4. Connect negative battery cable.

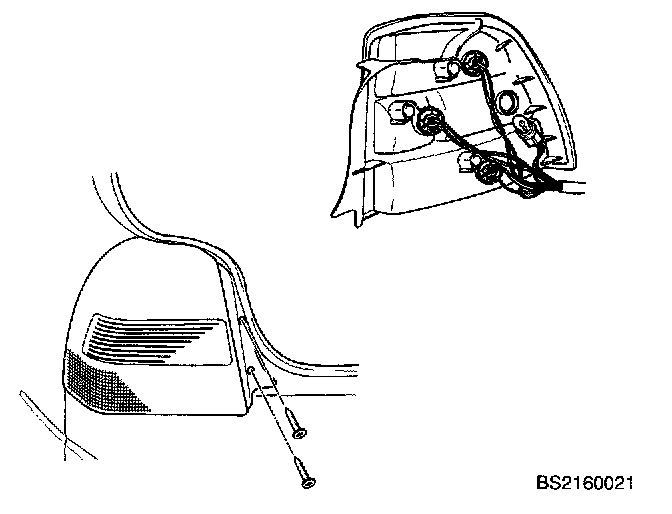

5 DOOR

Rear Combination Light Assembly

Removal
1. Disconnect negative battery cable.
2. Disconnect electrical connector.




3. Remove two screws attaching rear combination light assembly to vehicle.




4. From outside of vehicle, grasp combination light assembly push combination light assembly outside and combination light assembly and pull from vehicle using care not to damage gasket.

Installation
1. Install gasket on light assembly with pins through appropriate holes of gasket.
2. Position light assembly on vehicle with studs through mounting holes on vehicle.




3. Install two screws on rear combination light.
4. Connect electrical connector.
5. Connect negative battery cable.
