Removal and Replacement
4 DOORHeadlight/Combination light assembly
Removal
1. Open hood. Disconnect negative battery cable.

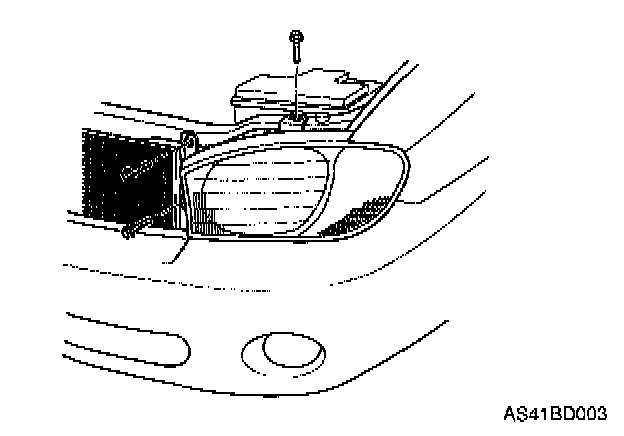

2. Remove radiator grille.

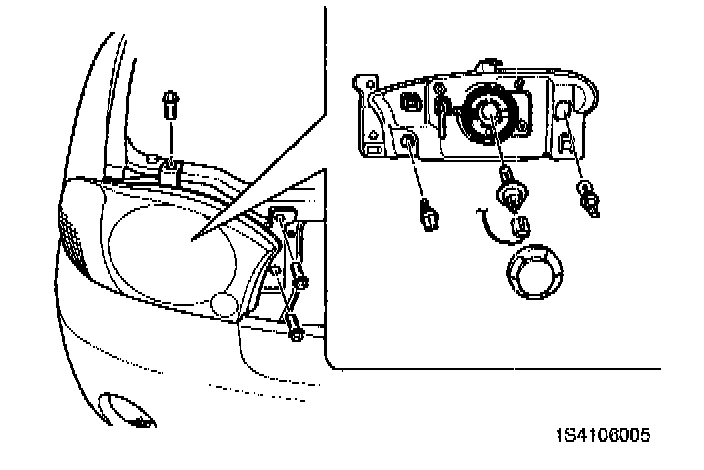

3. Remove three bolts attaching headlight and combination light assembly to vehicle.
4. Pull headlight and combination light assembly forward clear of vehicle.

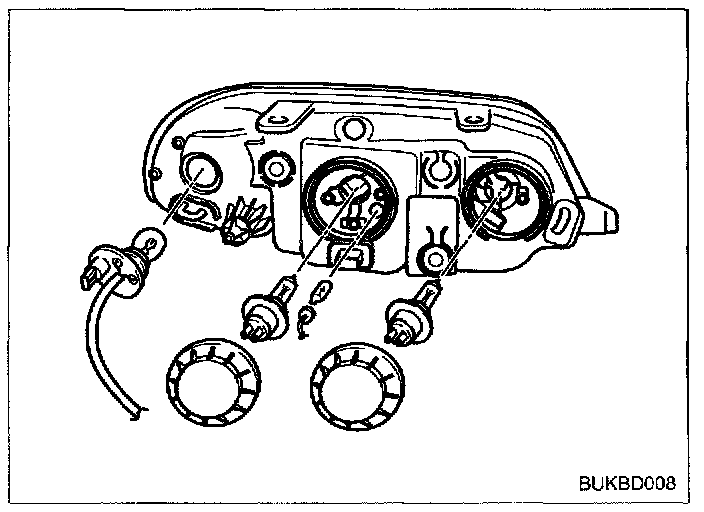

5. Rotate back cover counterclockwise to disengage from light assembly.
6. Pull socket with bulb straight out of headlight and combination light assembly.
Installation
1. With bulb installed in socket, align grooves of socket with bosses on headlight and combination light assembly and insert socket into headlight and combination light assembly.
2. Align back cover with headlight and combination light assembly and install, turning clockwise until properly engaged.
3. Position headlight and combination light assembly on vehicle and install three bolts.
Tighten headlight and combination light assembly bolts to 70 - 96 lb.in (8 - 11 N.m, 80 - 110 kg.cm)
4. Connect electrical connector to headlight and combination light assembly.
5. Install radiator grille.
6. Connect negative battery cable.
5 DOOR
Headlight light assembly
Removal
1. Disconnect negative battery cable.

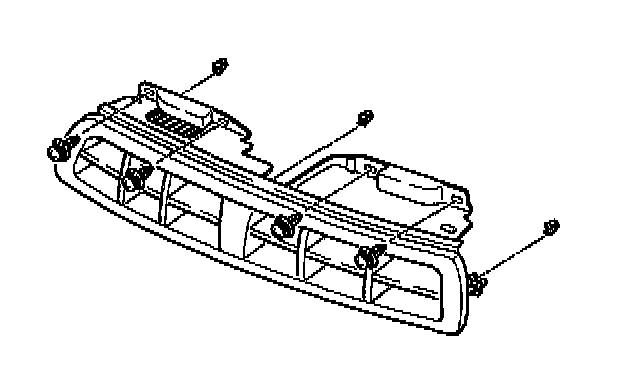

2. Remove radiator grille cover.
a. Remove twelve fasteners from cover.
3. Remove headlight and front combination light assembly.

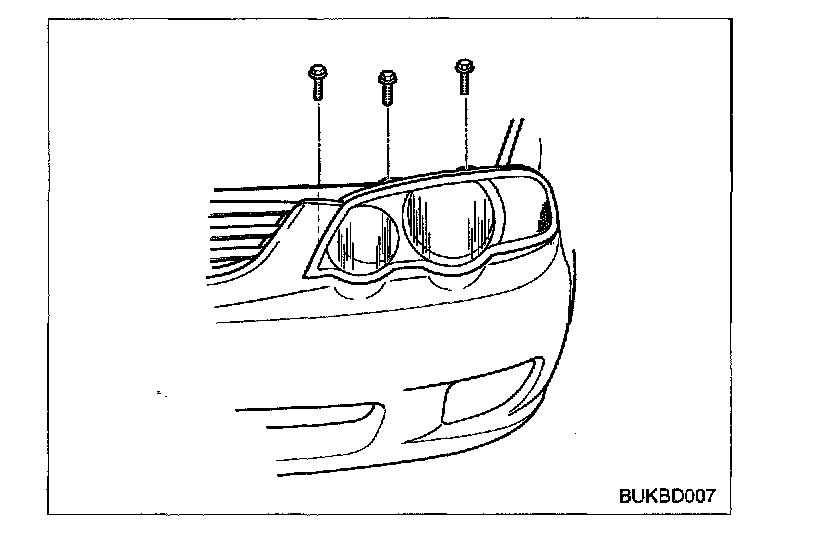

a. Remove three mounting bolts from top of light assembly.
b. Disconnect electrical connector headlight and front combination light assembly.
Installation
Install headlight and front combination light in reverse order of removal.
