License Plate Lamp: Service and Repair

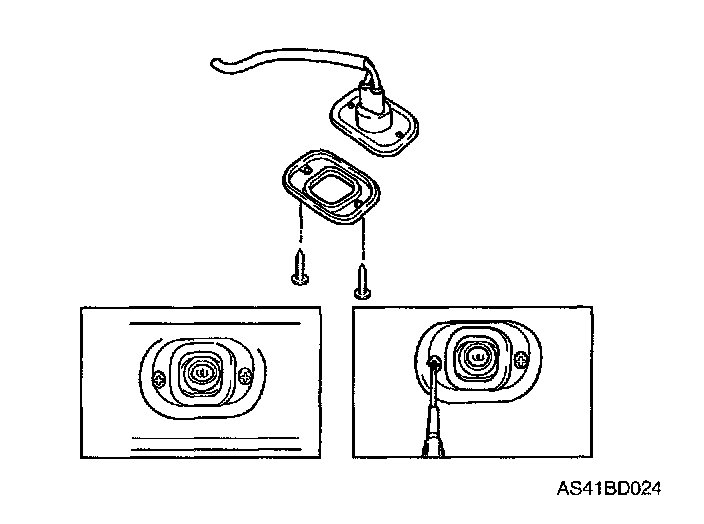

License plate light assembly

Disassembly




1. Remove two screws attaching each lens; remove each lens from bracket.
2. Remove bulbs.
3. Remove wiring harness from bracket.

Re-assembly
1. Install wiring harness on bracket.
2. Install bulbs.
3. Install each lens with two screws.
