Component Inspection
1.
Check
drive belt and pulley for wear; cracks, and fraying. Replace if necessary.
2.

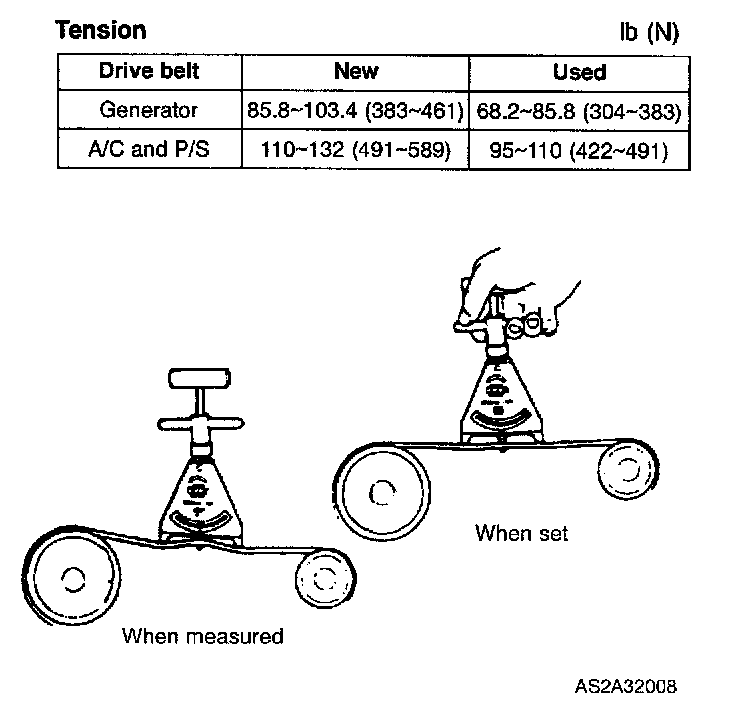

Measure
drive belt tension with a tension gauge.
3.

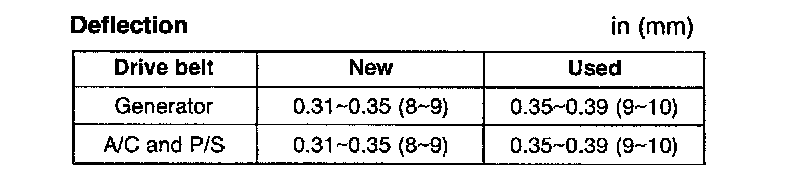

Measure deflection by applying moderate pressure
(22 lb [98 N]) midway between pulleys. Adjust if necessary.
