Fuel Line Coupler: Service and Repair

Quick connector

Installation

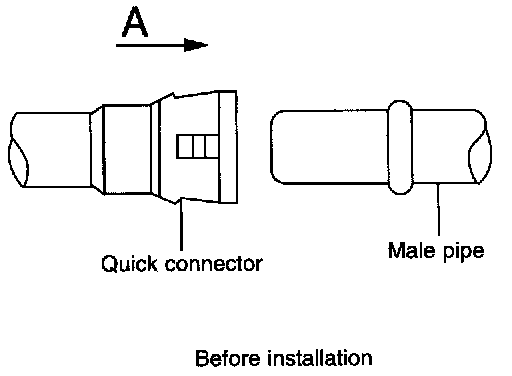

Position quick connector to male pipe (direction "A") and push quick connector until retainer lock in and a click is heard.

Removal

NOTE: Release fuel system pressure before servicing any fuel system connection.

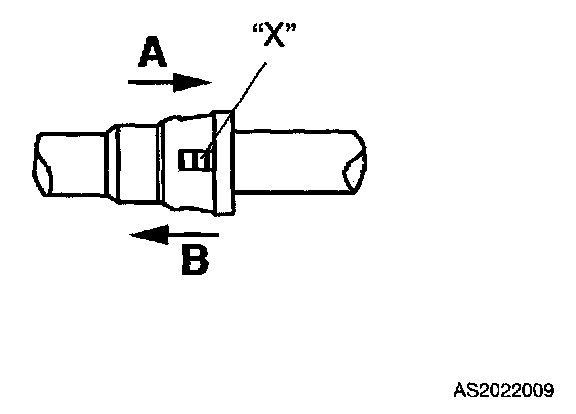

1. Push quick connector to direction"A".




2. Squeeze both sides of lock retainer and pull connection apart to direction "B".

CAUTION: Don't push and pull too hard.
