Electrical Diagrams

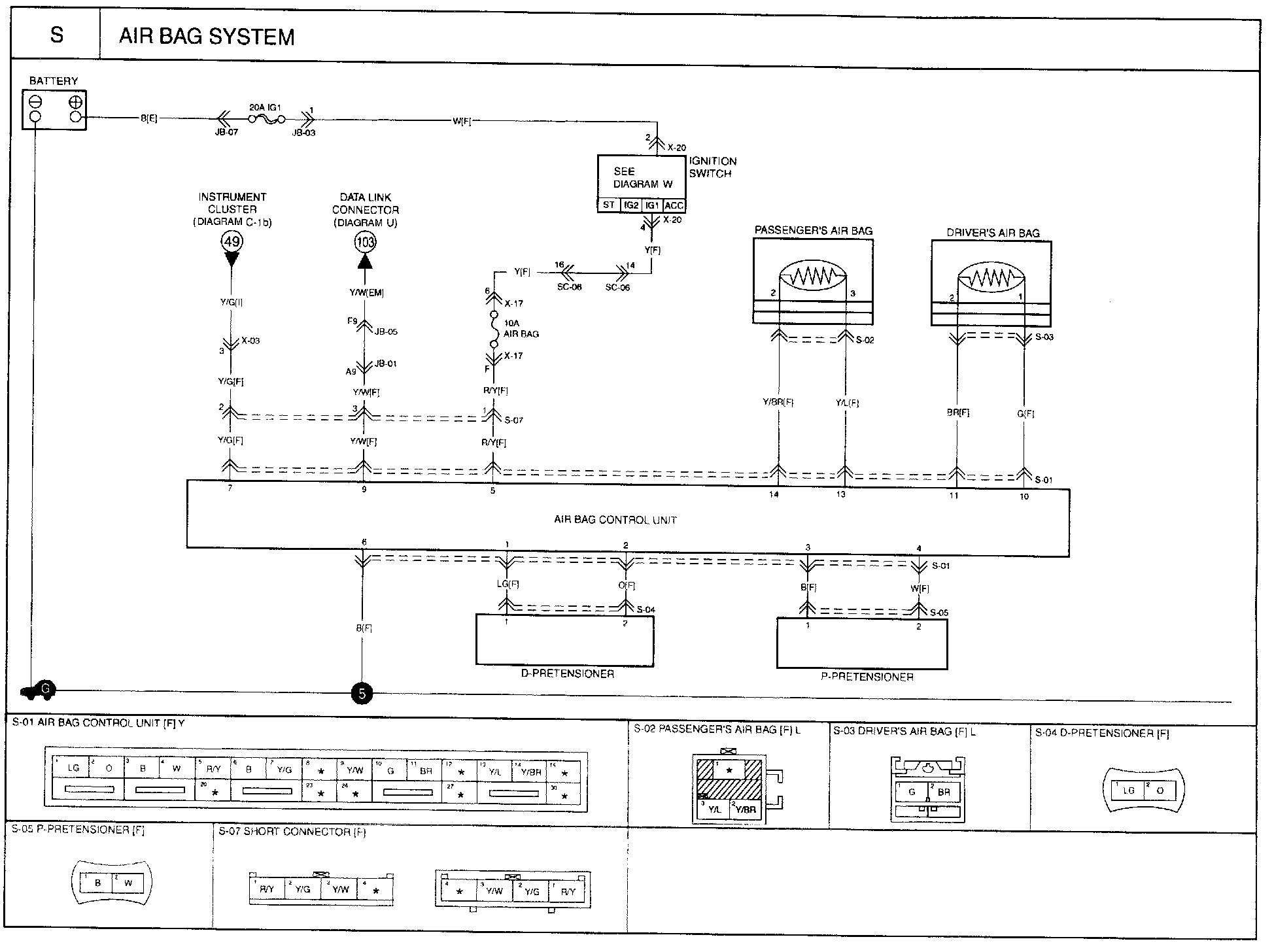

Diagram S:

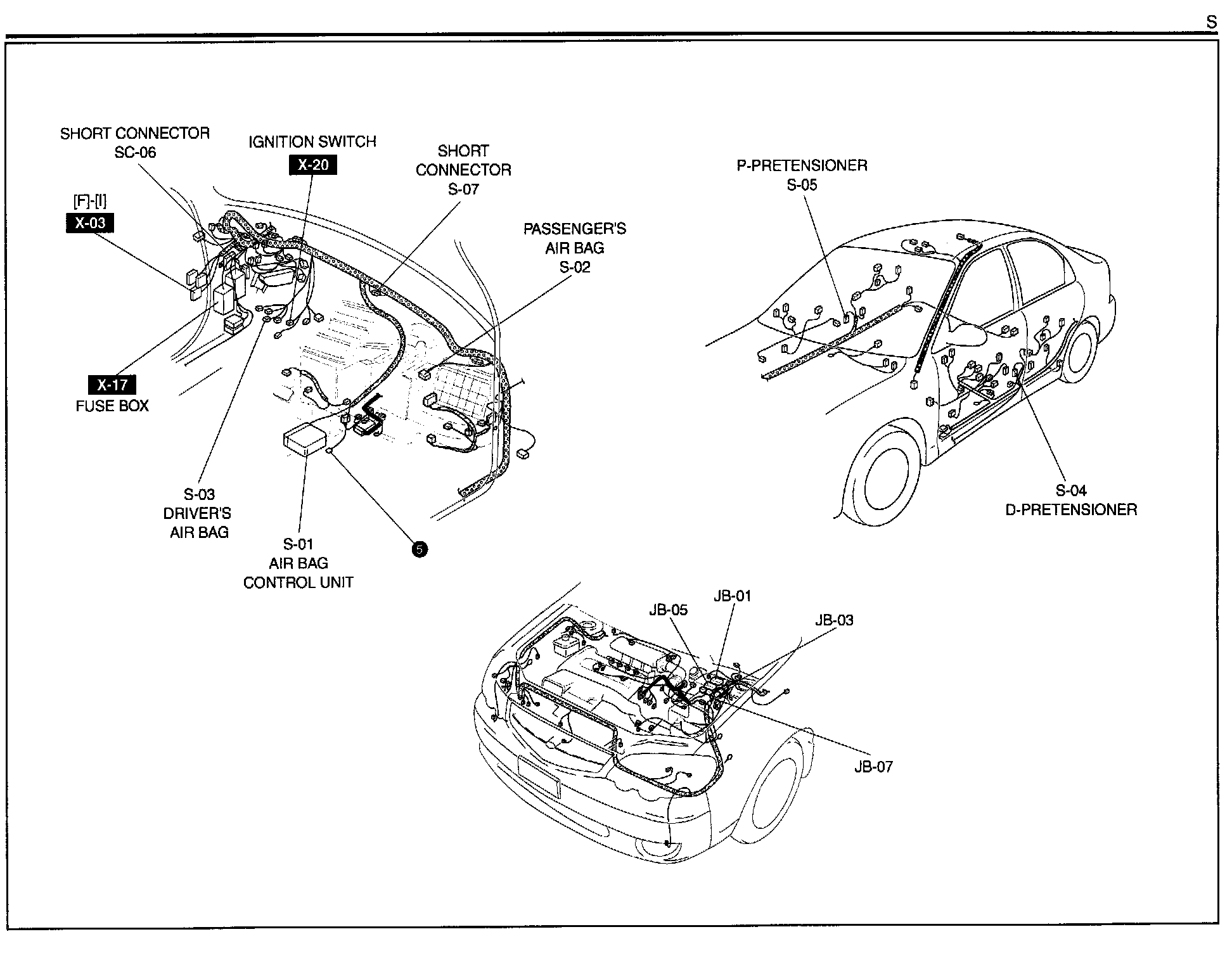

Routing View S:

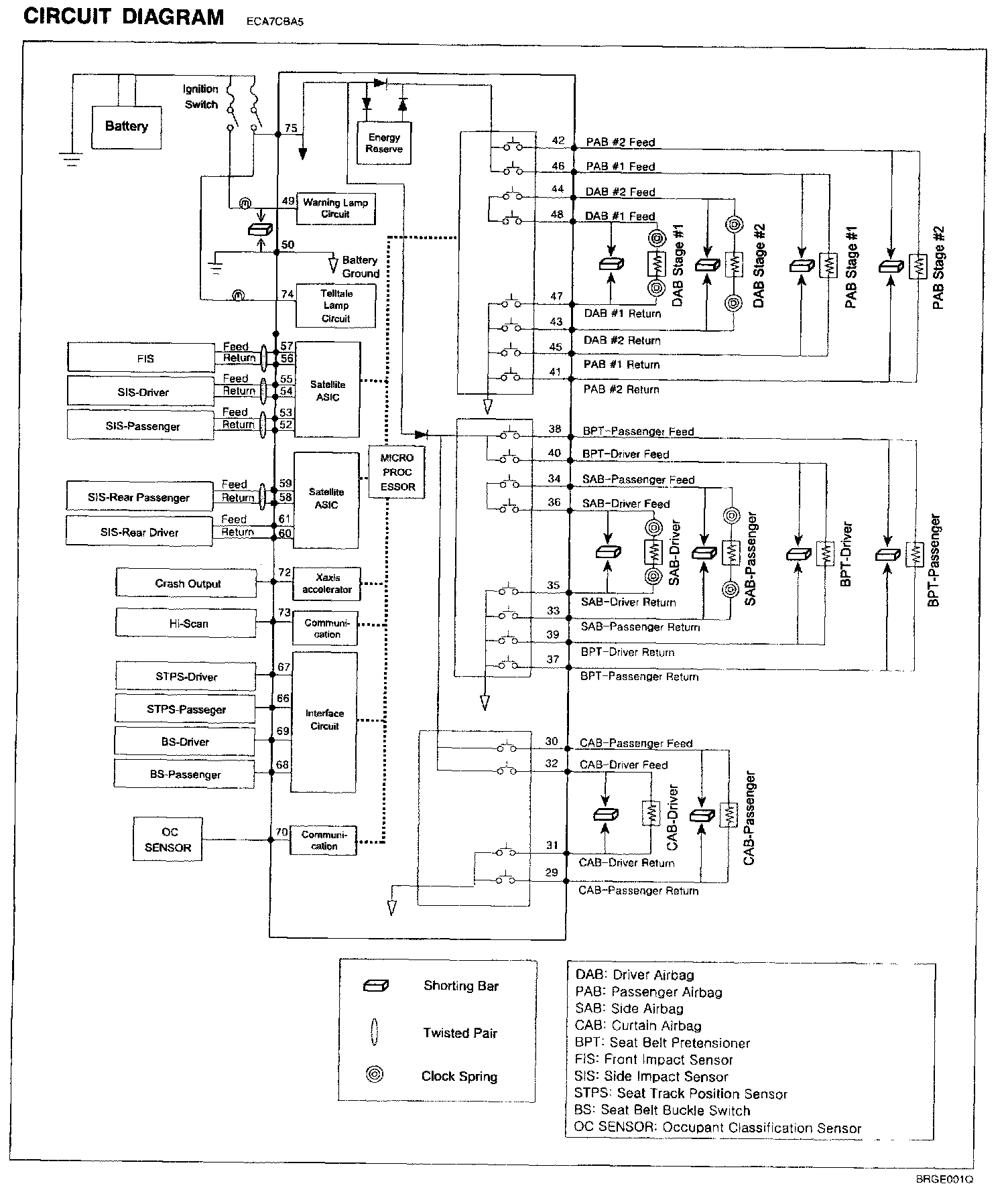

Restraints - Circuit Diagram:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
