Flywheel
Flywheel

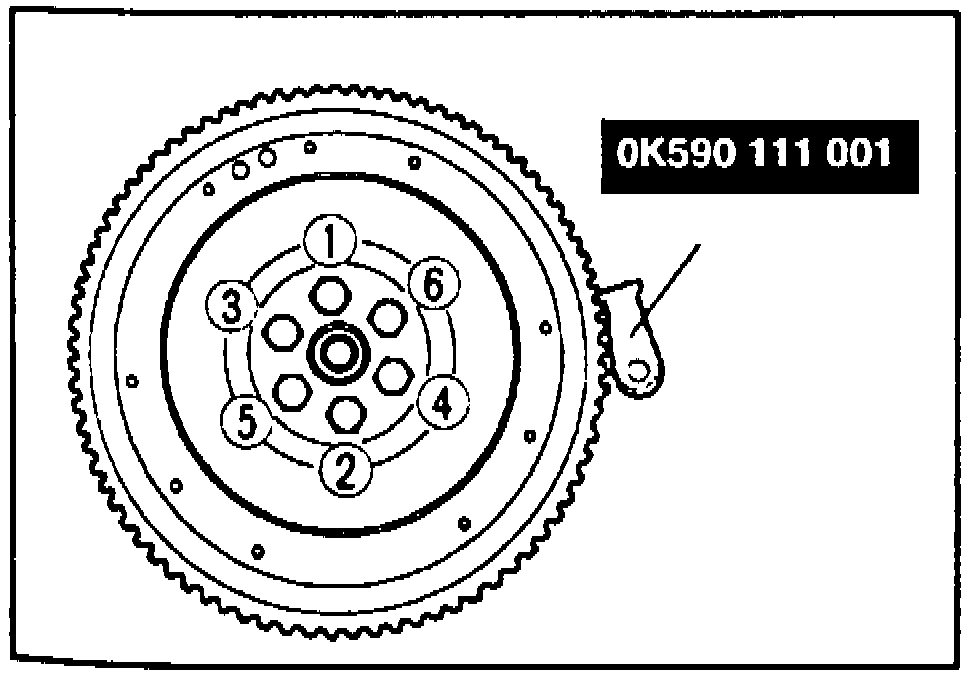

Fig. 23 Flywheel Tightening Sequence:
Tighten bolts in two or three steps to 97 - 103 Nm (71 - 75.9 ft. lb.)
