Tire Monitor System - Outside Radio Signals Affects TPMS
Model All ModelGroup Suspension System(21)
Number KT2008092201
Date Monday, September 22, 2008
Area N.America
Subject Outside Radio Frequency (RF) Affecting TPMS Operation
- Description

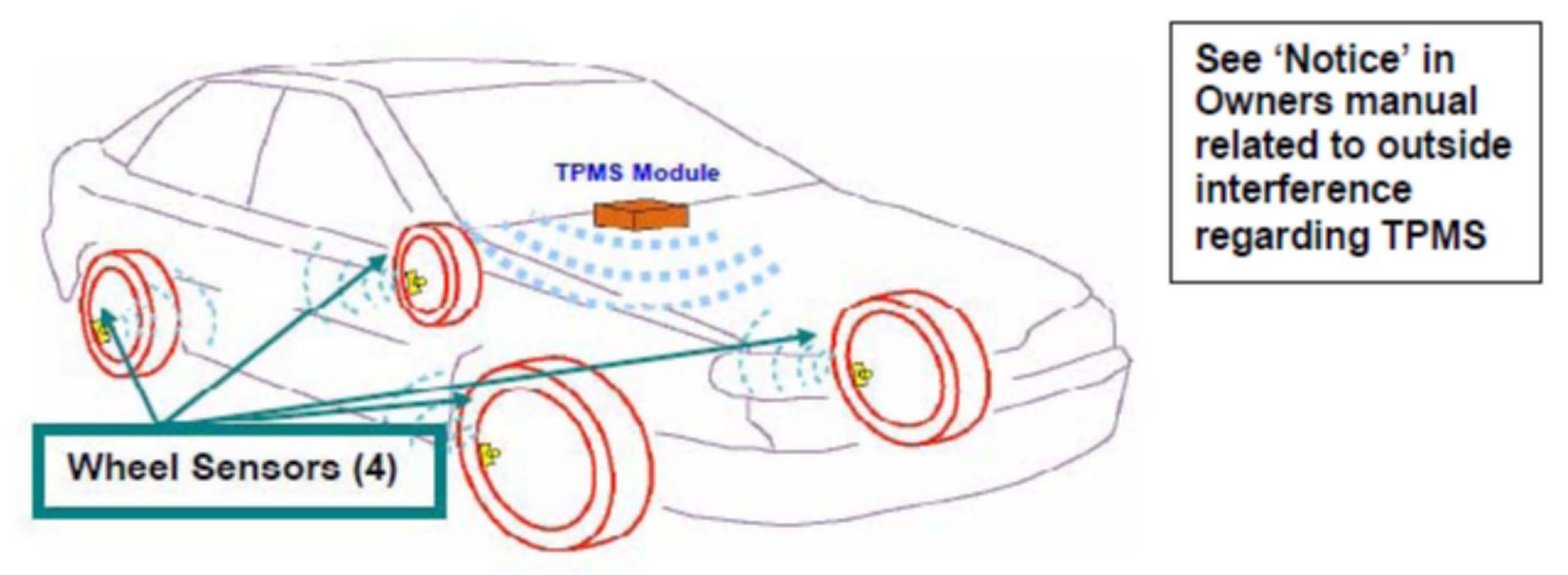

Outside Radio Frequency (RF) Affecting TPMS Operation
KMA has received several inquires reguarding TPMS light ON with or without Stored Diagnostic Trouble Codes in Memory. The following listed components/conditions may cause the control unit and wheel sensor communication to be interrupted and may cause multiple DTC's.
^ Some Cell Phone Chargers
^ Some Laptop Computers
^ Exciter Tool Connected While Driving the Vehicle
^ Some Portable Navigational Devices (GPS)
^ Aftermarket RKE, Burglar Alarm Remote Start Systems
^ Power inverters, Portable MP3 Players
^ HAM Radio Equipment
^ High Tension Power Lines and Radio Station Towers
^ Vehicle Anti-Theft Locating Devices
^ Portable DVD Players
^ Incorrect Instrument Cluster - Part application not correct
NOTE:
Always use the correct part for the proper model year and production range, failure to do so may result in vehicles which are difficult to repair and can be subject to warranty chargeback.
^ Excessive aftermarket wiring tie-wrapped and coiled on or near TPMS module. This may create a magnetic field causing concern.
