Operation CHARM
: Car repair manuals for everyone.
Home
>>
Kia
>>
2004
>>
Spectra L4-1.8L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Description and Operation
>>
Automatic Transaxle
>>

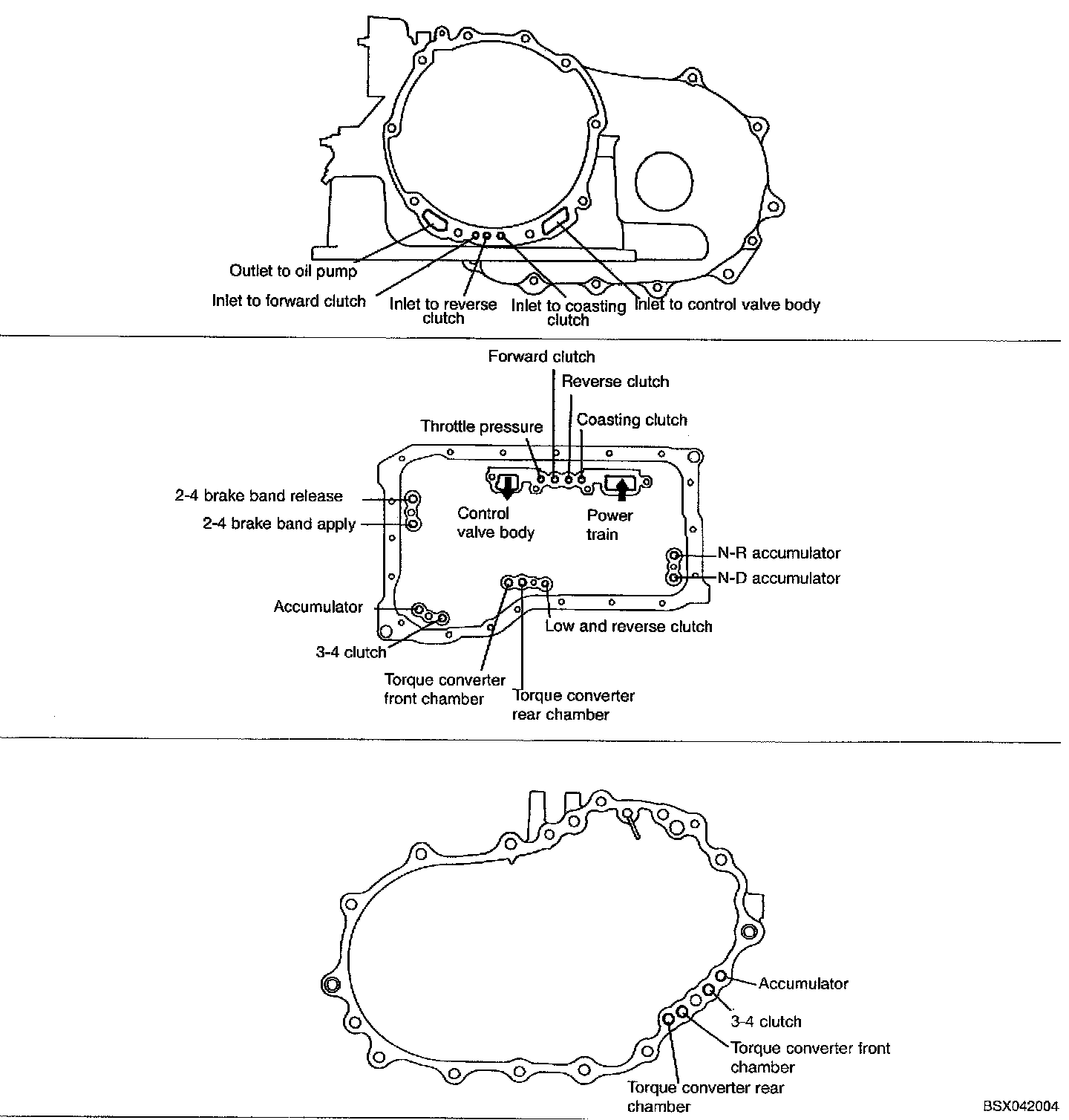

Fluid Passage Locations
>>
Transaxle Case
Transaxle Case
