One-Way Clutch No. 2 and Planetary Carrier Assembly
One-way clutch No. 2 and planetary carrier assemblyDisassembly

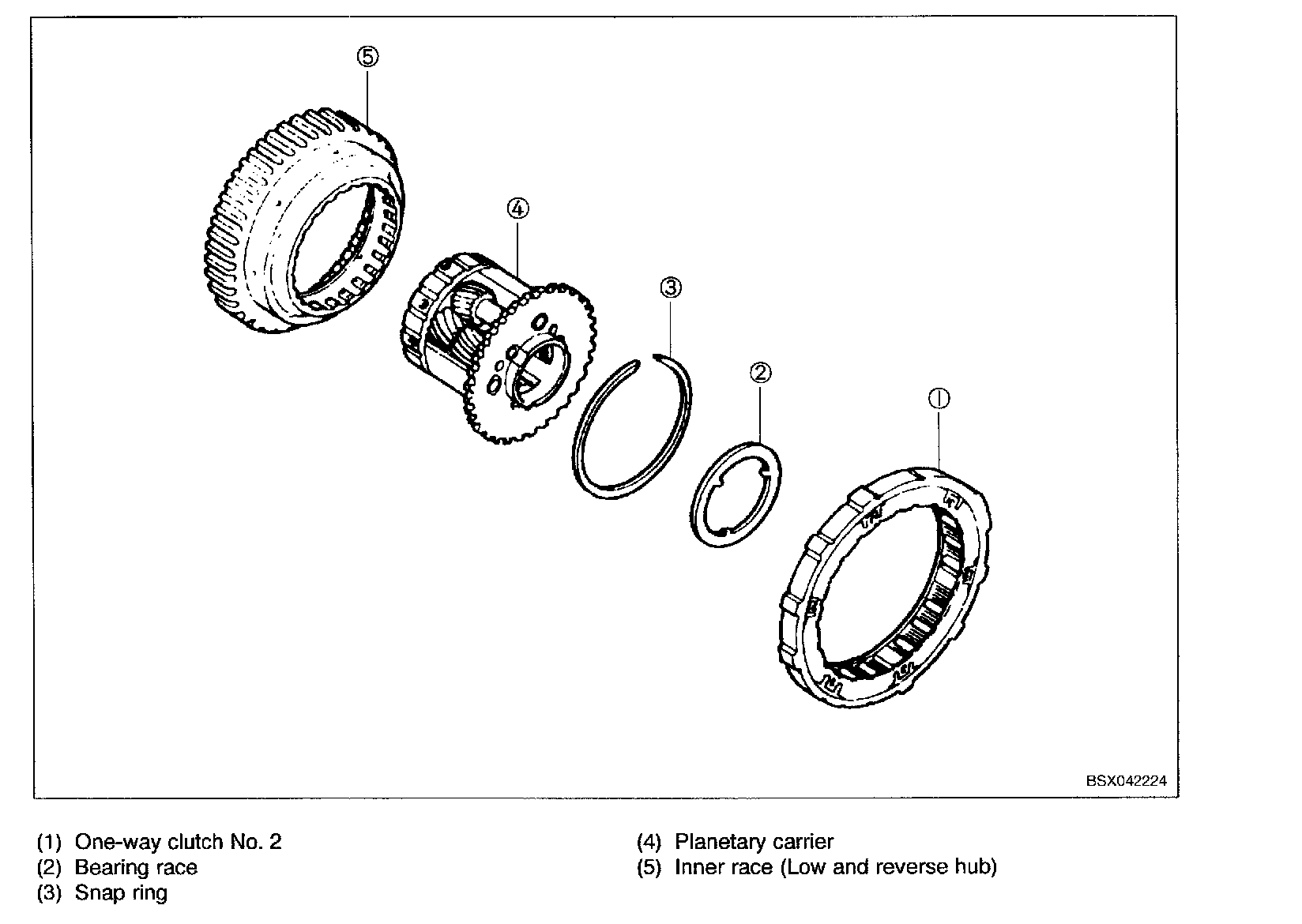

1. Disassembly in order shown in figure.
Inspection
One-way clutch No. 2
1. Check for the following and repair or replace as necessary:

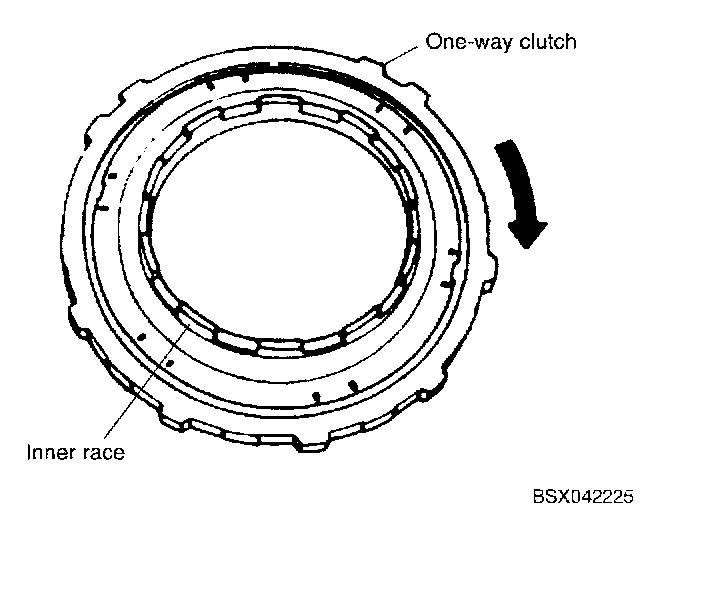

Notice: Assemble one-way clutch and inner race, then verify that one-way clutch rotates only clockwise and smoothly.
a. Damaged or worn one-way clutch and operation.
b. Detached roller.
Planetary carrier
1. Check for the following and repair or replace as necessary:
a. Damaged or worn gear and operation.

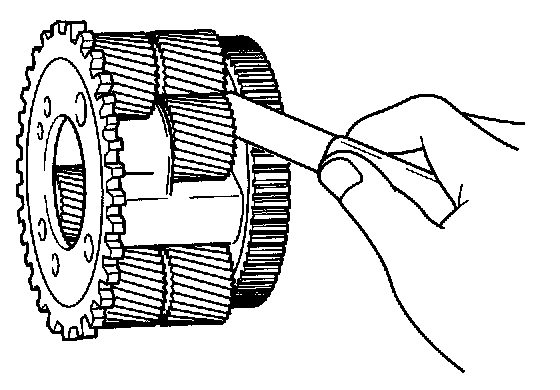

b. Clearance between pinion washers land planetary carrier.
Clearance: 0.008 - 0.028 inch (0.2 - 0.7 mm)
Re-assembly

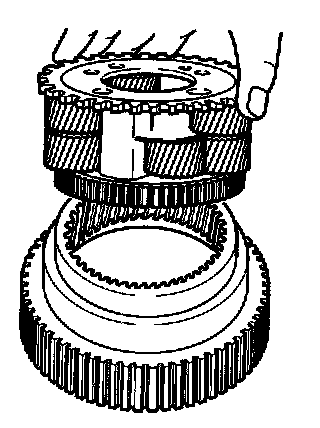

1. Assemble planetary carrier to inner race.

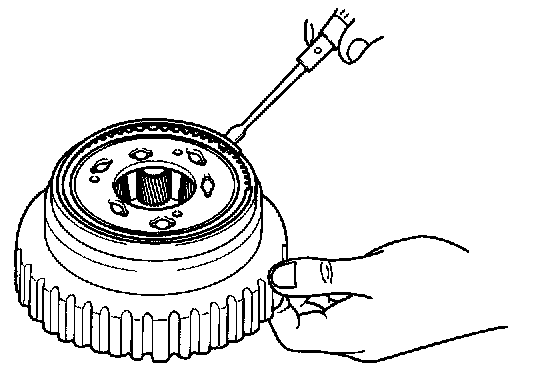

2. Install snap ring.
Notice: Install tangs of bearing race into alignment holes.

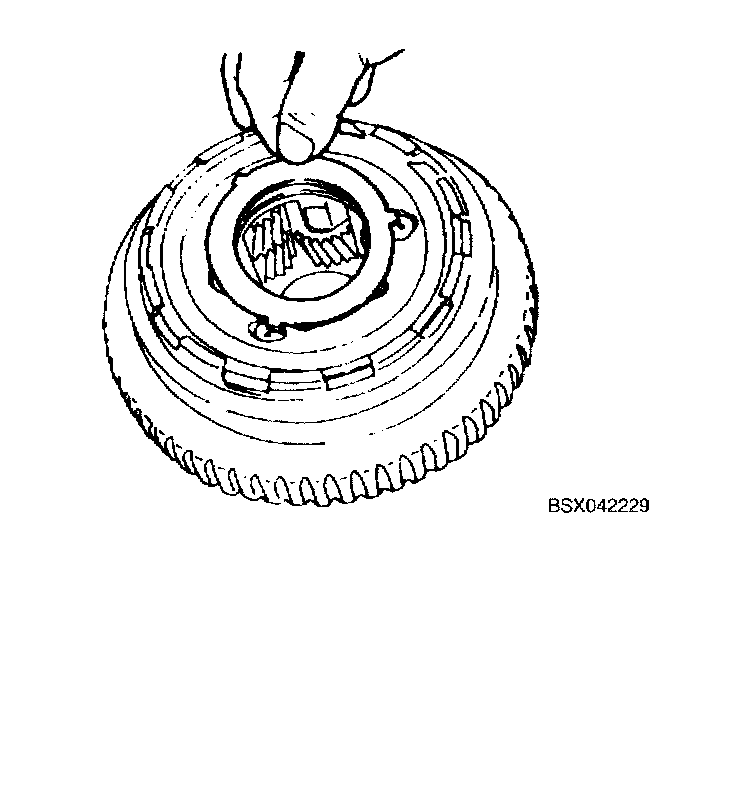

3. Apply petroleum jelly to bearing race and secure them to each side of one-way clutch No. 2 and planetary carrier assembly.
Bearing race outer diameter:
Sun gear drum side: 3.307 inch (84.0 mm)
