Windshield Washer Spray Nozzle: Adjustments

4 DOOR

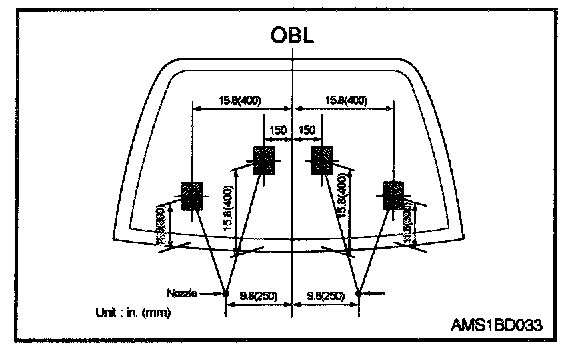

1. Spray should center on driver and passenger sides of front windshield. If off-line, adjust by slightly turning the nozzle.




2. If clogged or restricted, use a needle or wire to clear nozzle exit.

5 DOOR

Washer nozzle
1. Spray should center on driver and passenger sides of front windshield. If off-line, adjust by slightly turning the nozzle.




2. If clogged or restricted, use a needle or wire to clear nozzle exit.
