Windshield Washer Spray Nozzle: Description and Operation

4 DOOR

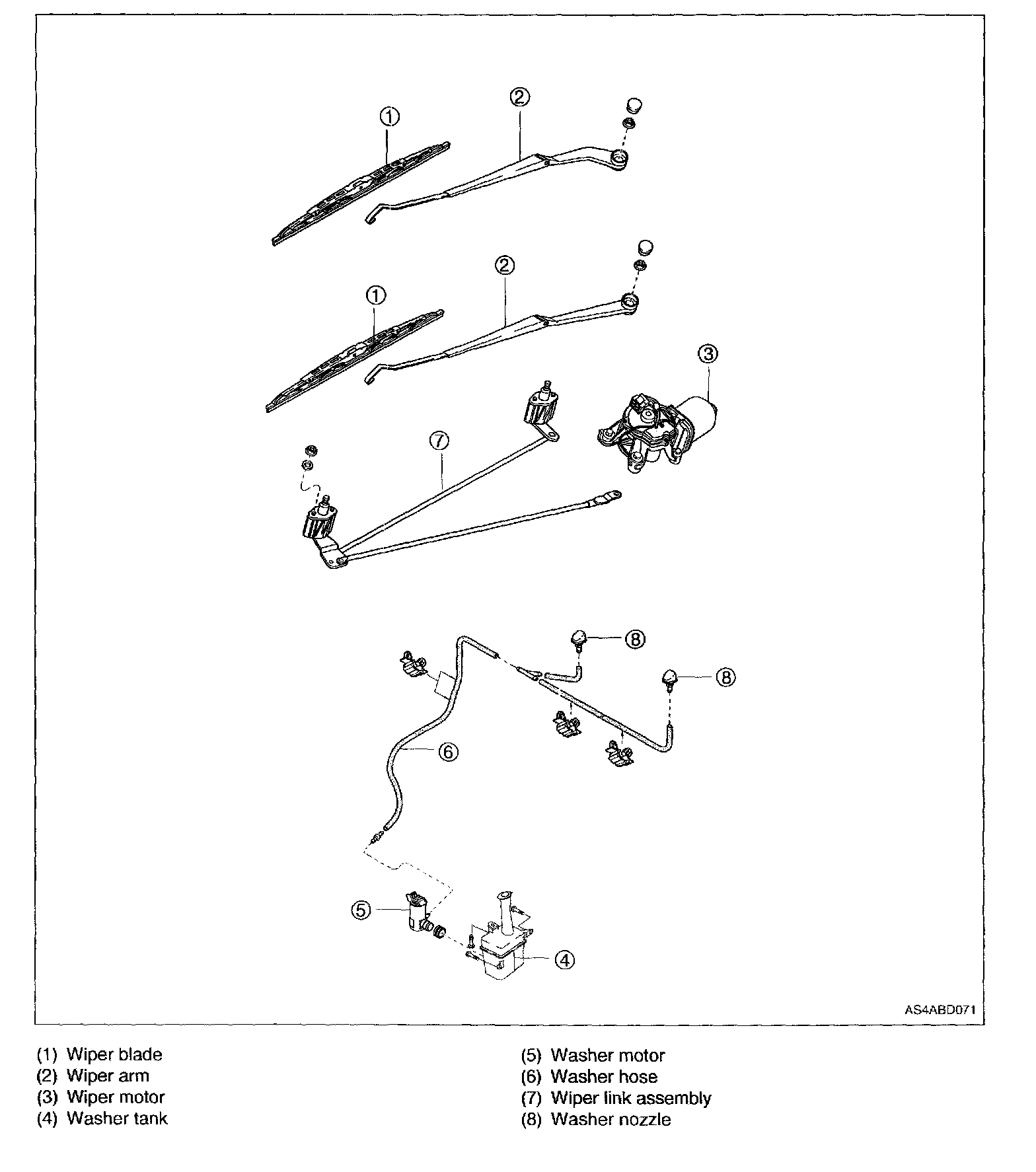

Windshield Wiper/Washer System:






Nozzles
Washer nozzles deliver washer fluid directly to windshield. Nozzles are replaceable as an individual item.

5 DOOR

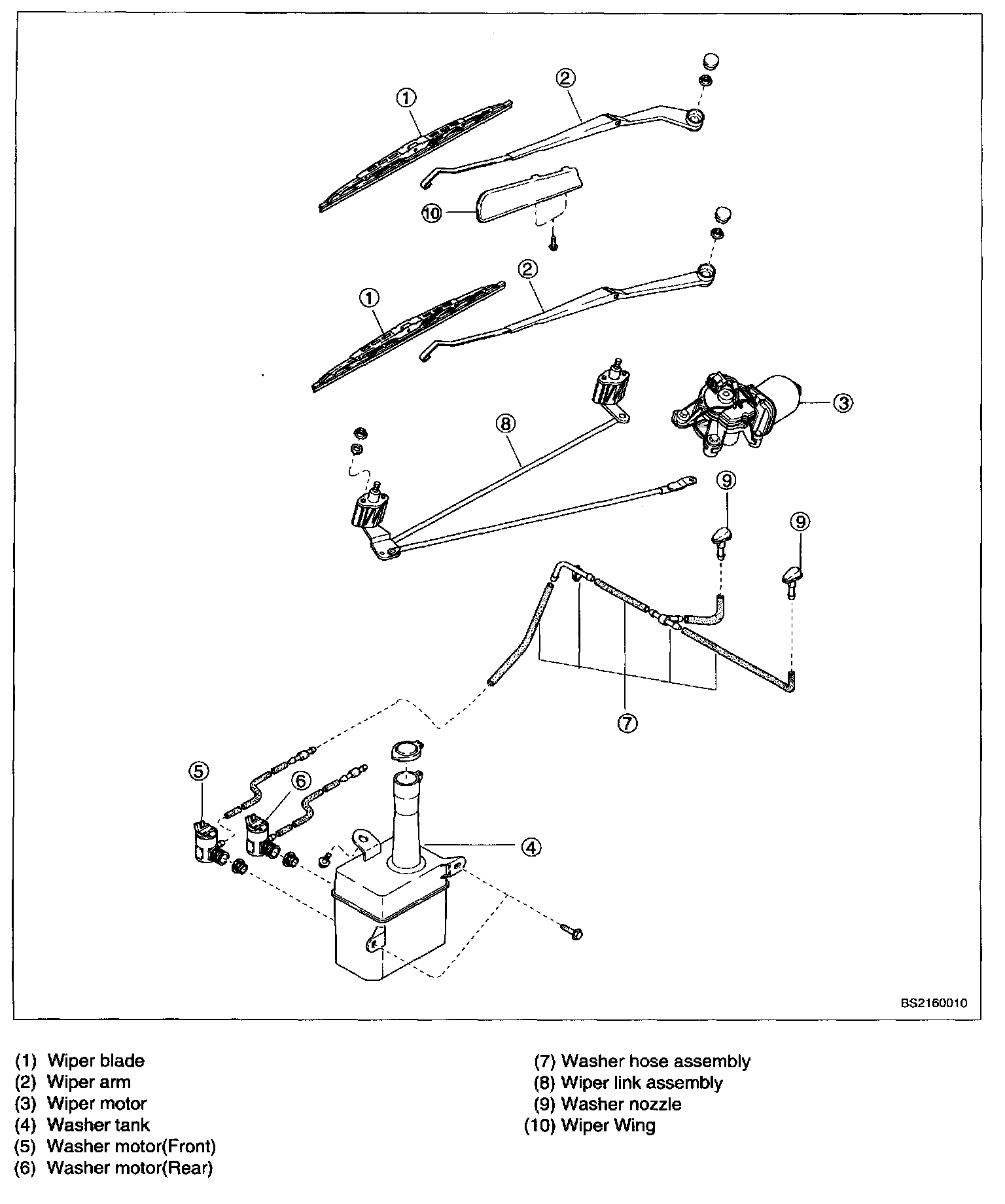

Windshield Wiper/Washer System (Front):






Nozzles / Front
Washer nozzles deliver washer fluid directly to windshield. Nozzles are replaceable as an individual item.

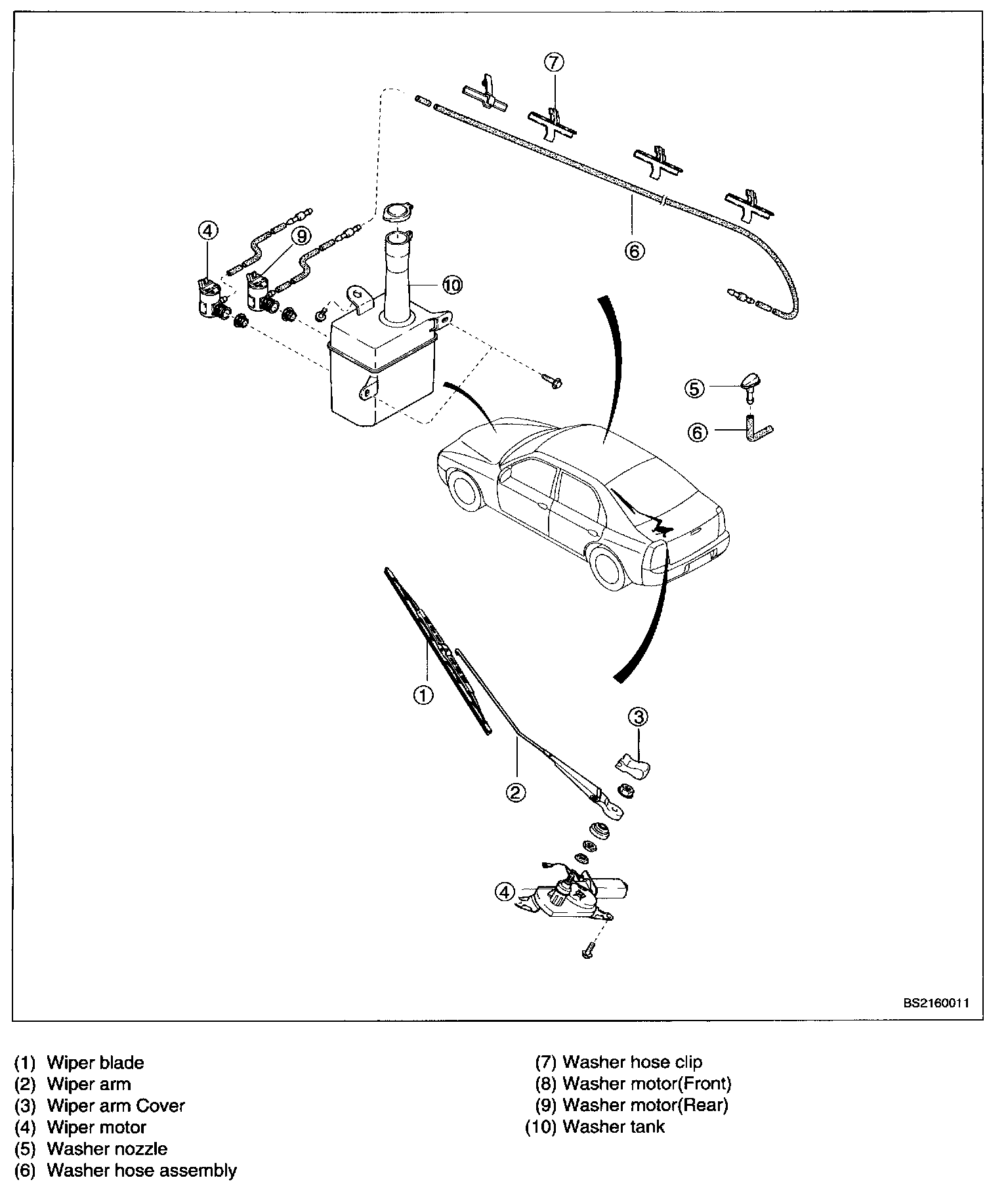

Windshield Wiper/Washer (Rear):






Washer Nozzle / Rear
The washer nozzle delivers washer fluid directly to the windshield. The nozzle is both adjustable and replaceable.
