Windshield Washer Spray Nozzle: Service and Repair

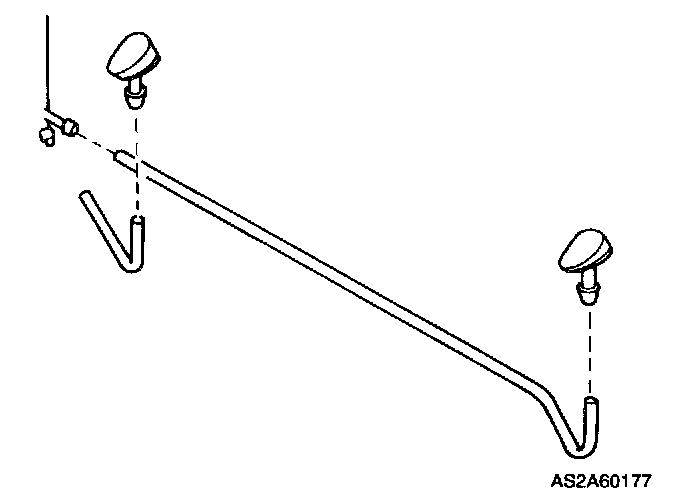

Washer nozzle

Removal
1. Release holding clip by inserting a thin screwdriver between nozzle and bushing.




2. Remove nozzle from hood and then disconnect nozzle from neoprene hose.

Installation
1. Connect nozzle to neoprene hose.
2. Face nozzle exit towards windshield and push in place on hood.
