Removal
REMOVAL 1.
Remove the lower crash pad.
2.

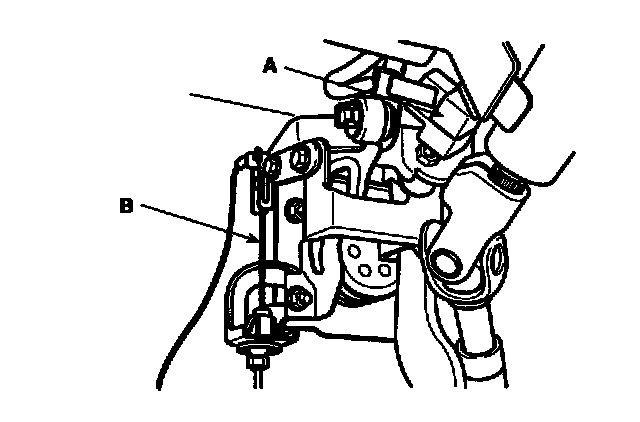

Remove the stop lamp switch connector
(A).
3.
Remove the shift lock cable
(B)(A/T).
4.
Remove the pin and snap pin.
5.
Remove the brake pedal member assembly mounting nuts and then remove the brake pedal assembly.
